TWOLF TW-715 V8 Engine Powered 1:10 Scale RC Off-road 4WD 4-Door Pickup Truck Vehicle Crawler Kit

TWOLF TW-715 1:10 RC Off-road Vehicle Crawler 4WD Four-door Pickup Truck with V8 Engine (No Electronic Equipment) – KIT Version

Features:

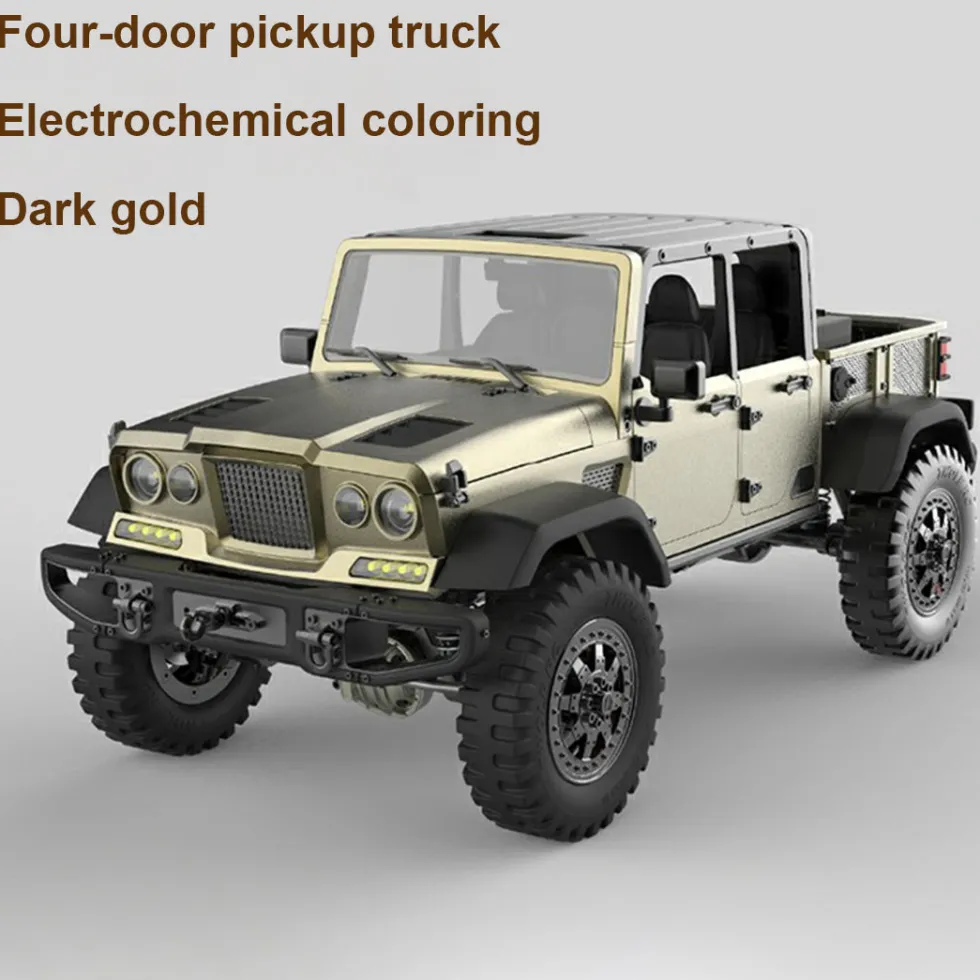

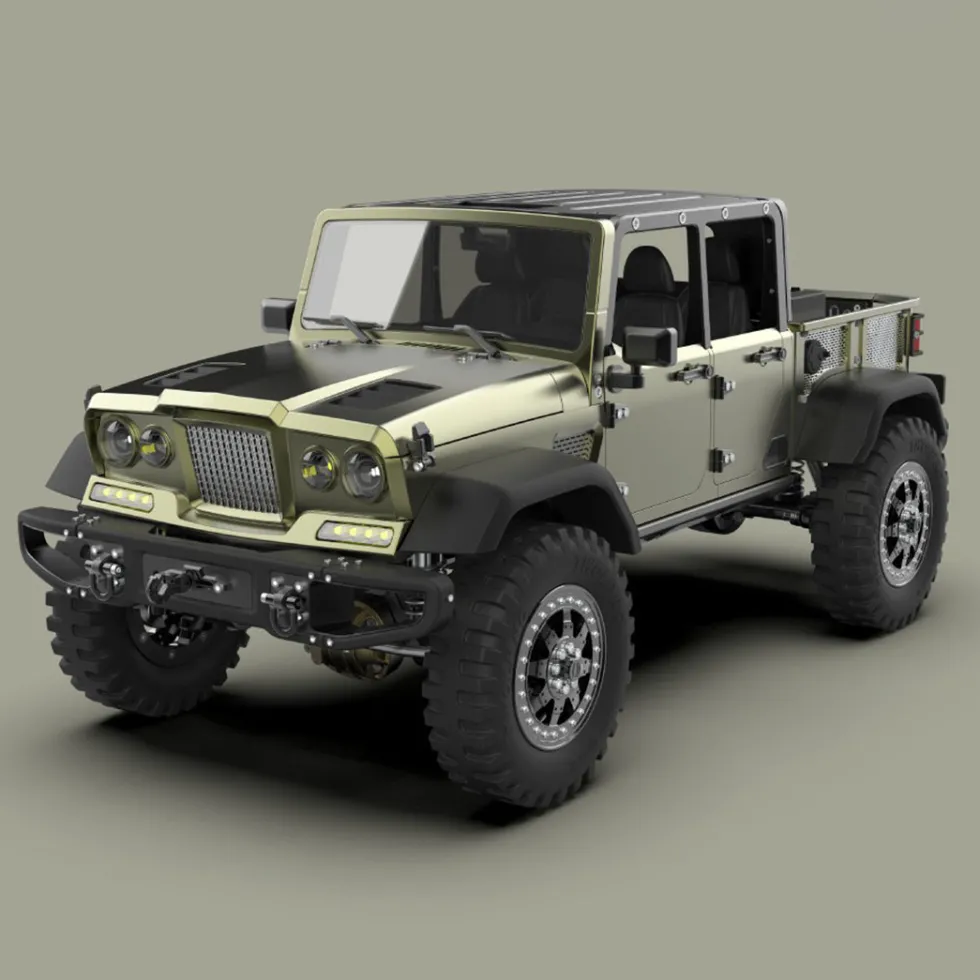

.The four-door pickup truck has a beautiful appearance and is electrochemically colored.

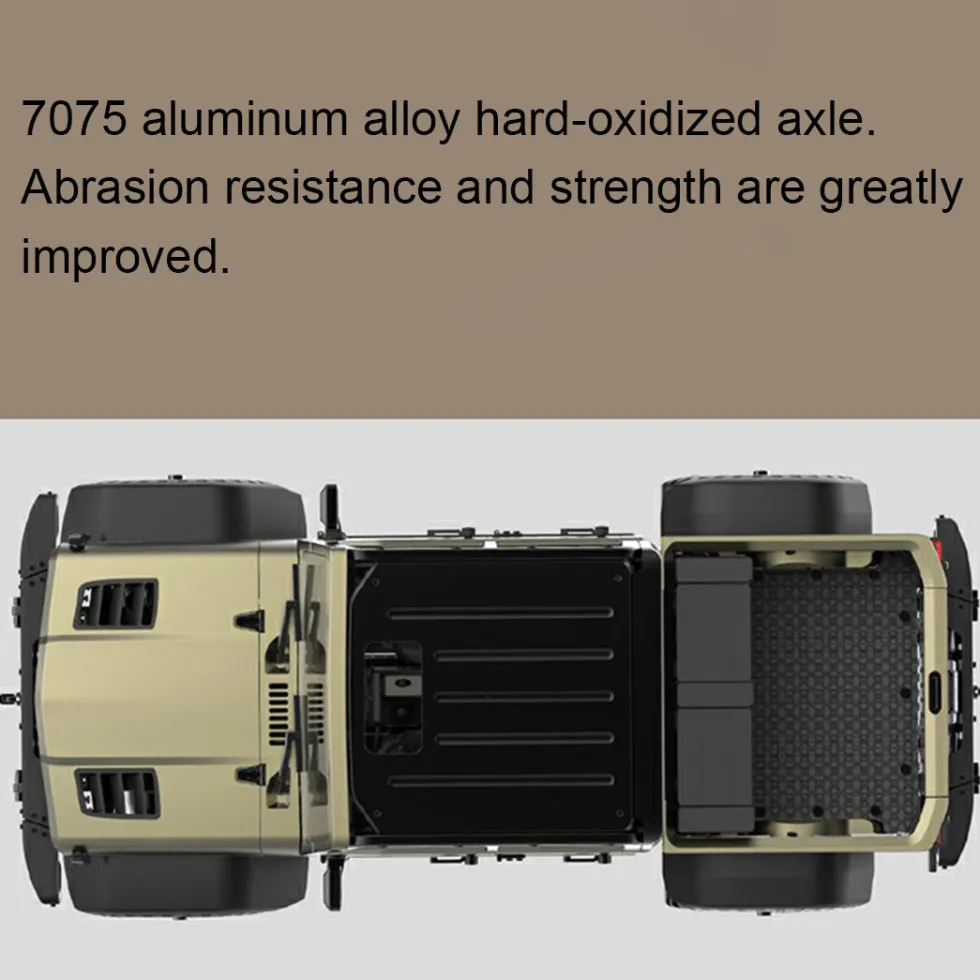

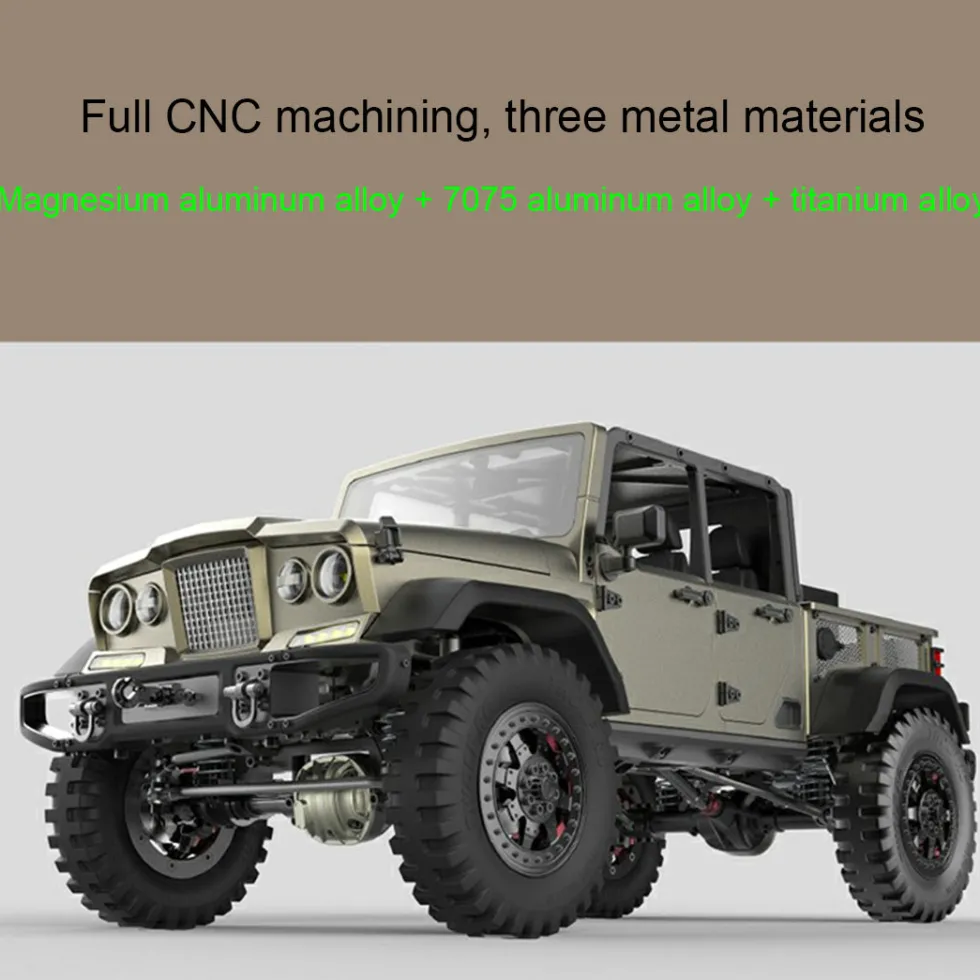

.Using all-metal CNC machining, magnesium aluminum alloy + 7075 aluminum alloy + titanium alloy, 7075 aluminum alloy hard-oxidized axles, the wear resistance and strength are greatly improved.

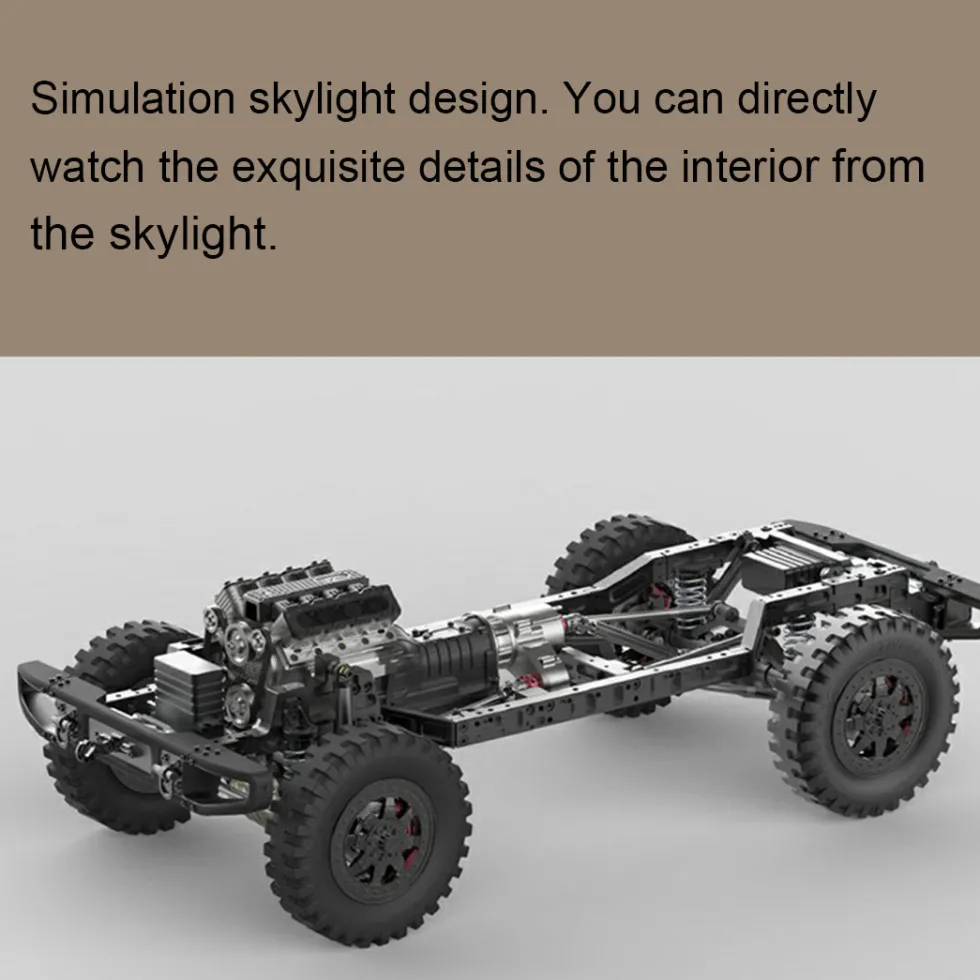

.Simulated skylight design, you can directly watch the exquisite details of the interior from the skylight.

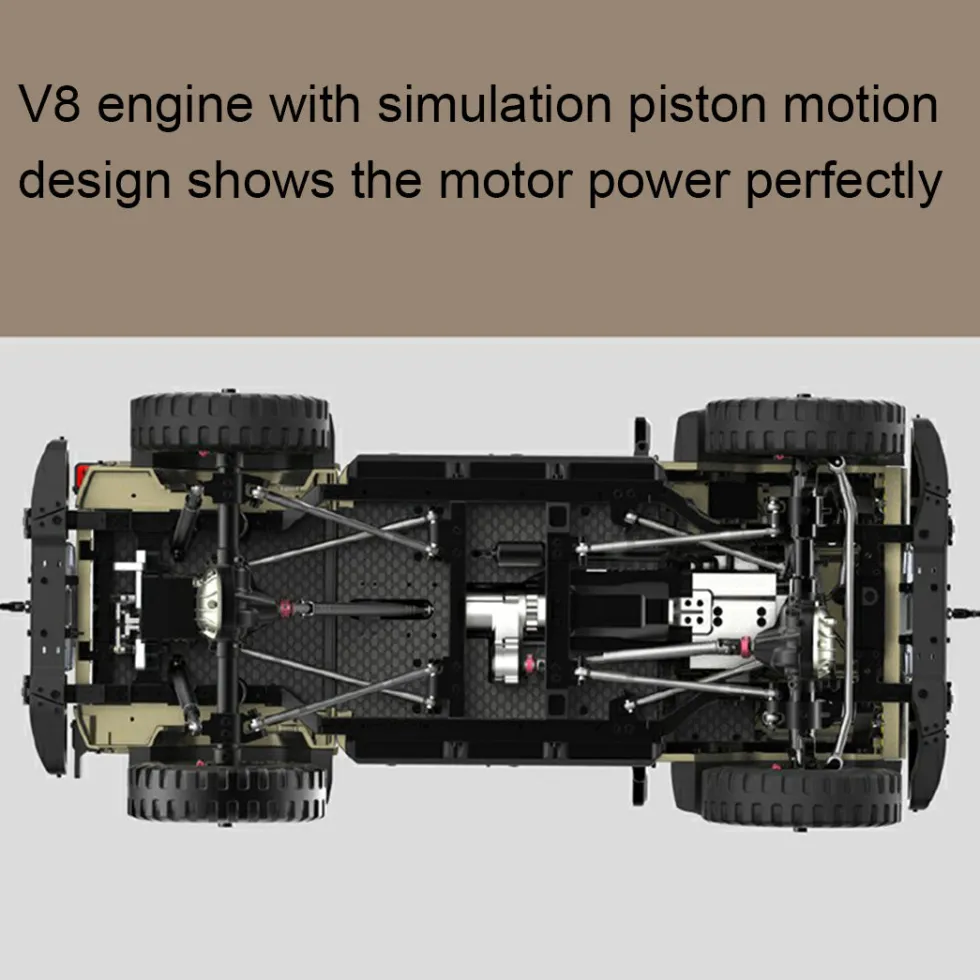

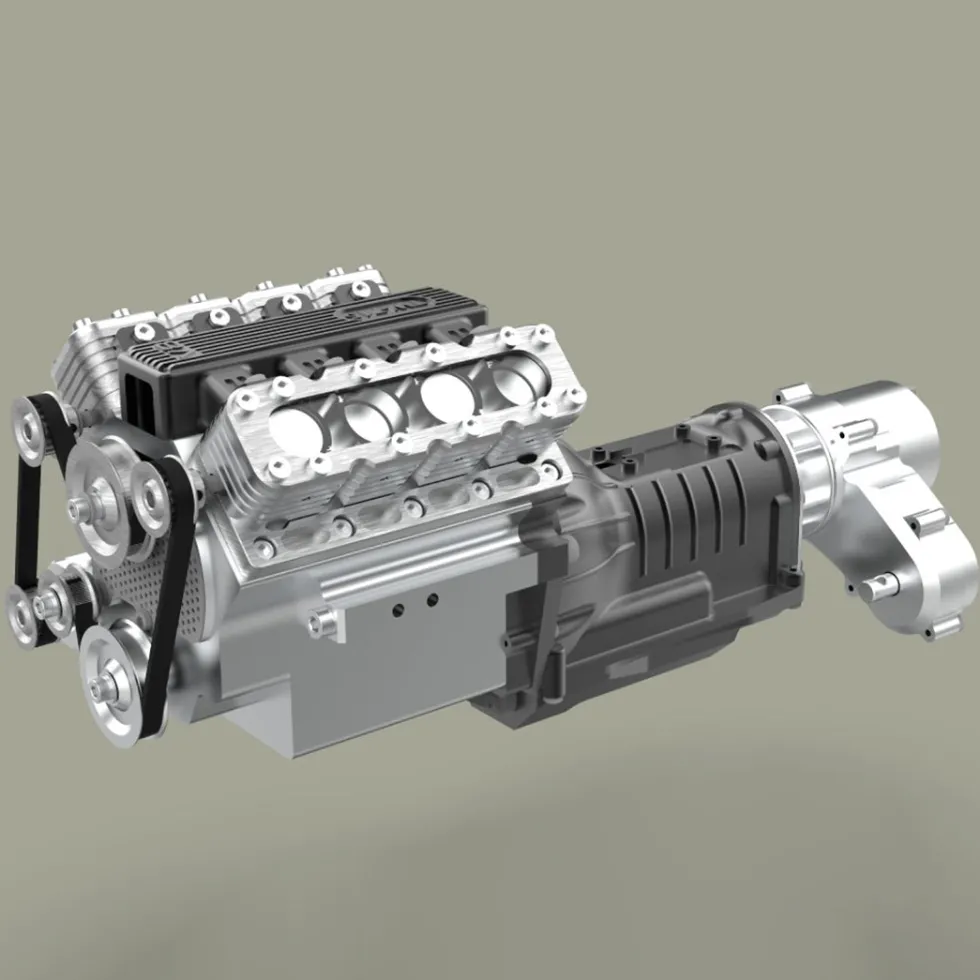

.Simulated piston motion design, the V8 engine allows the motor power to be displayed perfectly.

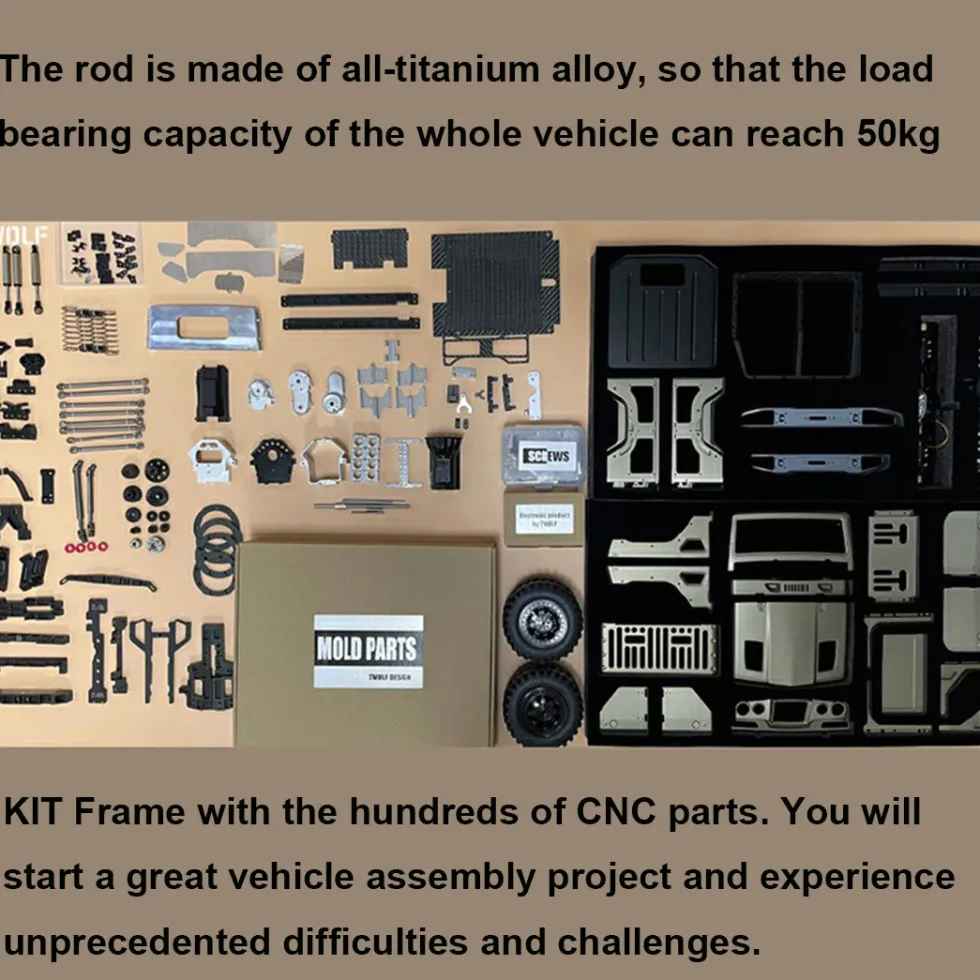

.The all-titanium alloy makes the tie rod, so that the load-bearing weight of the vehicle can reach 100 kg.

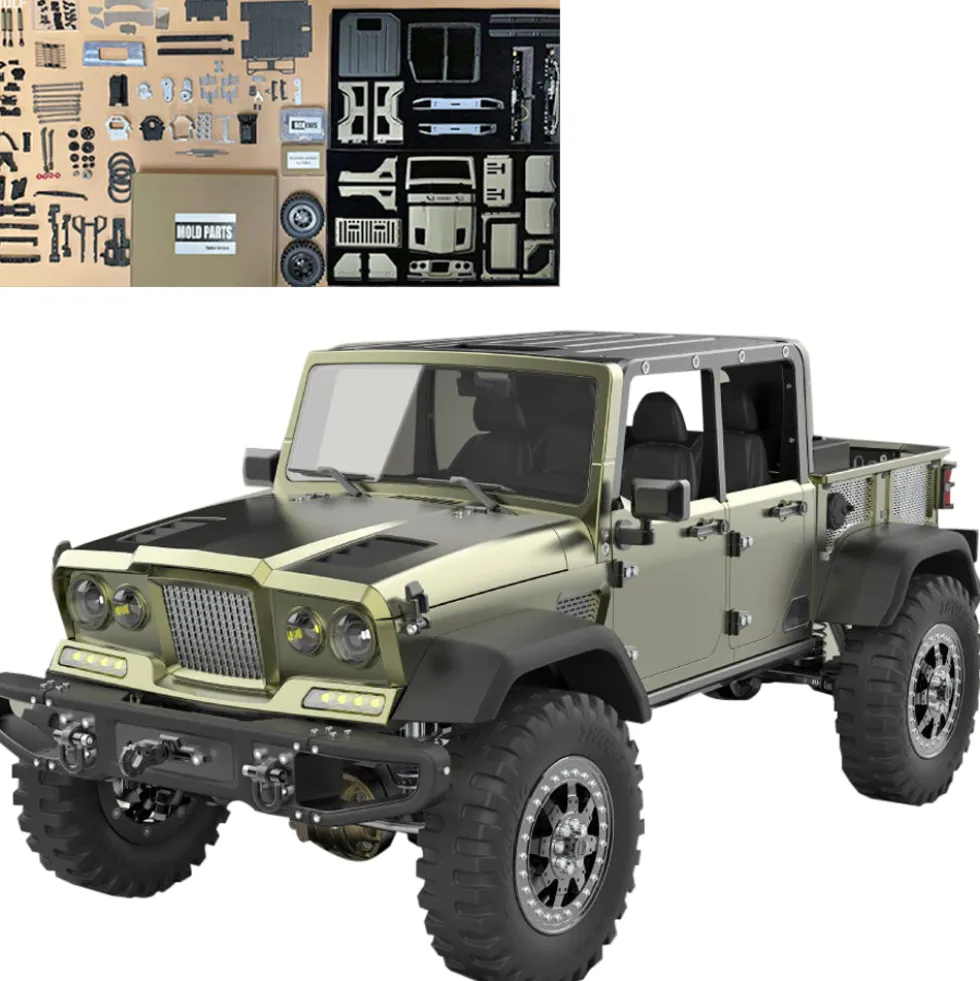

.KIT version, the combination of hundreds of CNC parts, you will start a great assembling vehicle project, feel the unprecedented difficulty and challenge.
.The vehicle is designed with complete functions and strong playability. Whether it is off-road or climbing mode, it will bring you a brand new driving control experience.
.At the same time, it is also a beautifully decorated car model suitable for collection.
.This car does not have electronic equipment, you need to prepare it by yourself. If you have any questions, please contact us in time.
.Note: You need to assemble it by yourself
.For Ages: 14+

Specifications:

.Color: As Shown
.Material: Alloy
.Brand: TWOLF
.Scale: 1:10
.Assembly Type: KIT (excluding electronic equipment)
.Weight: 5.85kg (excluding OP and electronic equipment lamp set)
.Wheelbase: 332mm
.Ground Clearance: 75mm (minimum distance)
.Approach Angle: 49.5°
.Departure Angle: 35°
.Wheel: 2.2 inches
.Tires: 115mm in diameter and 35mm in thickness
.Adapt to Road Surface: Stone road, hard soil road, paved road
.Gearbox: 1 N 2 (low gear, high gear, neutral gear)
.Broken Transmission: Front axle broken transmission (rear axle power output)
.Differential Speed: Synchronous differential speed of front and rear axles
.Drive Mode: Electric drive
.Four-wheel Drive Mode: Time-sharing four-wheel drive

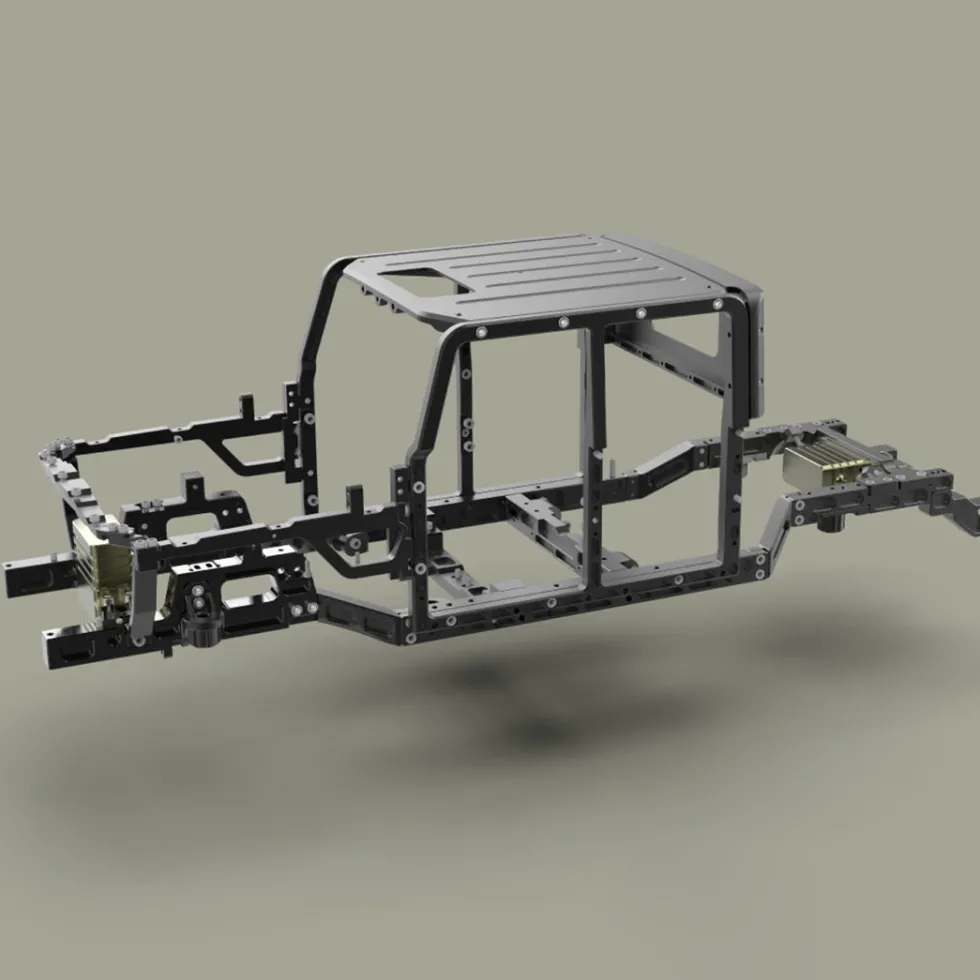

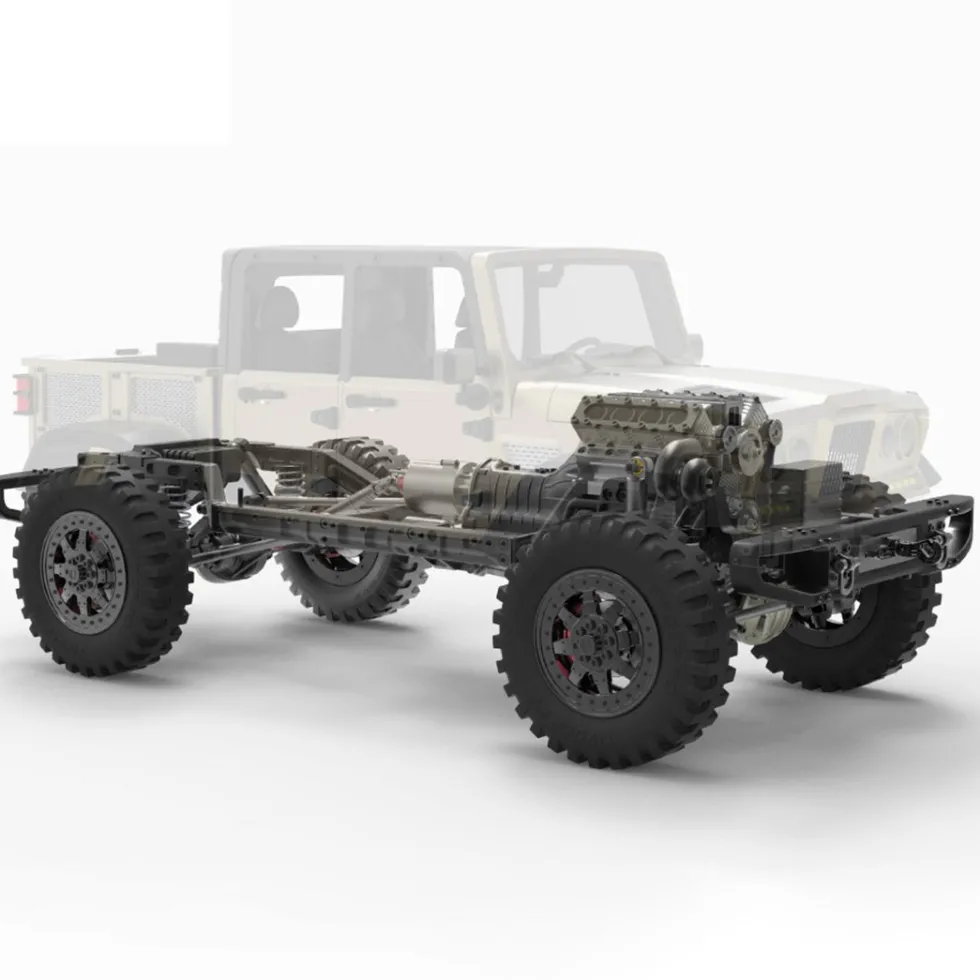

.Chassis structure: straight bridge 8 link
.Front and Rear Axles: Independent straight axles, support differential lock
.Motor: 540 brushed motor is recommended (the length should not exceed 60mm)
.ESC: HW 1080 waterproof ESC is recommended
.Gear Steering Gear: 9g steering gear is recommended x 1
.Transmission Servo: 9g servo is recommended x 1
.Steering Wheel Electronic Steering Servo: 9g servo is recommended*1
.Front Steering Steering Gear: Recommended standard steering gear*1 (about 50KG)
.Differential Lock Servo: Recommended standard servo x 1 (about 20KG)
.Engine Type: V8 piston motion simulation engine
.Linkage Mode: Geared motor synchronous wheel linkage
.Remote Controller: 6CH and above remote control is recommended
.Car Battery: 11.1V 3S lithium battery is recommended

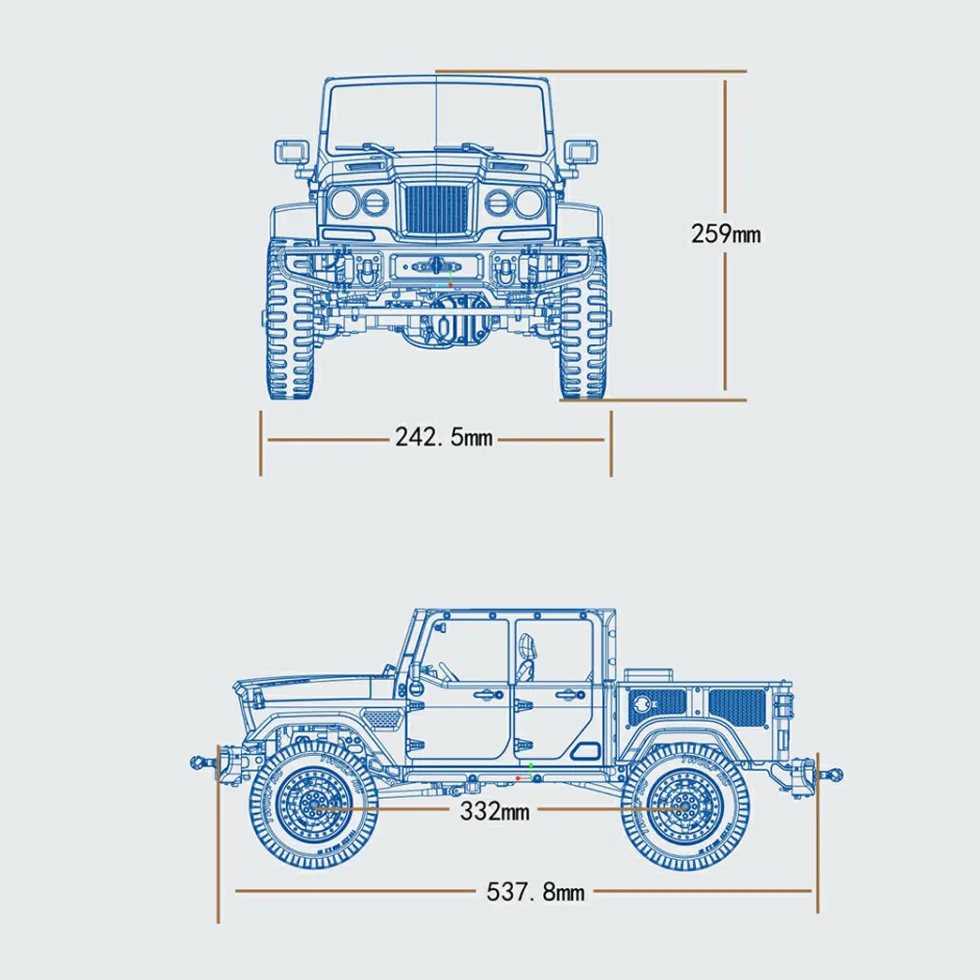

.Product Dimensions: 53.78 x 24.25 x 25.9cm
.Product Weight: 5850g
.Package Dimensions: 63 x 38 x 22.3cm
.Package Weight: 7000g
.Packing: Carton Box

Package Content:

.1Set x DIY Assembly Car Kit
.1 x User Manual
