CISON V8 Engine LS-52 Small-block 52CC 1/5 Water-Cooled 4-Stroke 8-Cylinder Gasoline Engine Internal Combustion V8 Engine Model Kit that Works

CISON V8 Engine LS-52 Small-block 52CC 1/5 Water-Cooled 4-Stroke 8-Cylinder Gasoline IC V8 Engine Model Kit that Works – Build Your Own V8 Engine

🔥 Flash Deals Info. 🔥

🚨 March 20-April 20: Save $300 OFF, Only $2199.99！

🚨 Notice: Ignition accessories not included!!!

💡 Warm Tips 💡:

✅ Buy First, Enjoy First: CISON LS-52 V8 Engine is now available for pre-sale!
✅ Good Quality Takes Time: We’re committed to perfecting every detail before shipment. Thank you so much for your patience and continuous support ❤️
✅ Delivery Notice: All orders will be shipped in mid-April 2026.🚚
✅ For more details, feel free to email us at: 📧
🥳Thank you so much for your interest and support!

Product Information:

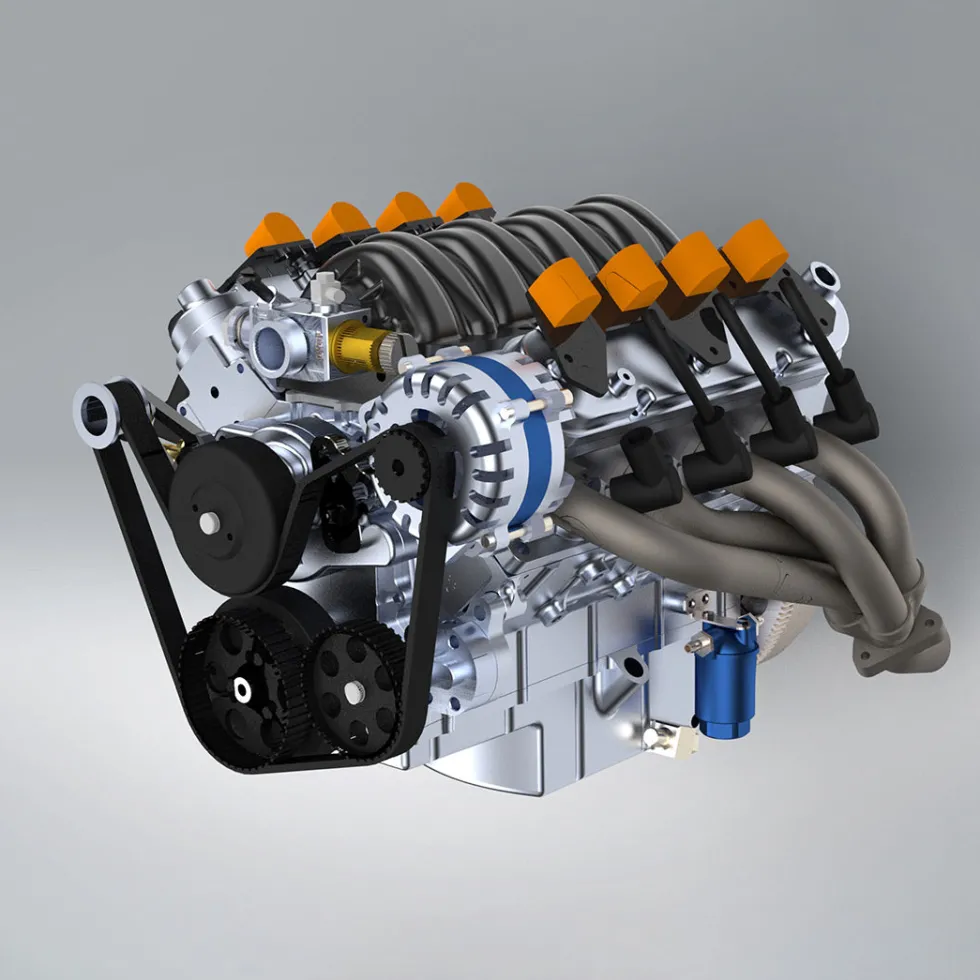

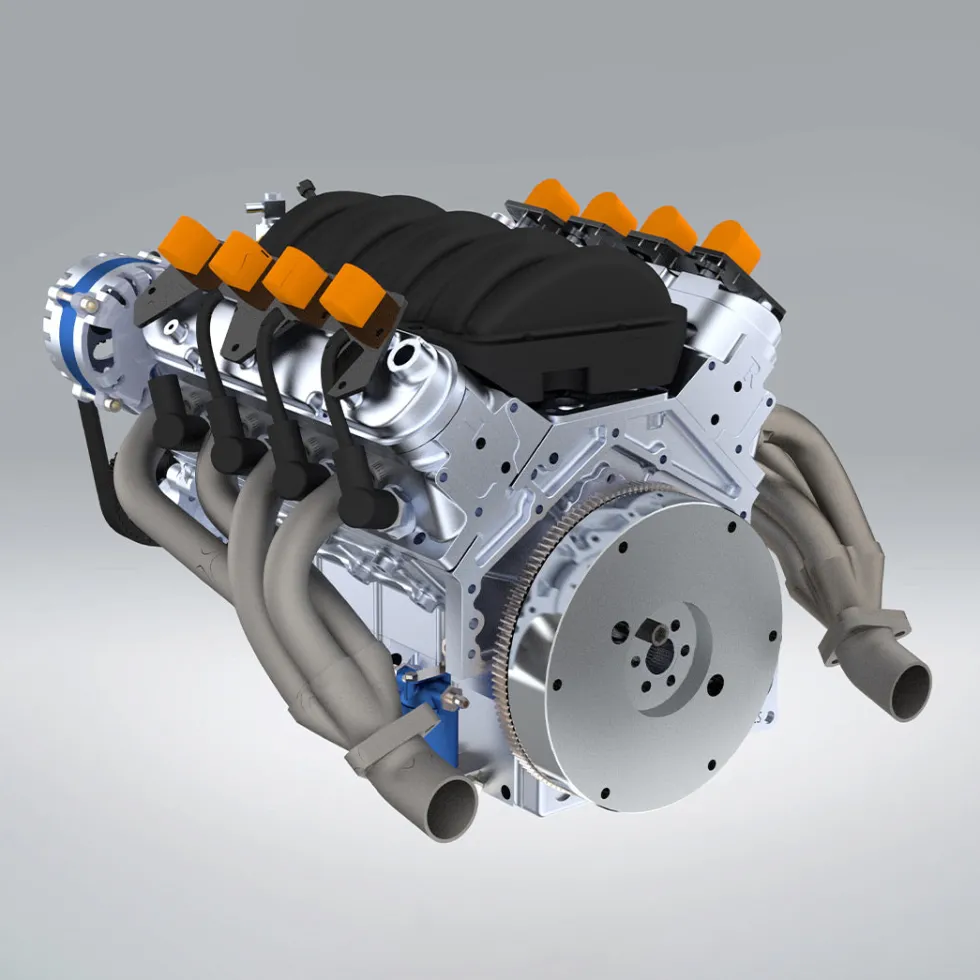

CISON LS-52 V8 engine model kit is a 1/5 scale 52cc working four-stroke gasoline internal combustion engine with water cooling, pressure lubrication, dual needle carburetor, and precision mechanical assembly design.

Immersive DIY Mechanical Assembly:

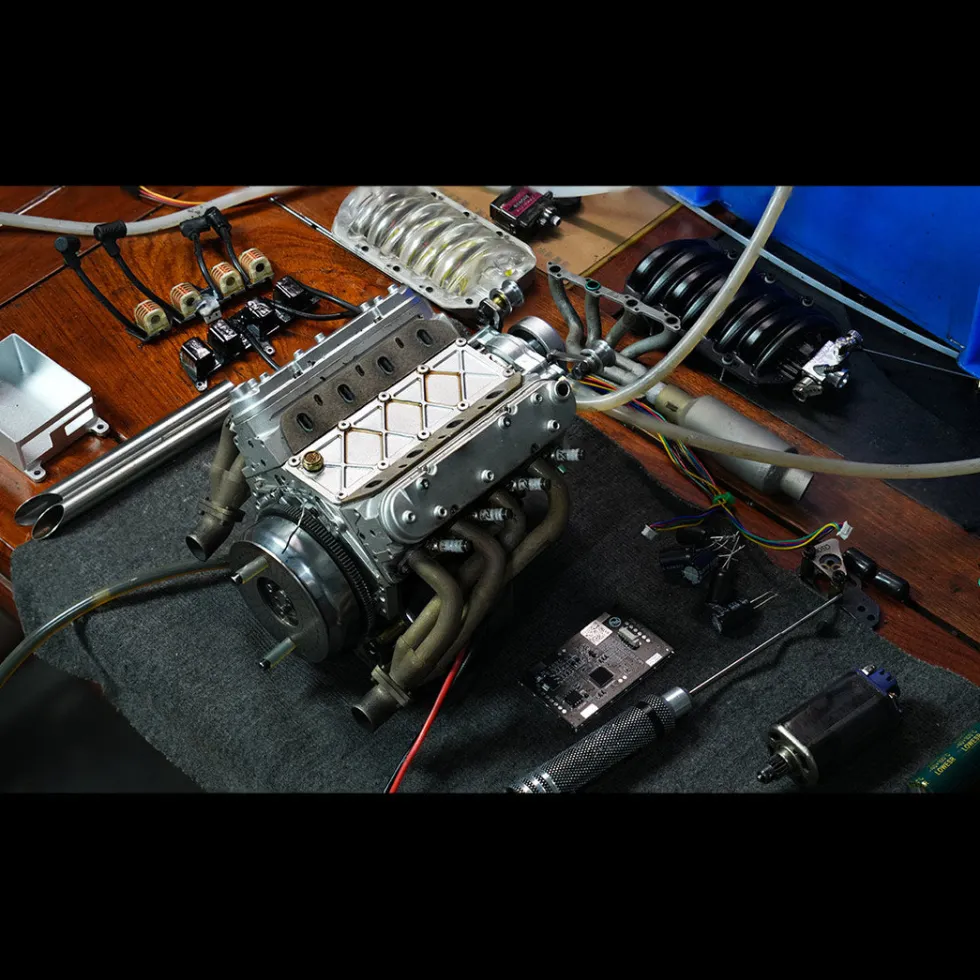

High-precision components combined with a structured manual allow in-depth assembly of a working V8 engine model. The build process reveals internal mechanical structures and operational principles while forming a functioning engine system.

LS-V8 Inspired Structural Design:

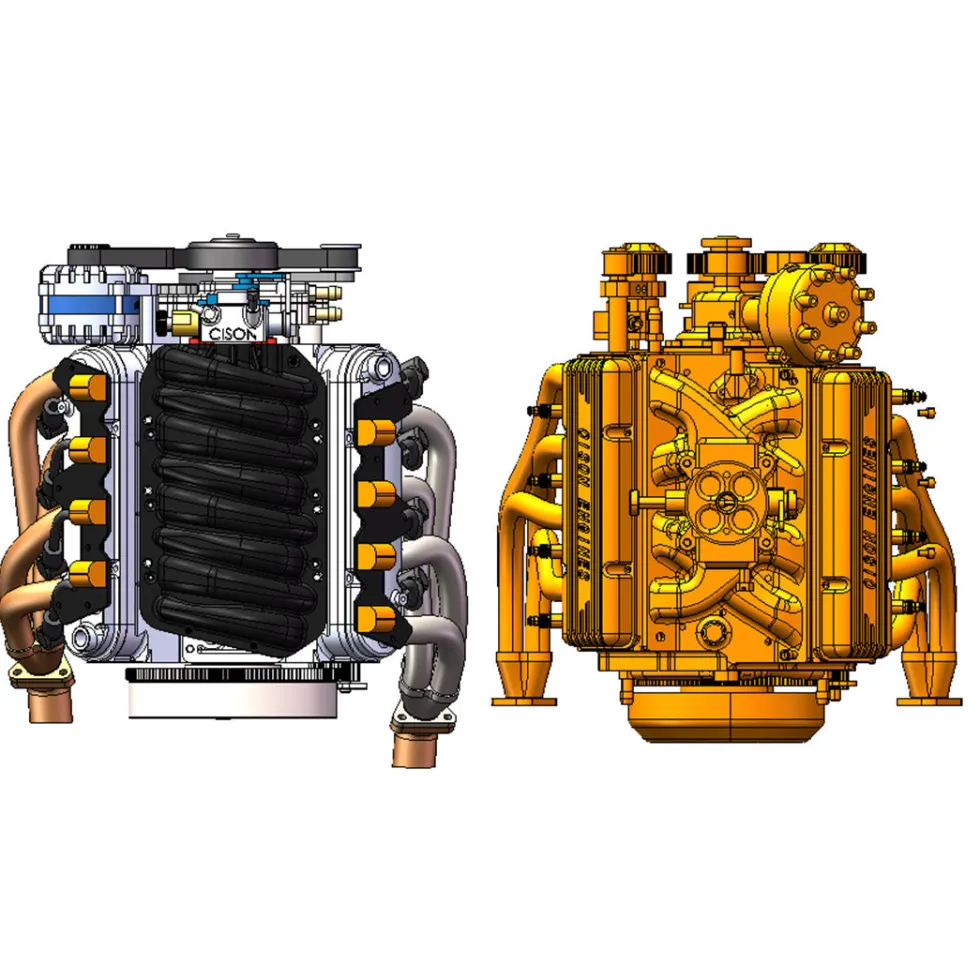

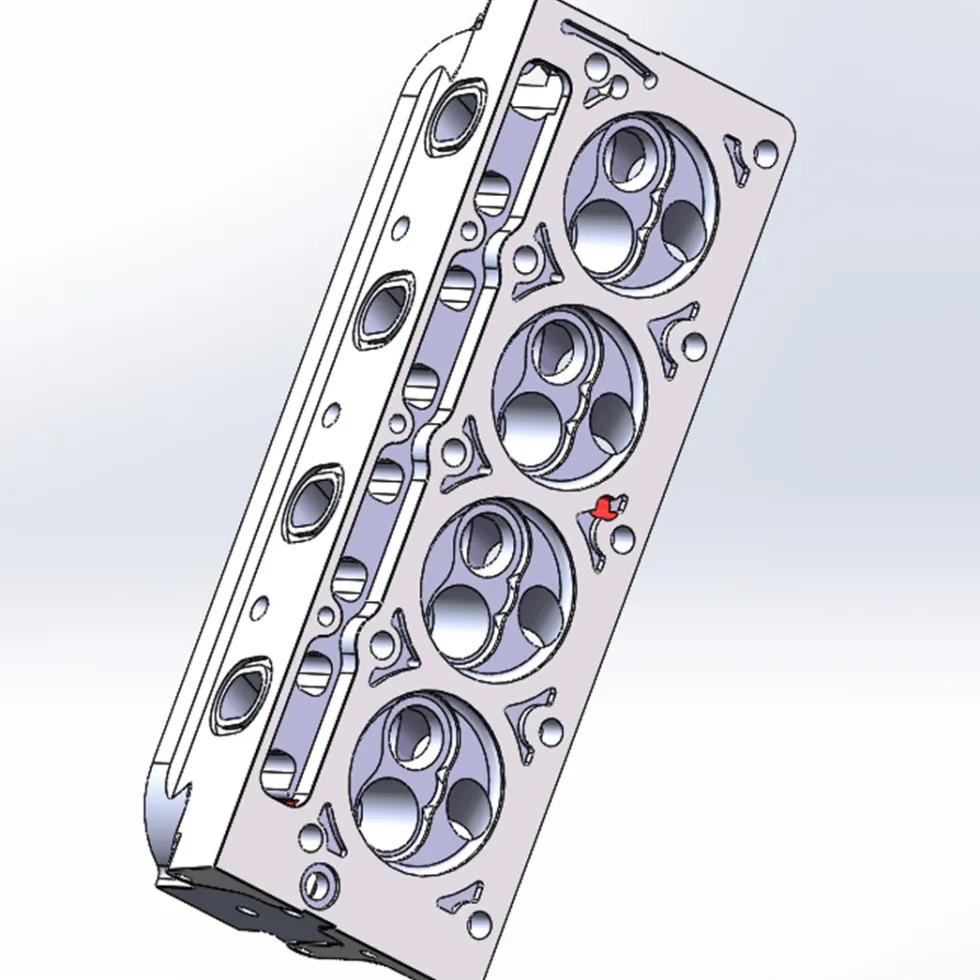

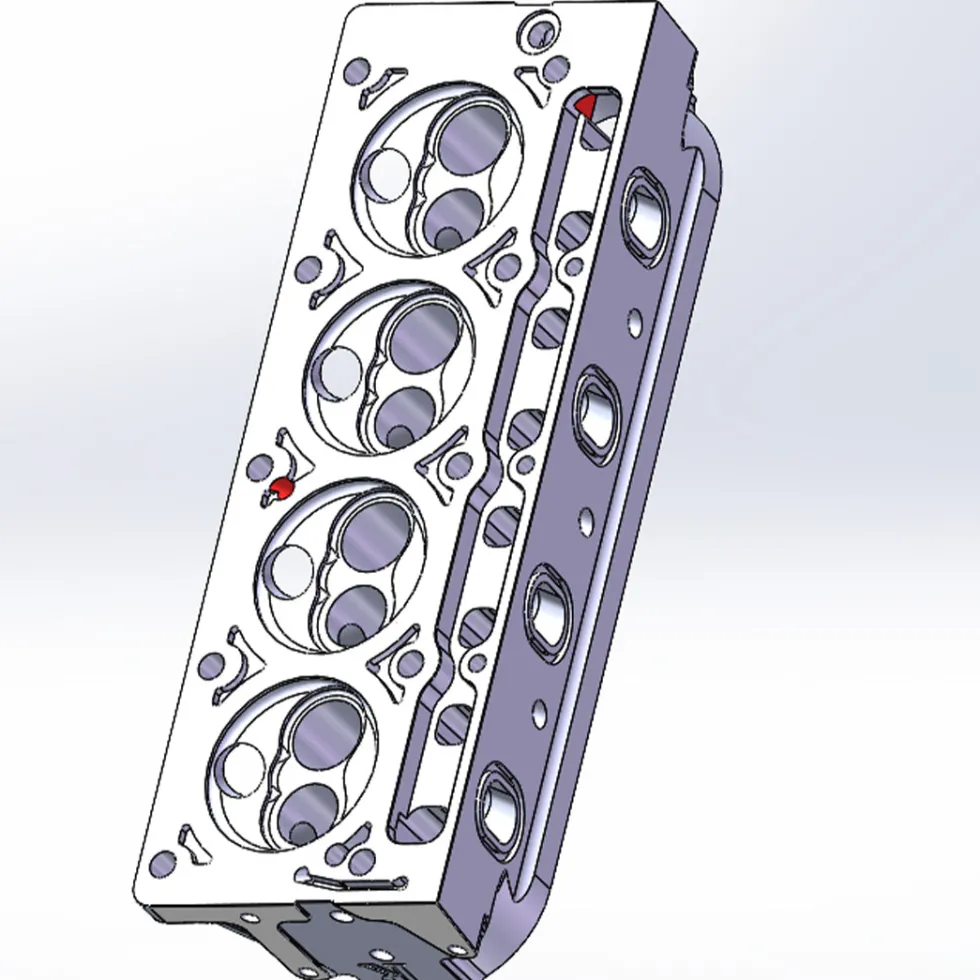

Based on the classic LS-V8 layout, the model features water-cooled cylinder heads and an integrated water pump structure without exposed hoses. The design includes a reserved generator mounting position and maintains the appearance of a realistic engine architecture.

Advanced Pressure Lubrication System:

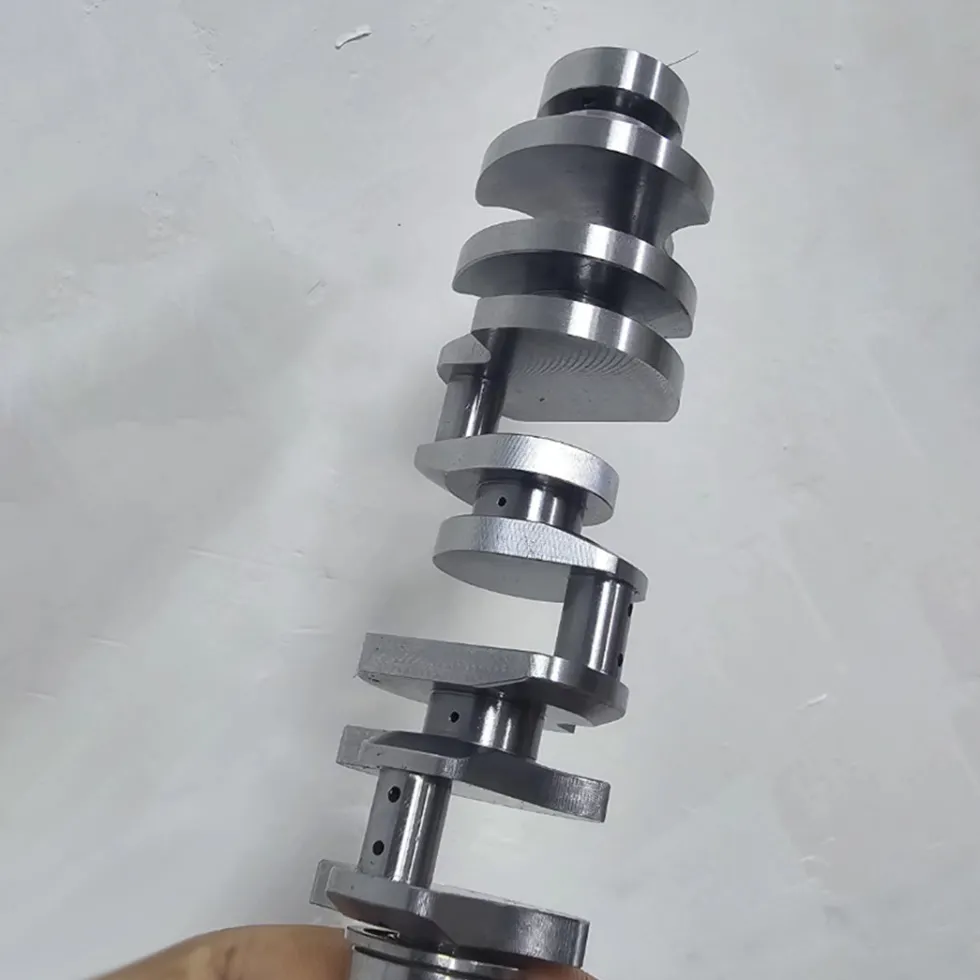

Crankshaft bearings and connecting rods include oil lubrication holes enabling pressure lubrication. Rocker arms contain adjustable oil flow channels, while the three-ring piston design assists oil control and stable operation across a wide RPM range.

Precision Internal Structure:

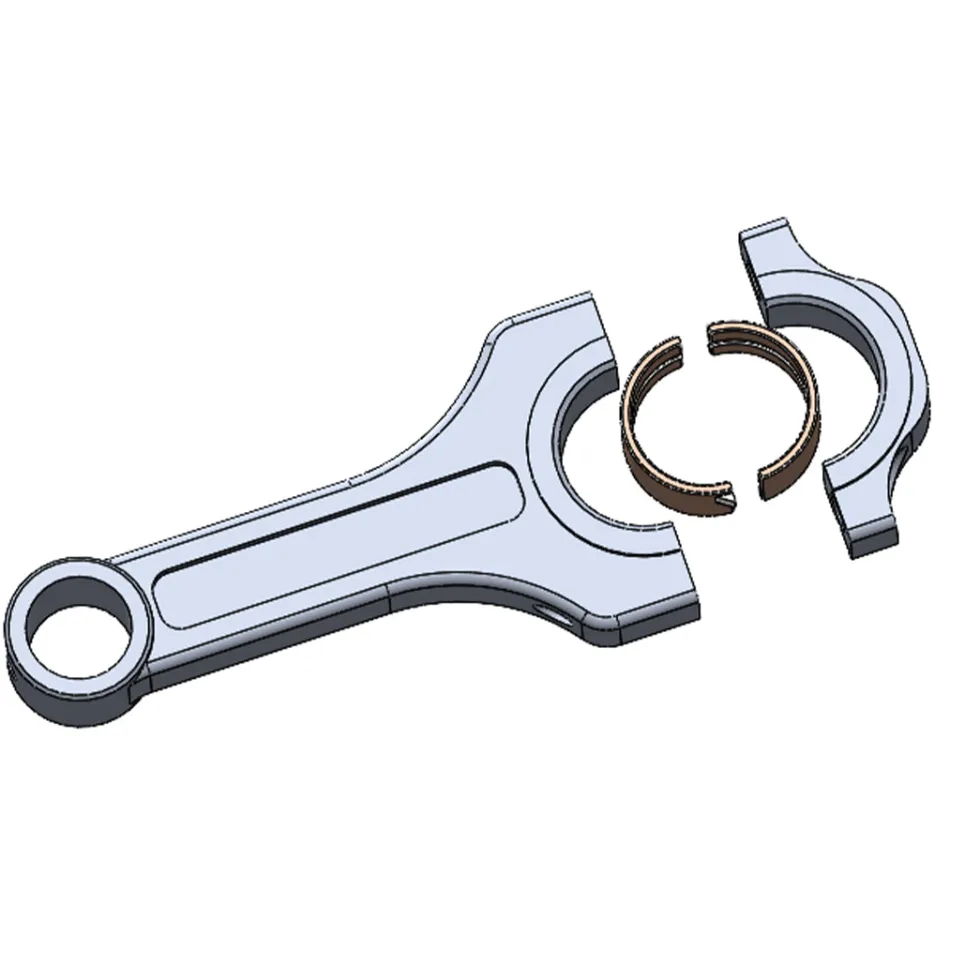

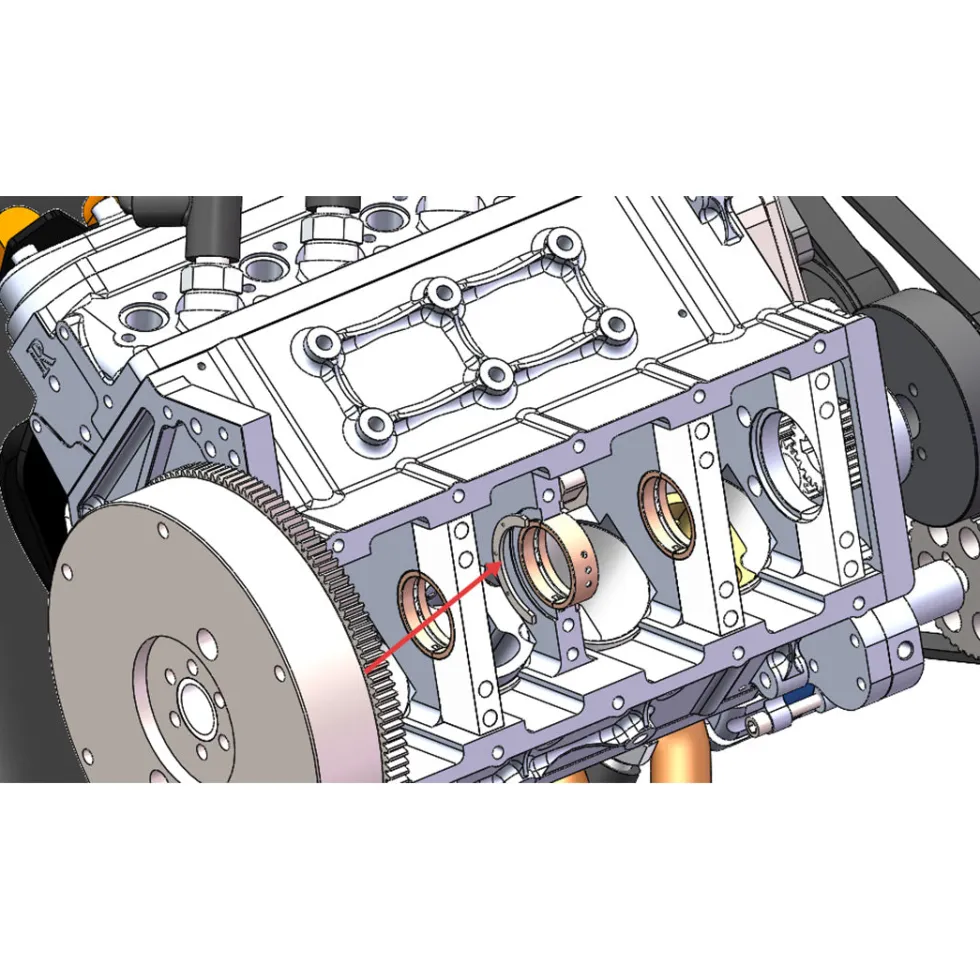

Thrust plates in the crankshaft and cylinder block help limit axial movement. Aluminum alloy connecting rods include replaceable bearing sleeves, while intake and exhaust valves combine oil seal to maintain cylinder sealing and consistent output.

High-Performance Engine Components:

The engine includes a dual-needle 6mm carburetor that improves fuel atomization. A 3D-printed stainless steel exhaust pipe complements the mechanical layout. The system operates within a 1600-12500 RPM range and supports MCU ignition configuration (ignition accessories not included).

More Details:

.Material: Metal
.Color: Silver/Red
.Brand: CISON
.Model: LS-52
.Name: LS V8 Gasoline Engine Model

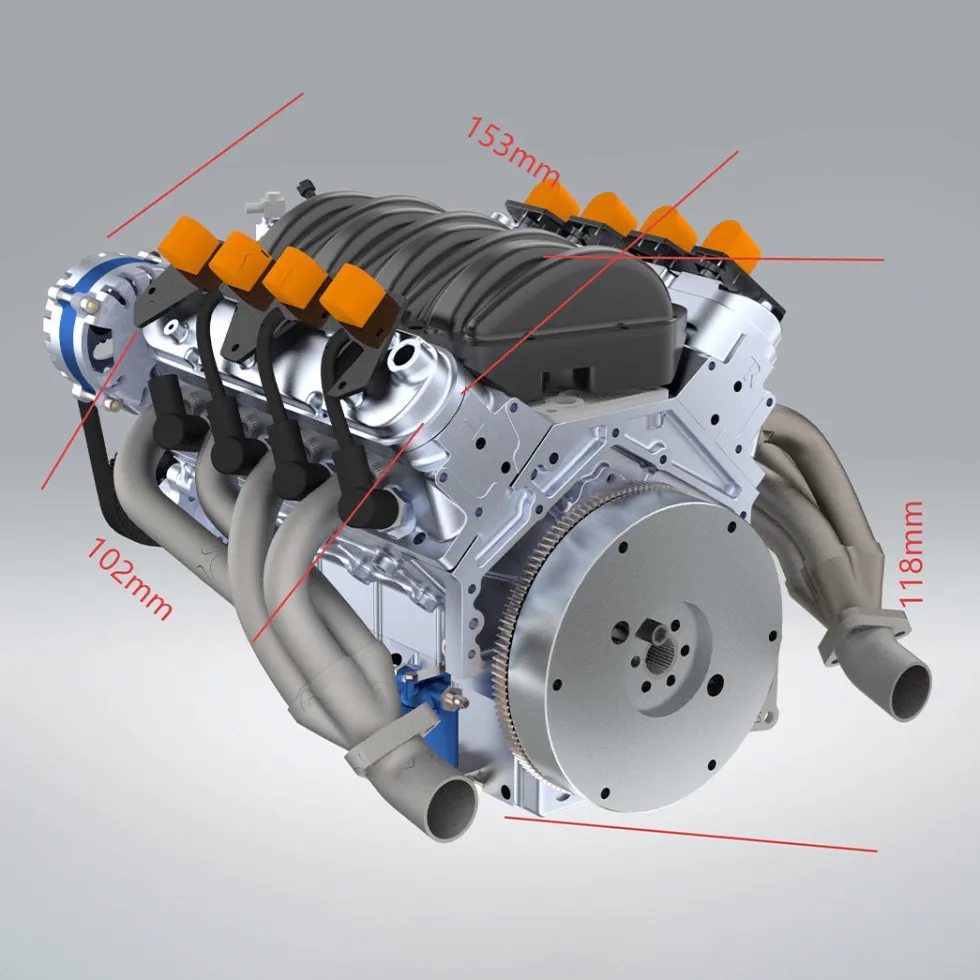

.Dimensions: 153×118×102mm
.Form: Kit Version
.Engine Type: Gasoline Internal Combustion Engine
.Valve Mechanism: Overhead Valve (OHV)
.Displacement: 52cc (8*6.5cc)
.Cylinder: V8
.Stroke: Four-stroke
.Bore: 20.0mm
.Stroke: 20.5mm
.Speed: 1600-12500rpm
.Power: Approx. 6ps
.Cooling Method: Wet Water Cooling
.Starting Method: Motor Start

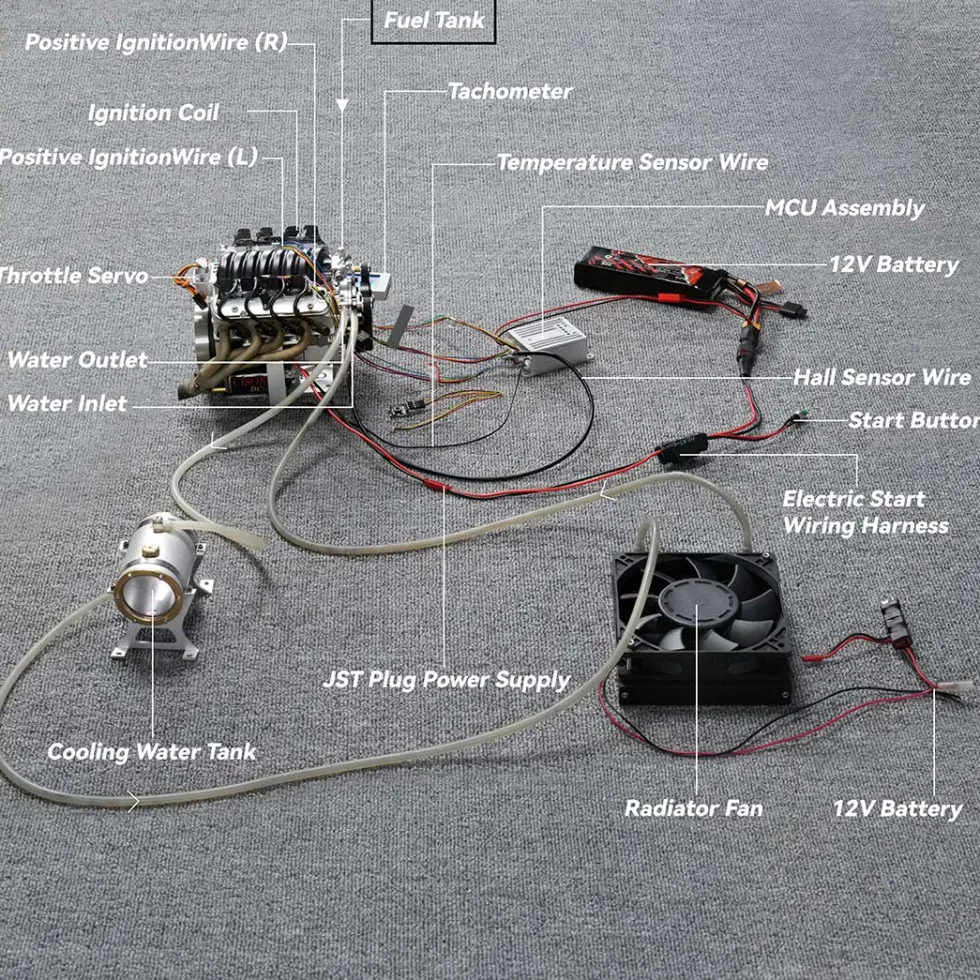

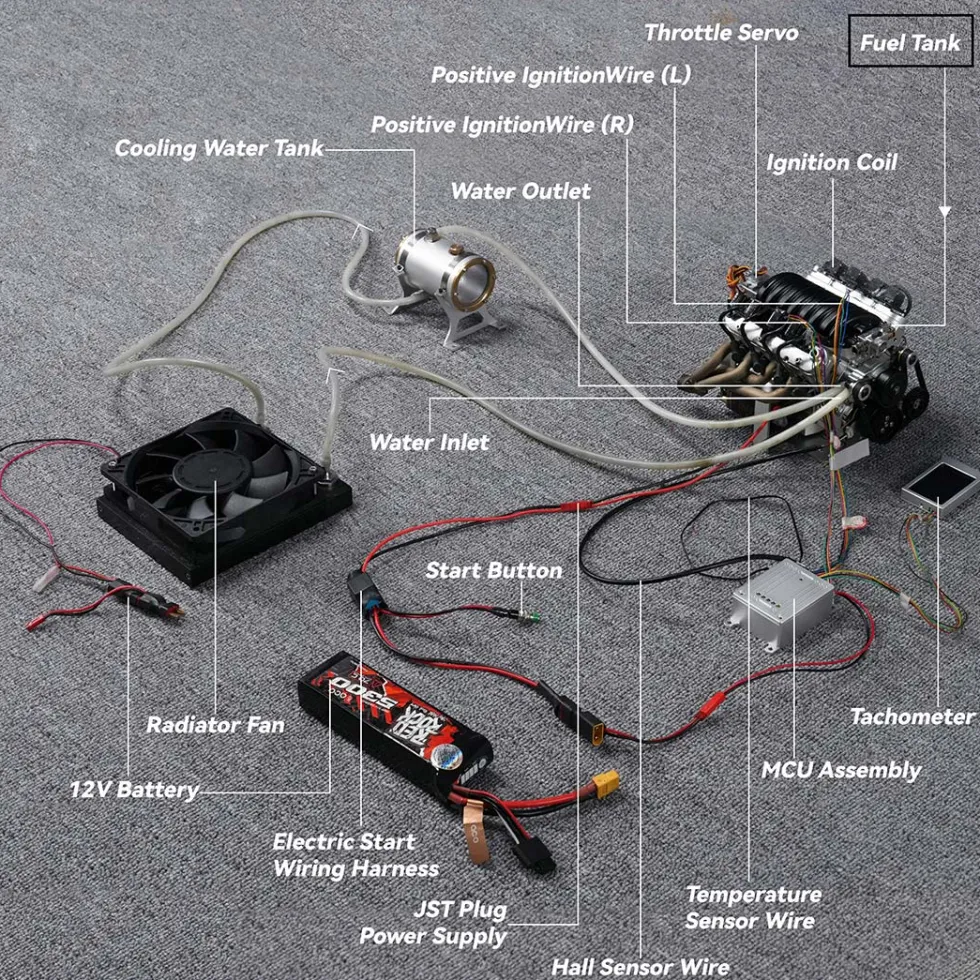

.Ignition Method: MCU ignition (not included)
.Spark Plugs: 8 x 1/4-32 dedicated spark plugs (not included)
.Starting Power: 12V battery (not included)
.Lubrication Method: Independent lubrication system (oil filter not included)
.Fuel: 92# gasoline (92# or higher recommended)
.Engine Oil: 4T engine oil (10W50/25mL recommended)
.Product Weight: 1700g
.Package Weight: 3300g
.Product Dimensions: 15.3 x 11.8 x 10.2cm
.Package Dimensions: 19 x 19 x 21cm
.Packing: Gift box with top and bottom lid
.Age: 16+

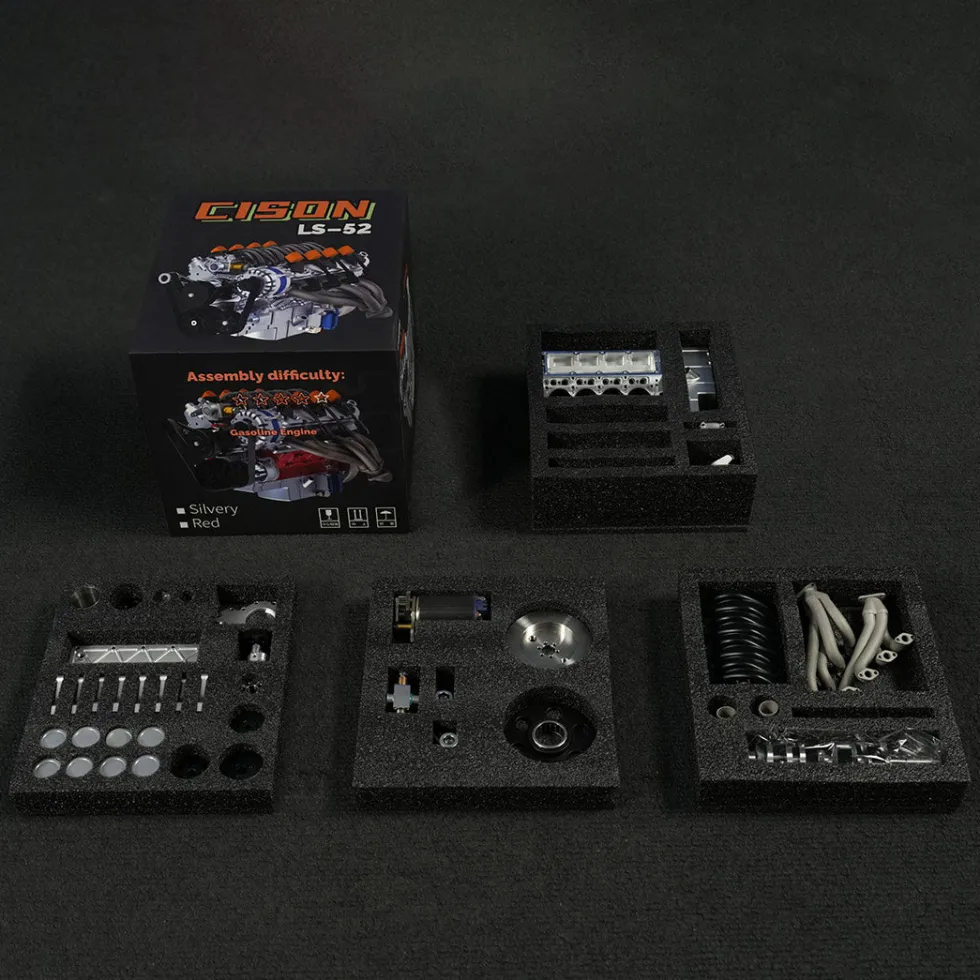

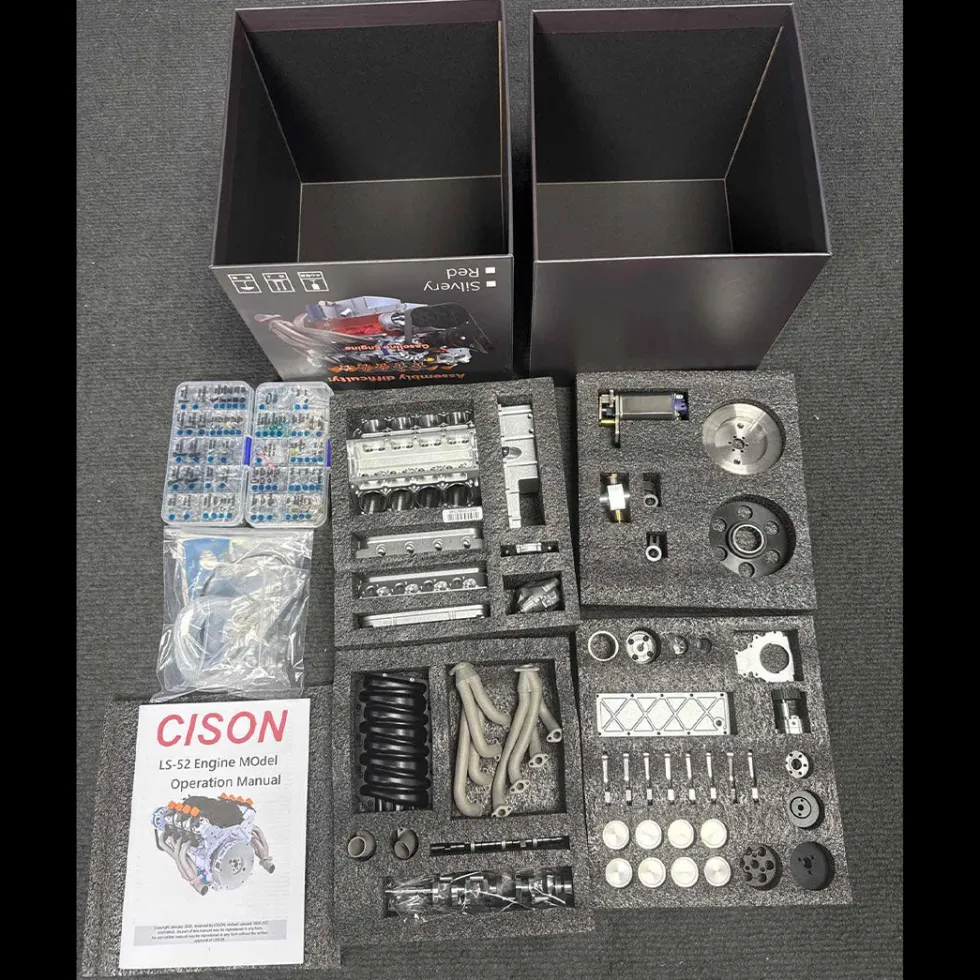

Packing List:

.Engine Parts *1 set
.Accessories *1 set
.Instruction Manual *1

Product Description:

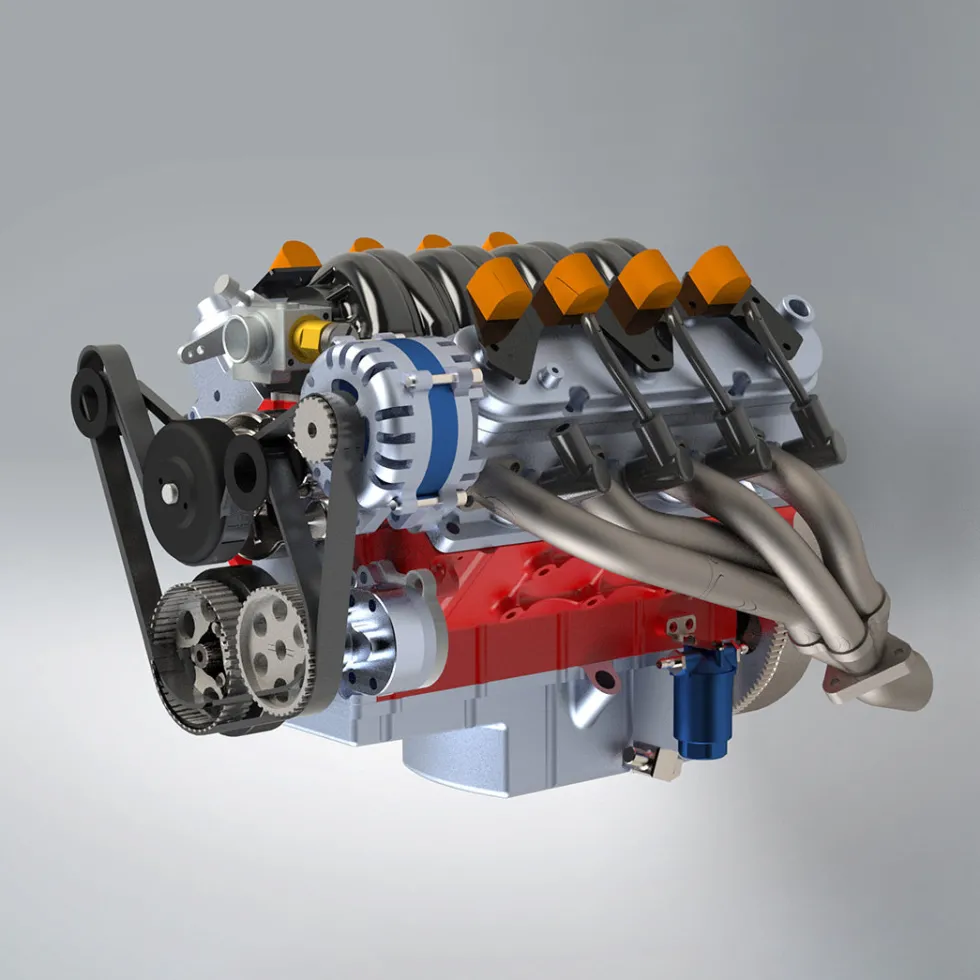

Released in Mar. 2026, the CISON LS-52 1/5 scale V8 engine model kit represents an updated evolution of the Smallblock V8 series. The model features a 52cc displacement and operates as a functional water-cooled OHV four-stroke gasoline internal combustion engine. A pressure lubrication system, precision internal structure, and integrated water pump architecture contribute to a realistic mechanical layout. The engine supports an RPM range of 1600-12500 and includes compatibility with MCU ignition configuration. The flywheel design also reserves installation points for future transmission expansion such as a centrifugal clutch or 6AT gearbox development. The cylinder block is available in silver or red. As a component-level kit version, the package excludes ignition kits, cooling kits, fuel tank assemblies, and base mounts.
