V4.0 Ocal Electronic Collimator Data for Newtonian Reflecting Telescopes and Schmidt Cassegrain Telescopes

V4.0 Ocal Electronic Collimator Data for Newtonian Reflecting Telescopes and Schmidt Cassegrain Telescopes

Product Information:

The V4.0 Ocal Electronic Collimator is a precision optical alignment tool designed for Newtonian Reflecting Telescopes and Schmidt-Cassegrain Telescopes. With high-resolution digital collimation and real-time image feedback, it ensures accurate and efficient telescope alignment without guesswork.Upgrade your star-gazing or imaging performance with this advanced collimation system.

.Innovative Original Design for Precision Collimation: Designed and manufactured by OCAL, the OCAL PRO is a next-generation electronic collimator tailored for Ritchey-Chrétien and Newtonian telescopes. It simplifies the collimation process, achieving axial alignment accuracy as precise as 0.08mm—perfect for professional astrophotography.
.All-in-One Smartphone Operation — No PC Needed: The upgraded OCAL PRO version offers seamless smartphone compatibility, allowing you to collimate your telescope easily without a laptop or desktop. Enjoy full portability and on-the-go adjustments through a user-friendly mobile app interface.
.Enhanced Accuracy with Built-in Calibration Circles: Software-guided calibration circles make it easy to visualize and adjust the optical axis, significantly reducing the time required for collimation. Each unit is factory-centered to pixel-level accuracy using advanced alignment tools.

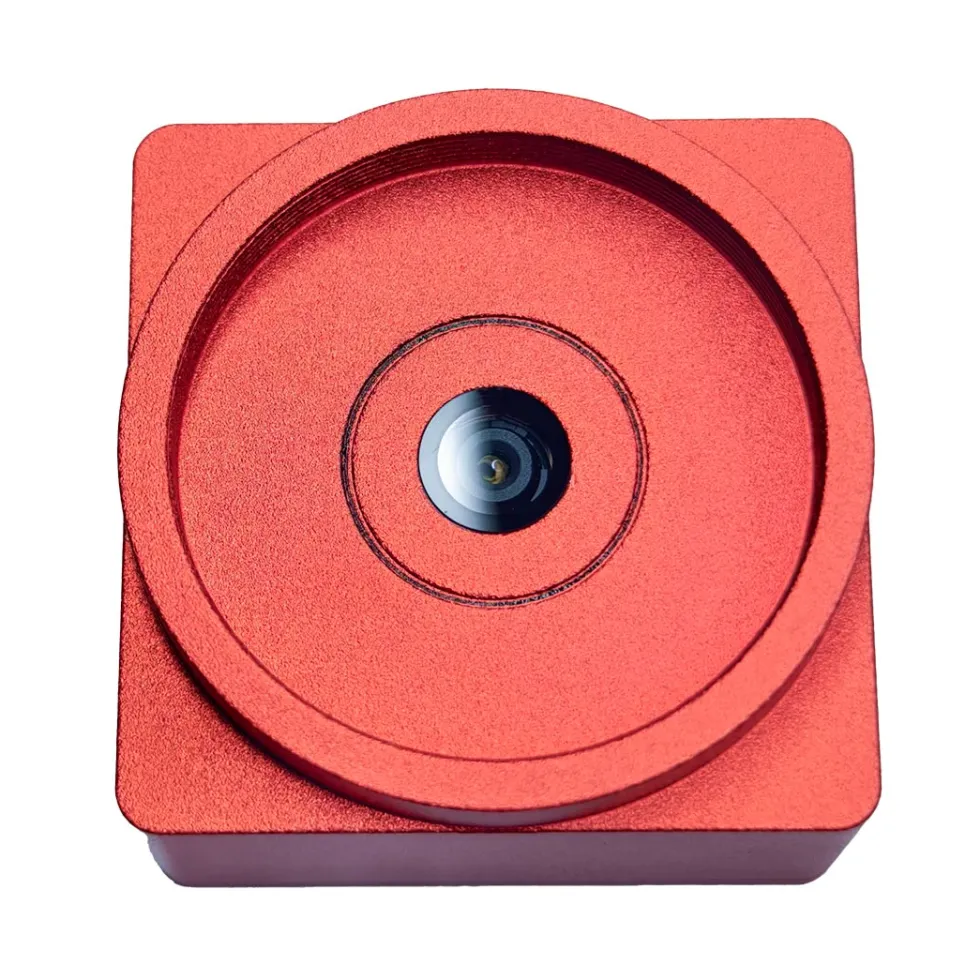

.Precision Mounting with M48 Thread Interface: Engineered with an M48 threaded design to minimize installation errors and ensure perfect alignment with your telescope’s optical path. This eliminates user-induced discrepancies such as eye misalignment or flexing from long levers in traditional cross-hair eyepieces.
.Quantifiable Results and Easy Sharing: OCAL PRO allows users to save and share precise collimation images, making it easier to document and compare alignment results. Perfect for advanced users and astronomy communities who value accuracy, repeatability, and collaboration.
Product Description:
The previous generation, OCAL Electronic Collimator 3.0 MAX, achieved a breakthrough in precision and stability through advanced 3A process modules and high-precision assembly technology. Upon its release, it received widespread acclaim in the market for its outstanding performance.
However, the 3.0 MAX was not without flaws. Its bulky module and heavy weight made it prone to reduced accuracy from everyday bumps or accidental drops. Additionally, the high production cost resulted in a relatively high retail price, which limited its adoption.
To overcome these challenges, our R&D team spent two years developing the new OCAL Electronic Collimator 4.0, which brings the following advantages compared to the 3.0 MAX—even though the aperture size is only slightly reduced:
.Image Quality Innovation: Featuring higher resolution and advanced CMOS technology, the 4.0 delivers significantly improved image clarity and detail. It captures fine details with greater precision and presents visuals that are more refined and realistic.
.Display Optimization: The new 4:3 aspect ratio design, compared to the previous 16:9 ratio, allows for a more efficient display of the internal structure of the telescope. This provides users with a more intuitive and comprehensive viewing experience.
.Enhanced Stability: While retaining the 3A process and high-precision assembly of the 3.0 MAX, the 4.0 is more compact and lightweight, further improving its stability. It maintains calibration accuracy even during minor bumps and movement in everyday use.
.Refined Appearance: The new red casing features a thoughtfully designed circular marker, making it easier for users to identify the reflective surface of the collimator and operate the device more efficiently.
.Significant Cost-Performance Improvement: While maintaining its core performance, production costs have been reduced, making the OCAL 4.0 a more accessible and cost-effective solution.

Specifications:

.Material: Aluminum Alloy
.Focusing Type: Manual and Automatic
.Power Source: AC Power
.Resolution: 2448P
.Voltage: 5V
.Collimation:4-step collimation process ( It is simple and user-friendly, suitable for everyone. You can share your collimation results via screenshots, or send your collimation screenshot to us for technical support.)
.Product Weight: 300g
.Package Weight: 400g
.Product Dimensions: 5.1 x 5.1 x 3cm
.Package Dimensions: 15 x 15 x 6cm

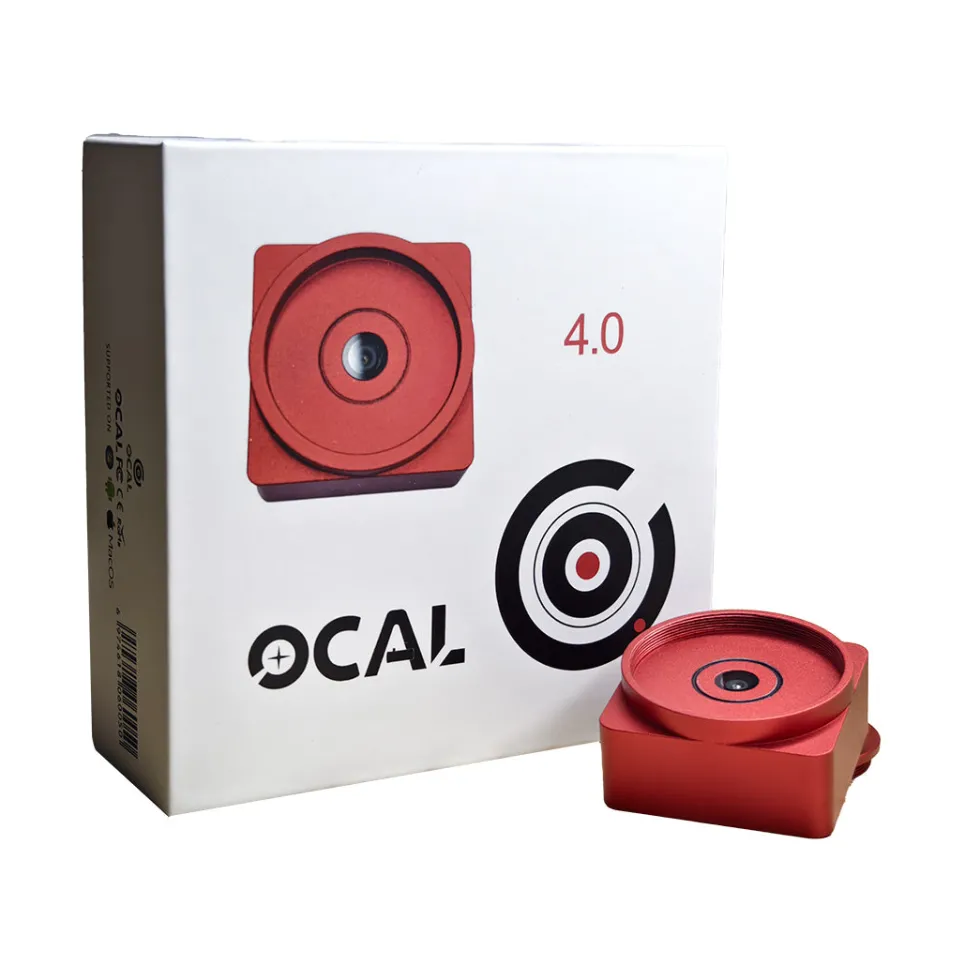

.Packing: Box
.Age: 16+
