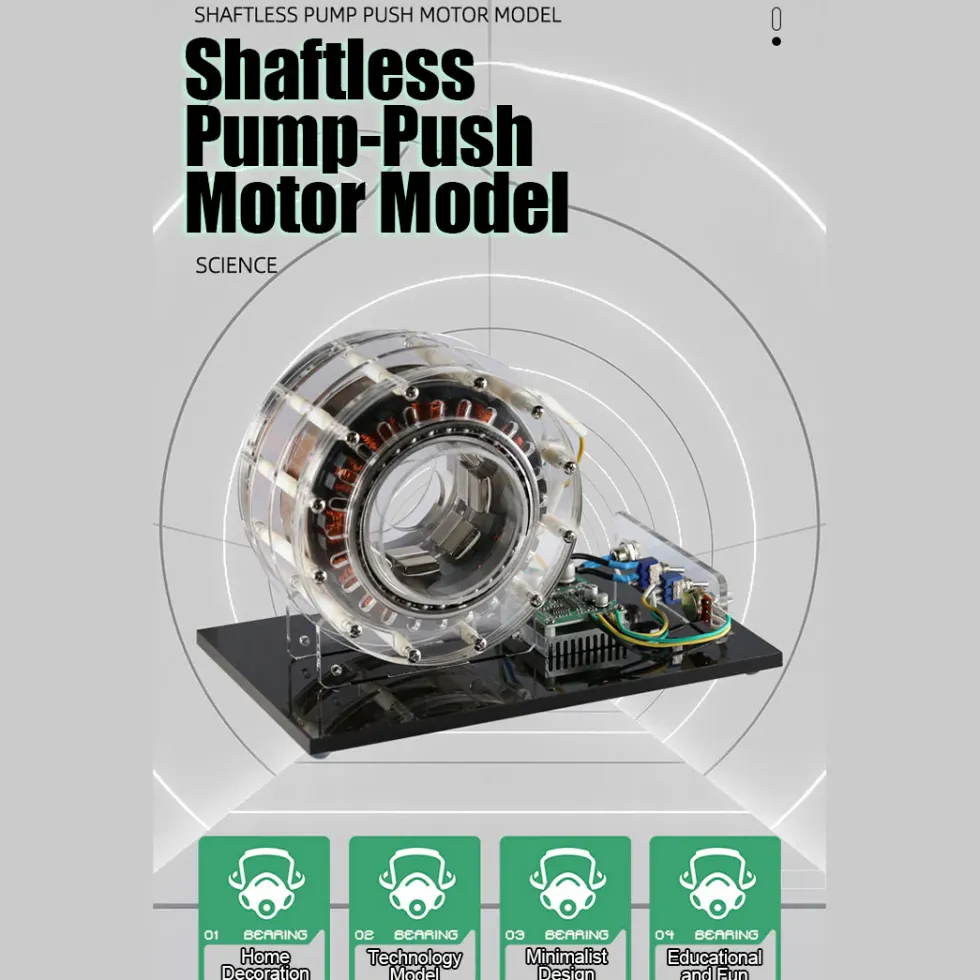

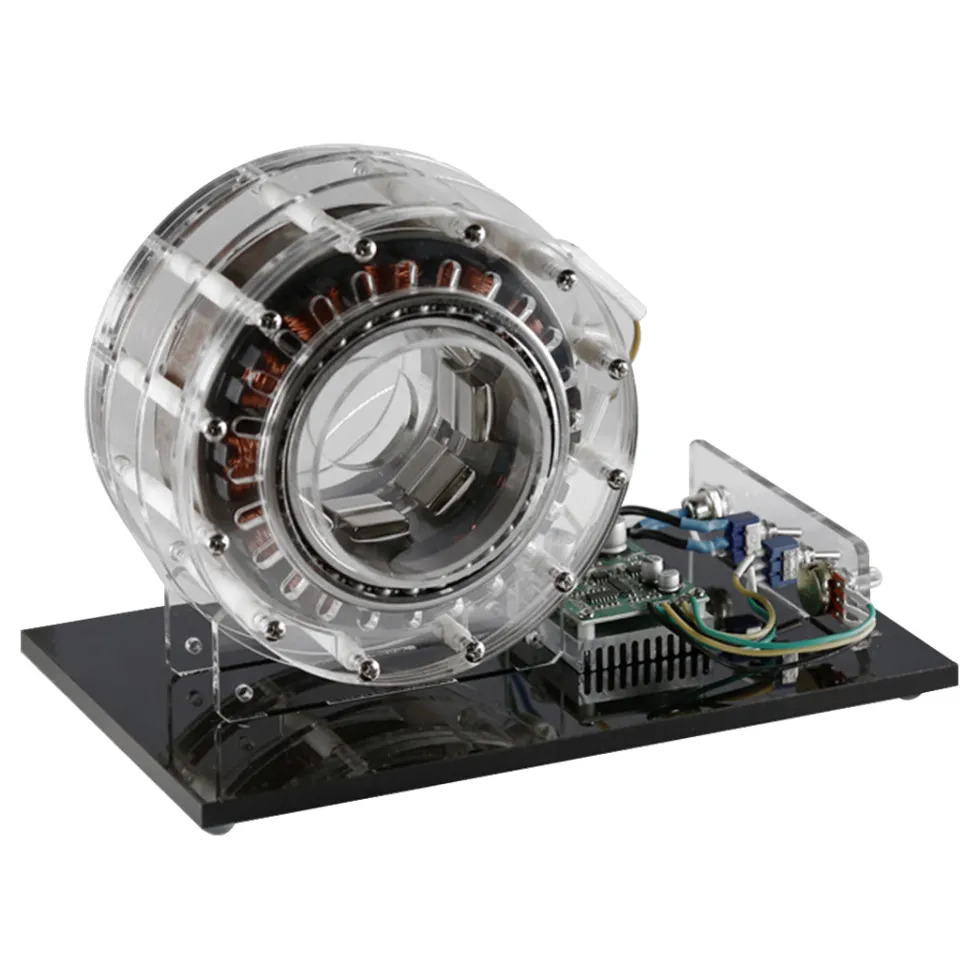

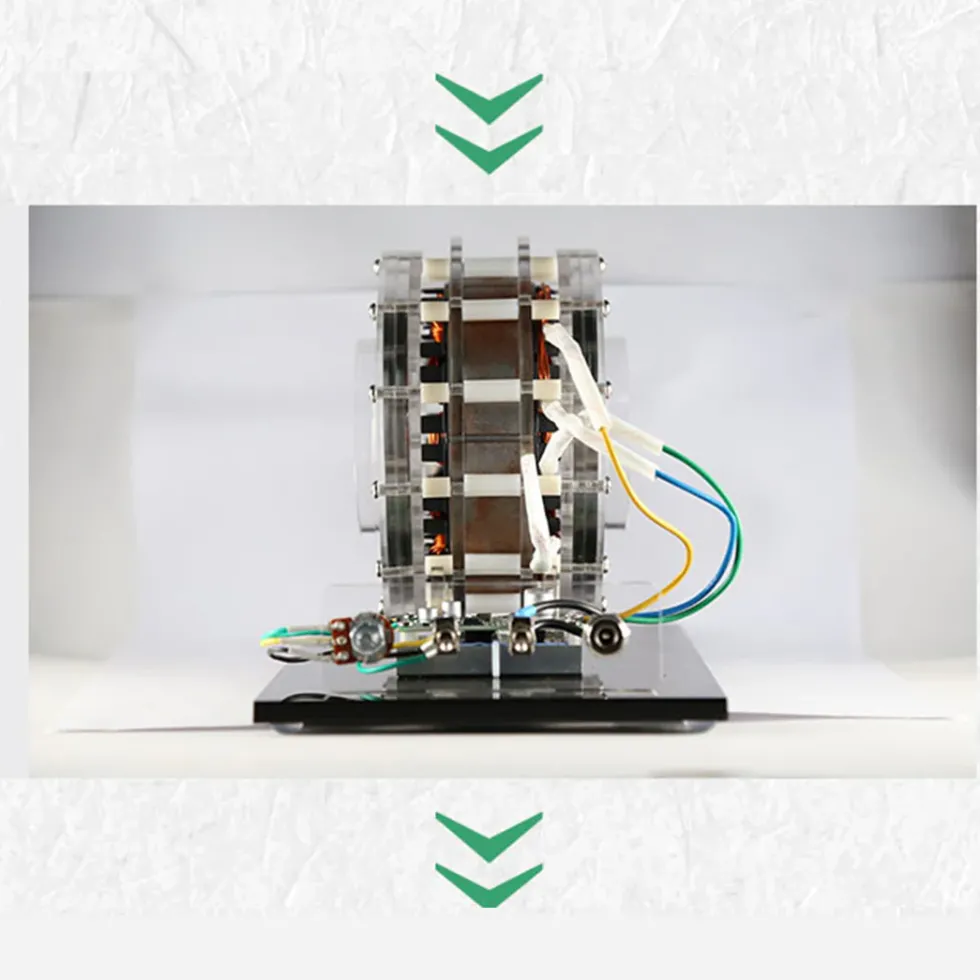

Shaftless Pump-Push Inner-Rotor Motor Model, High-Tech Teaching Demo Device

Shaftless Pump-Push Inner-Rotor Motor Model, High-Tech Teaching Demo Device

Features:

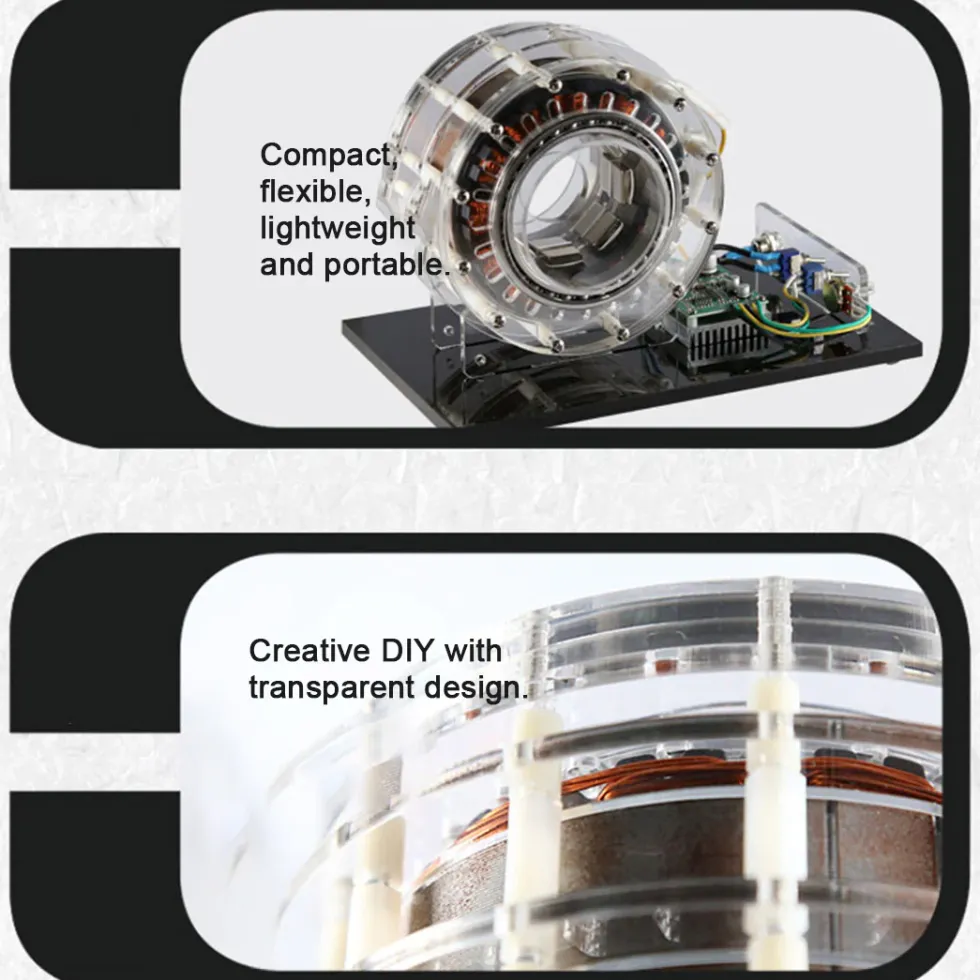

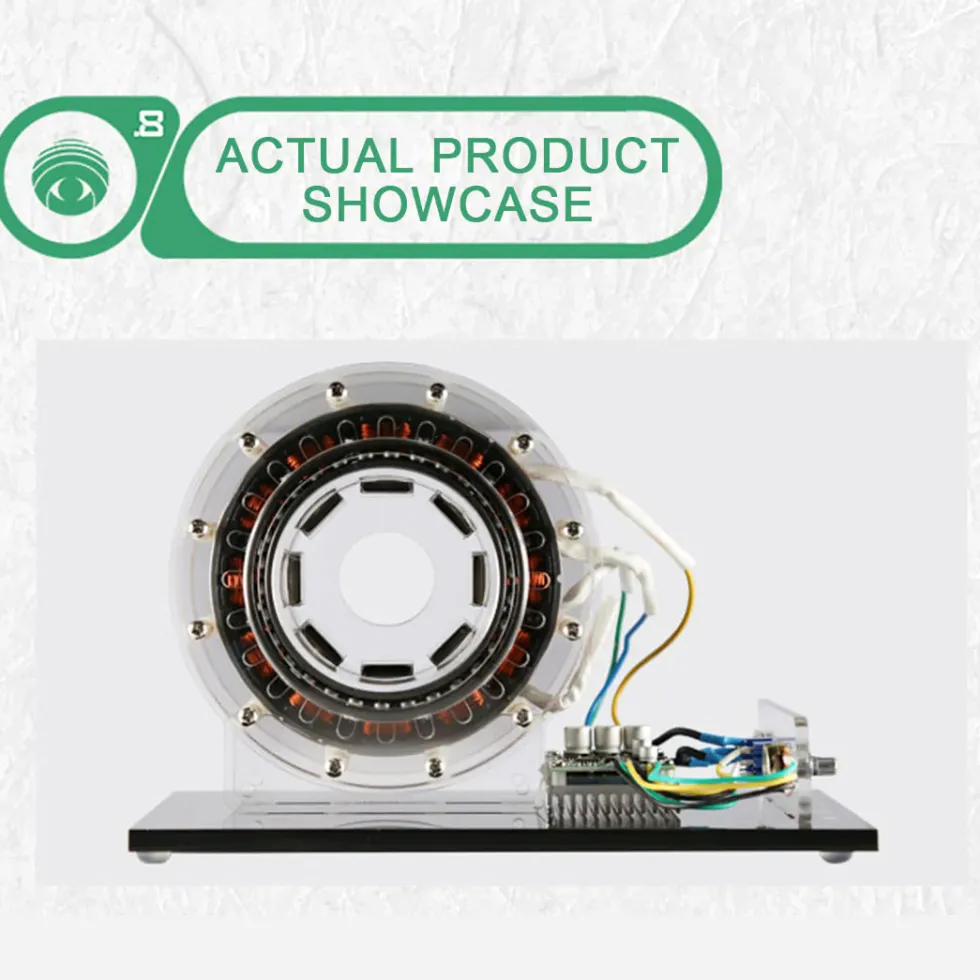

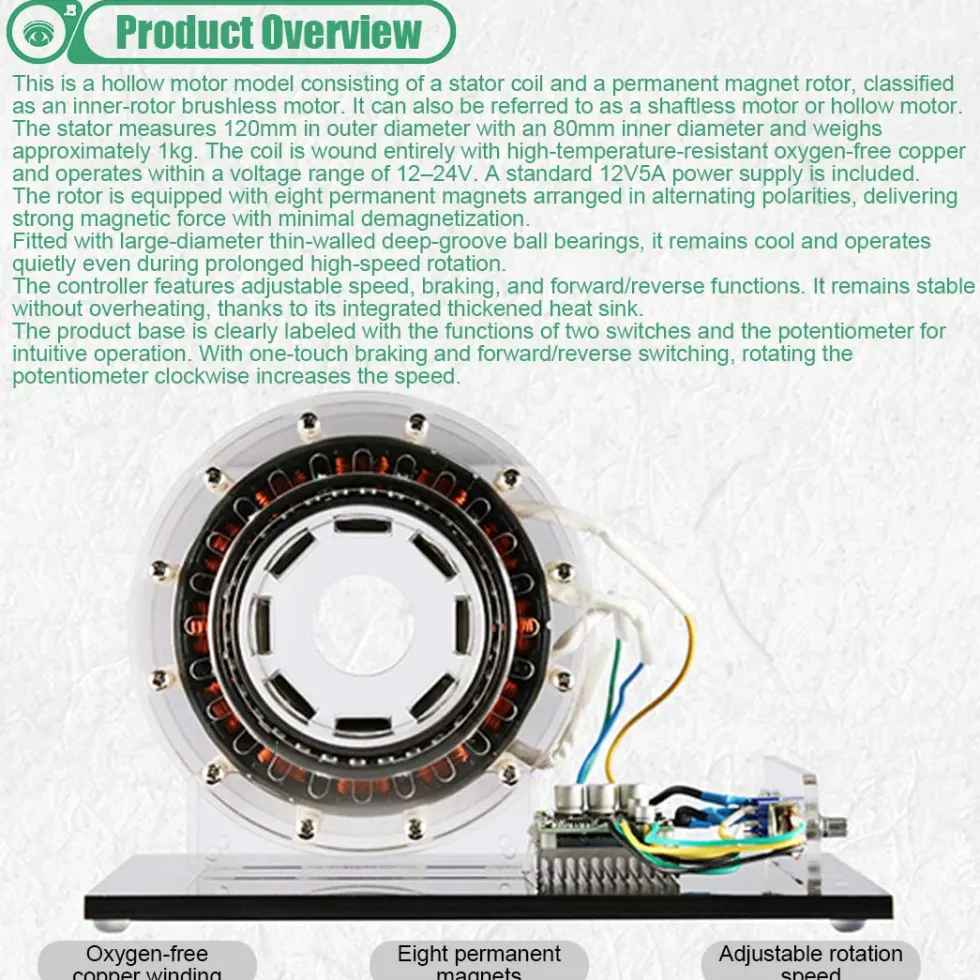

Open-Structure Coreless Motor Design:

Built around an inner-rotor brushless hollow motor structure, the stator coils and permanent-magnet rotor are fully exposed. The shaftless layout allows the magnetic field interaction and rotational motion to be observed directly, making operating principles easy to understand at a glance.

Quality Components for Stable Operation:

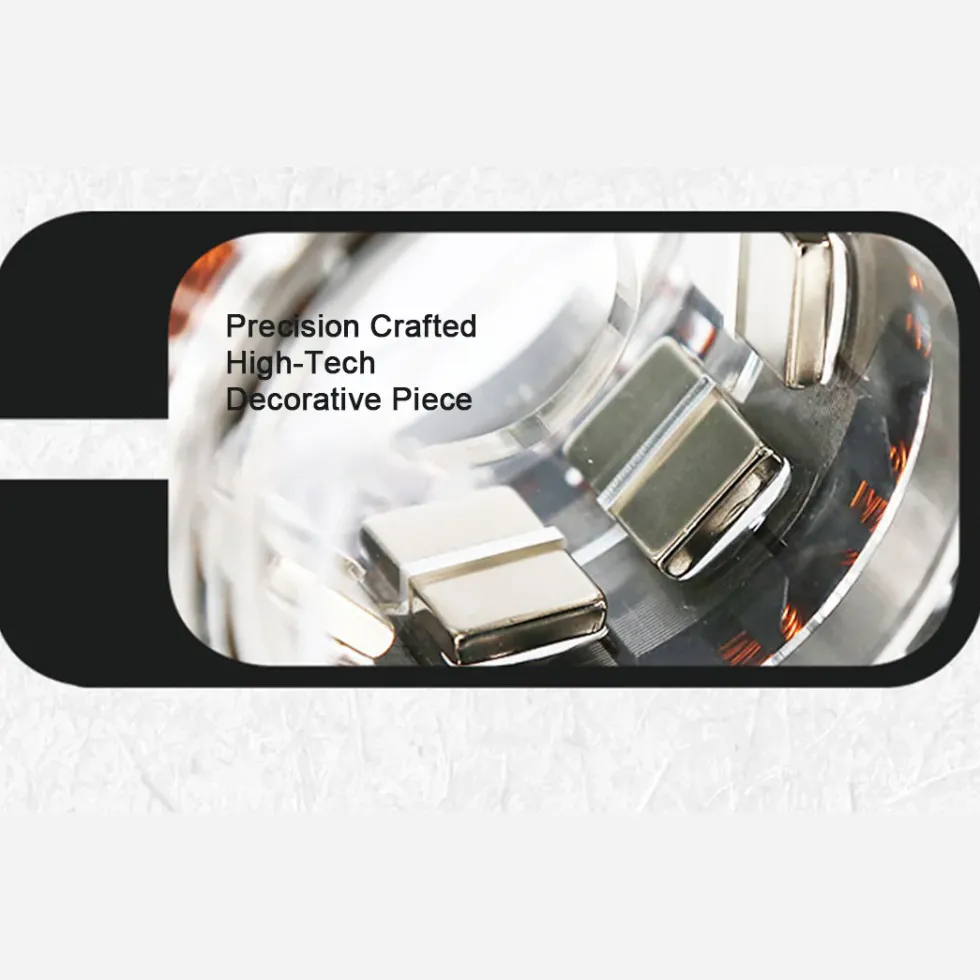

The stator uses high-temperature oxygen-free copper windings, while the rotor integrates eight strong permanent magnets arranged in alternating polarity. Large-diameter thin-wall deep-groove ball bearings support smooth rotation with controlled heat generation and low mechanical noise during extended operation.

Adjustable Control Module with Multiple Functions:

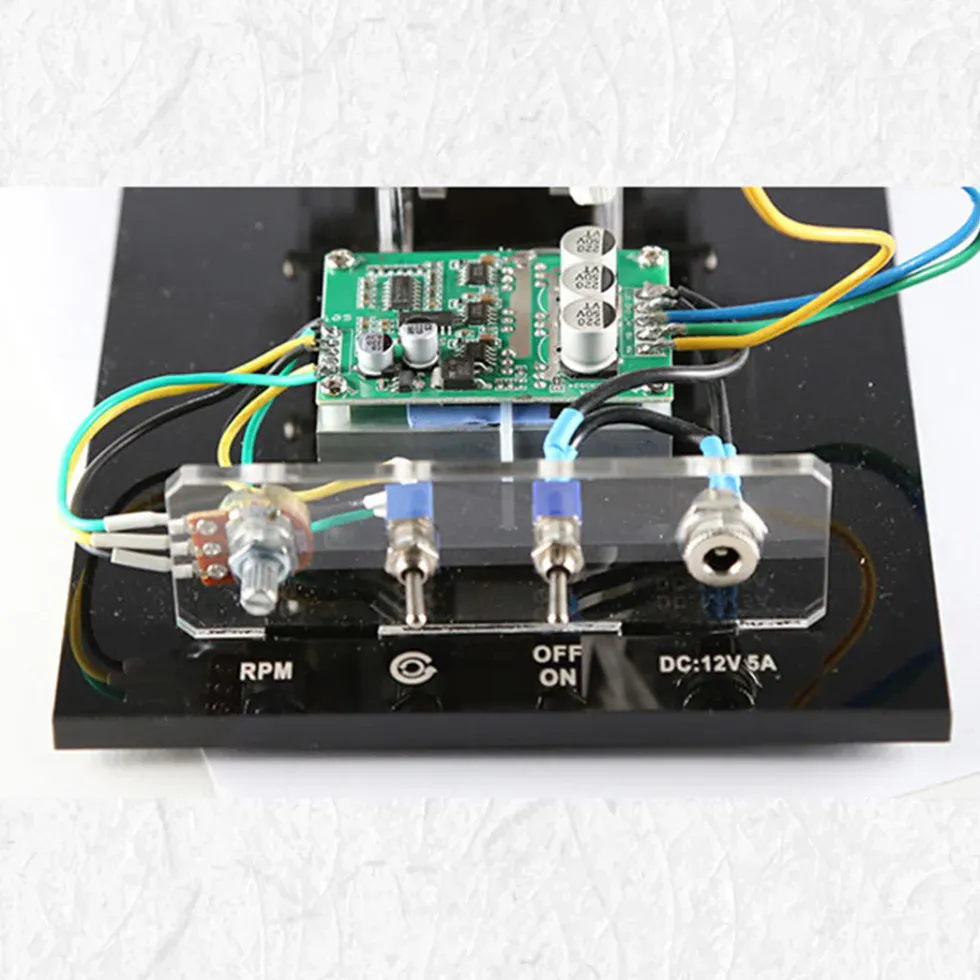

A heat-sink-equipped controller is included, supporting speed adjustment, one-touch braking, and forward/reverse rotation switching. Clearly labeled switches and potentiometers on the base allow intuitive operation and clear demonstration of different working conditions.

Wide Voltage Compatibility and Smooth Speed Control:

The system supports a 12–24V input range and includes a 12V 5A power adapter compatible with both 110V and 220V sources. Power consumption is approximately 30–40W, with rotational speed smoothly adjustable from about 100 to 1500 RPM.

Industrial-Style Base for Demonstration and Display:

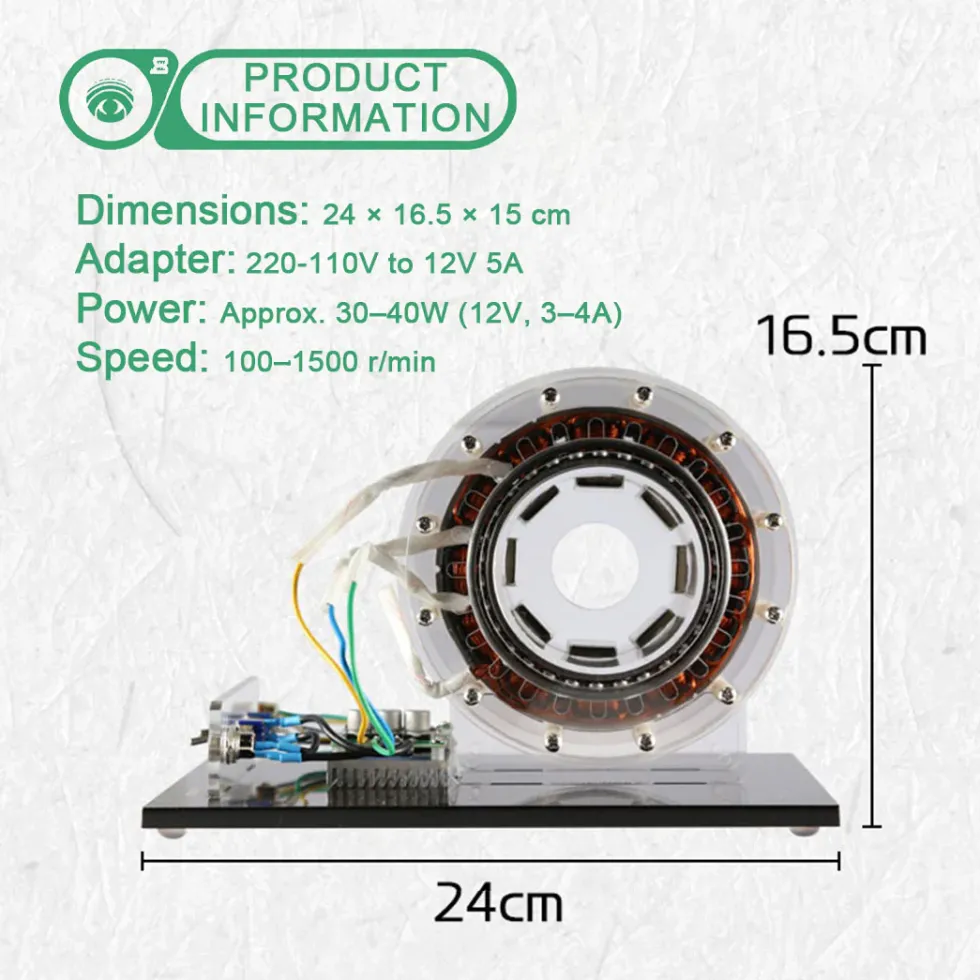

With overall dimensions of approximately 24 × 16.5 × 15 cm and a weight of around 1 kg, the structure remains stable during operation. The industrial appearance and solid base make it suitable for classrooms, laboratories, exhibitions, and technical displays, with options for customized labeling in bulk orders.

Specifications:

.Material: Acrylic, Neodymium Iron Boron Magnet
.Power Supply: 12V 5A
.Power: 40W
.Speed: 1000r/min
.Product Weight: 1200g
.Package Weight: 1500g
.Product Dimensions: 24 x 16.5 x 15cm
.Package Dimensions: 38 x 30 x 25cm
.Packing: Box
.Age: 16+

Packing List:

.Main Unit *1
.12V 5A Adapter *1
.Instruction Manual *1
