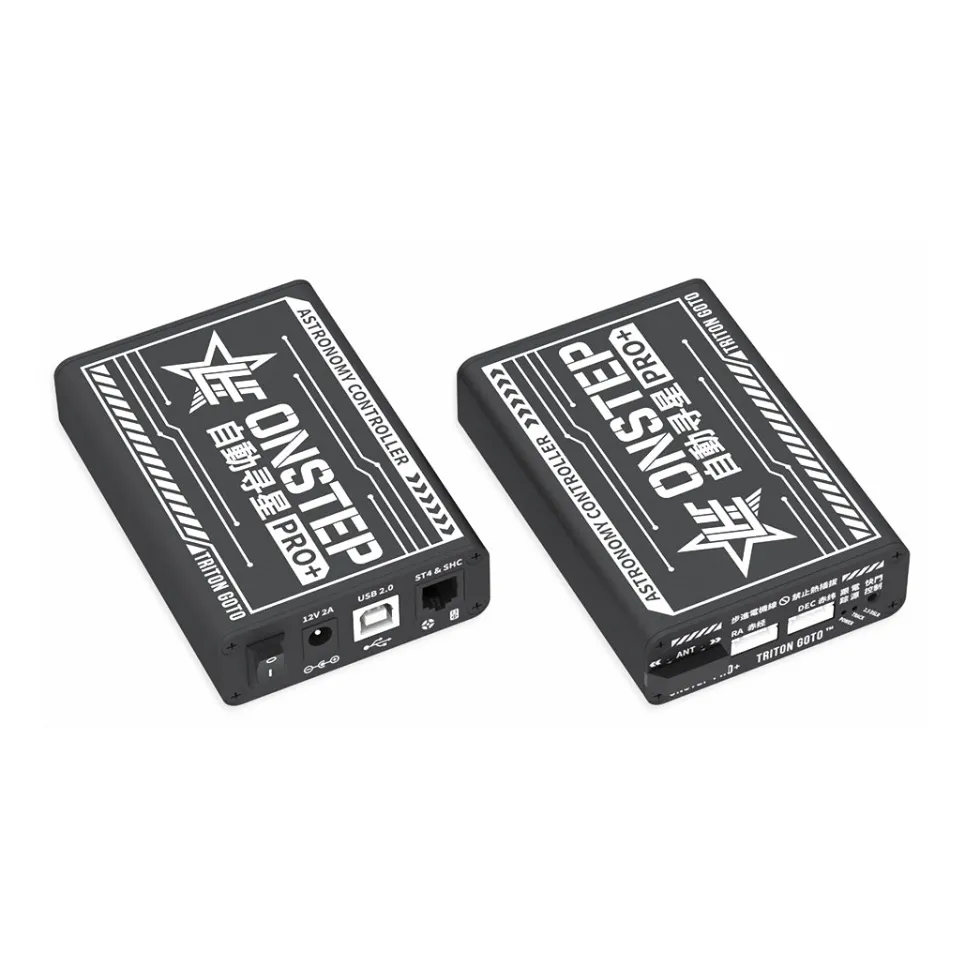

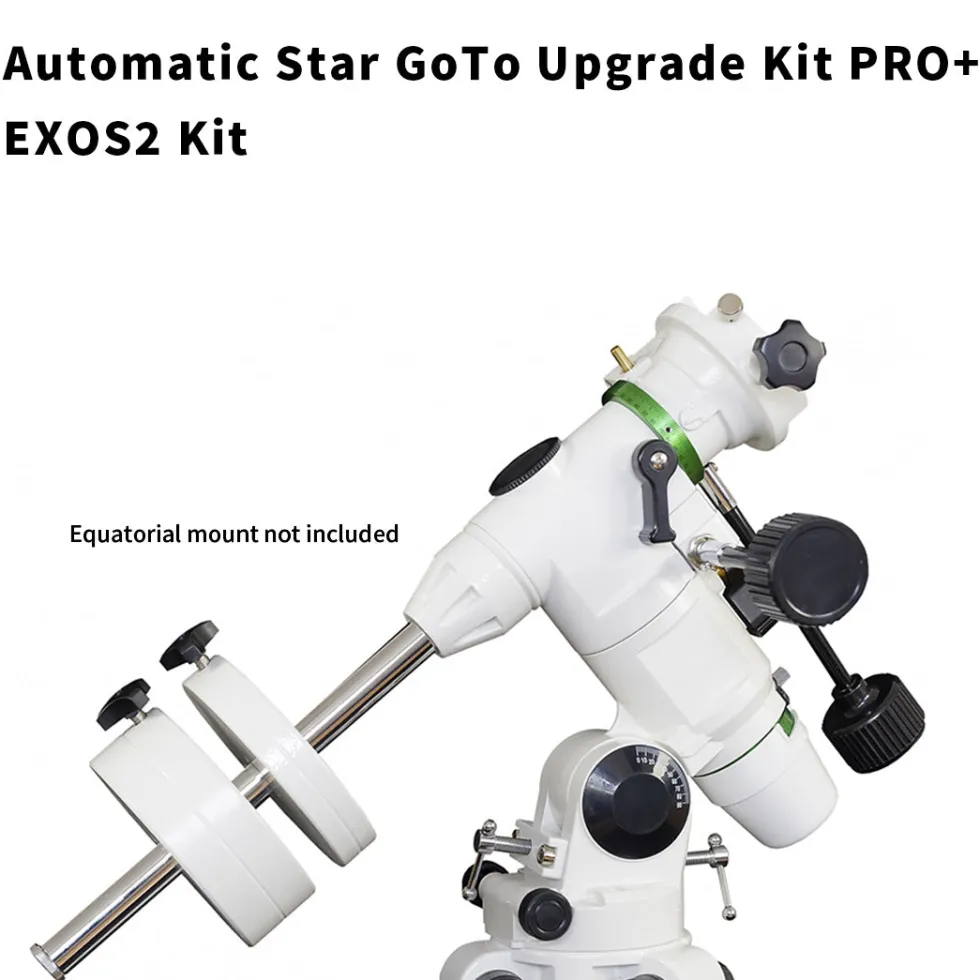

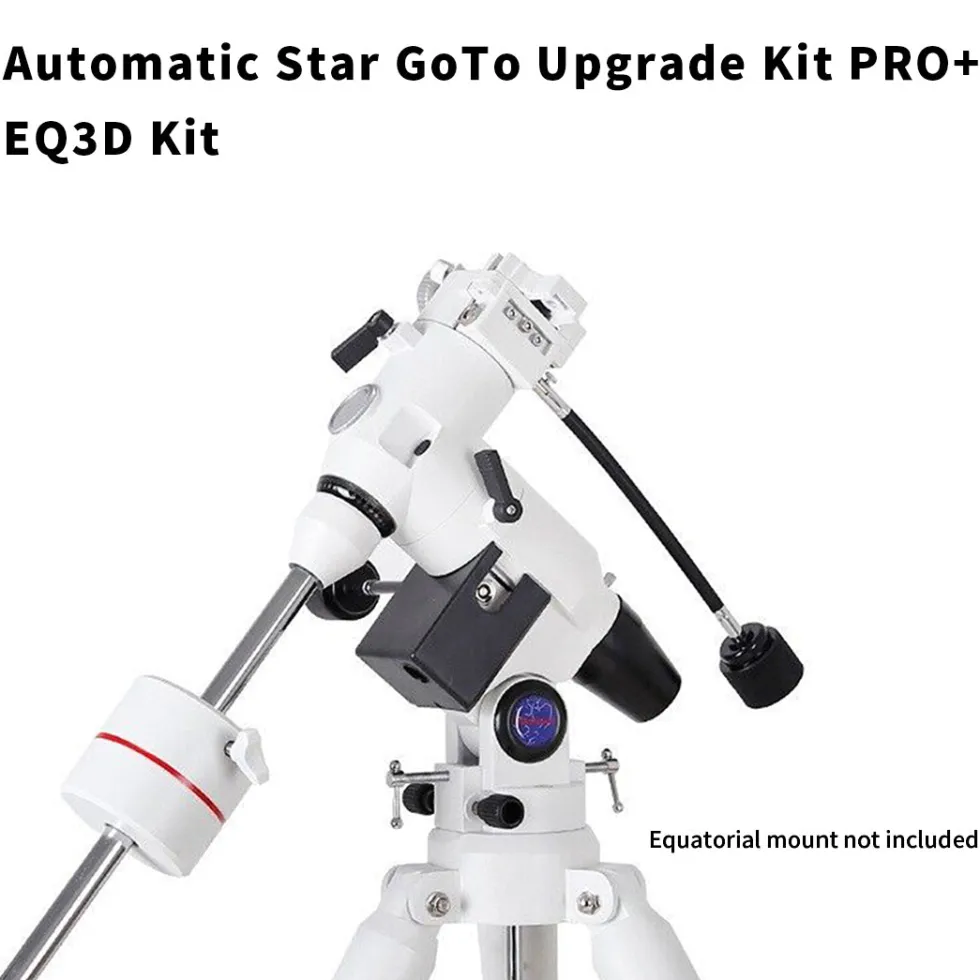

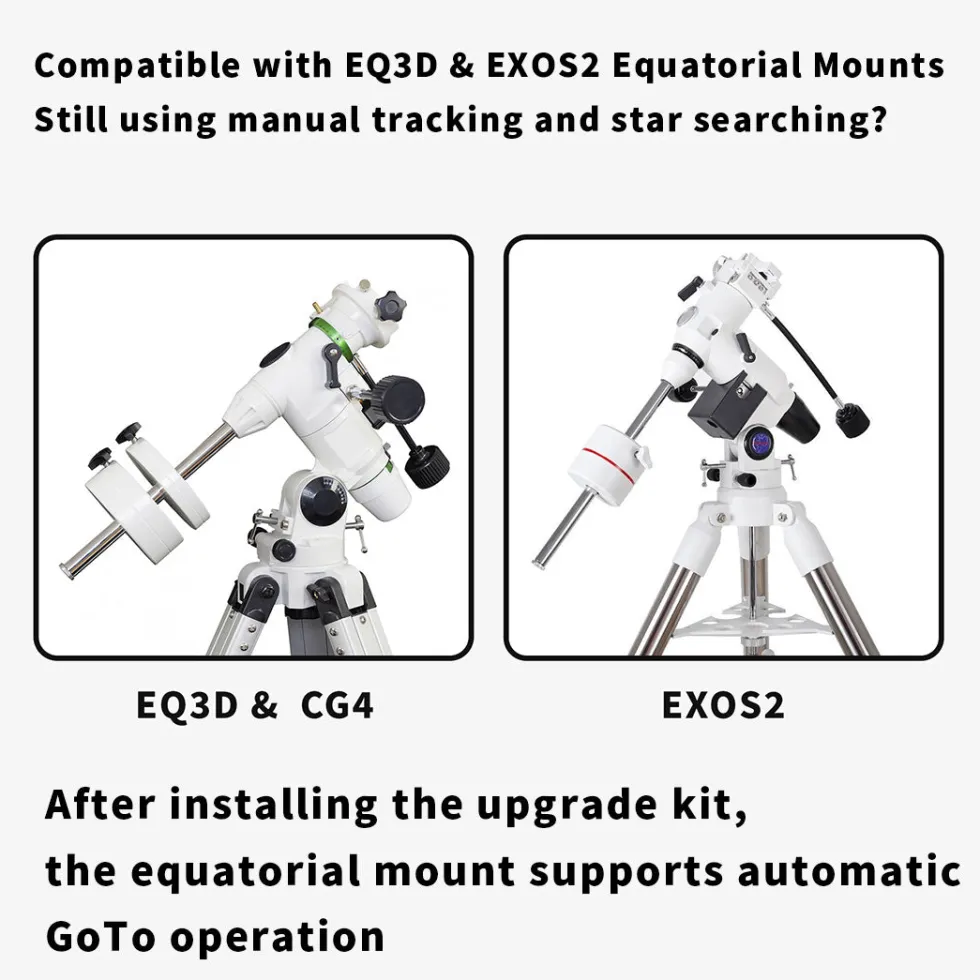

ONSTEP Auto GOTO Upgrade Kit PRO+, 12V DC 5.5×2.1 Input, Comaptible with EO3D/EXOS2 Equitorial Mount

ONSTEP Auto GOTO Upgrade Kit PRO+, 12V DC 5.5×2.1 Input, Comaptible with EO3D/EXOS2 Equitorial Mount

Product Information:

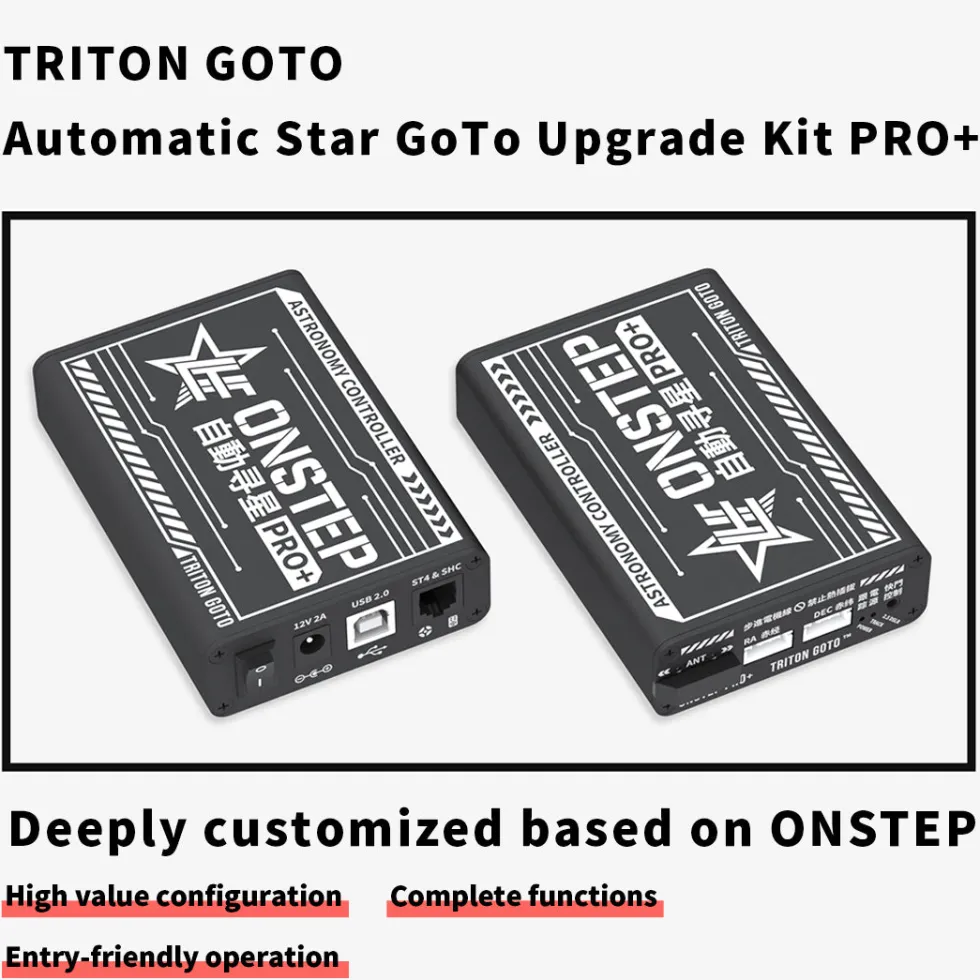

ONSTEP Auto GOTO Upgrade Kit PRO+ integrates professional motion control, multi-protocol compatibility, and dual-mode wireless connectivity into a compact equatorial mount controller. Designed for advanced astronomical observation and imaging workflows.

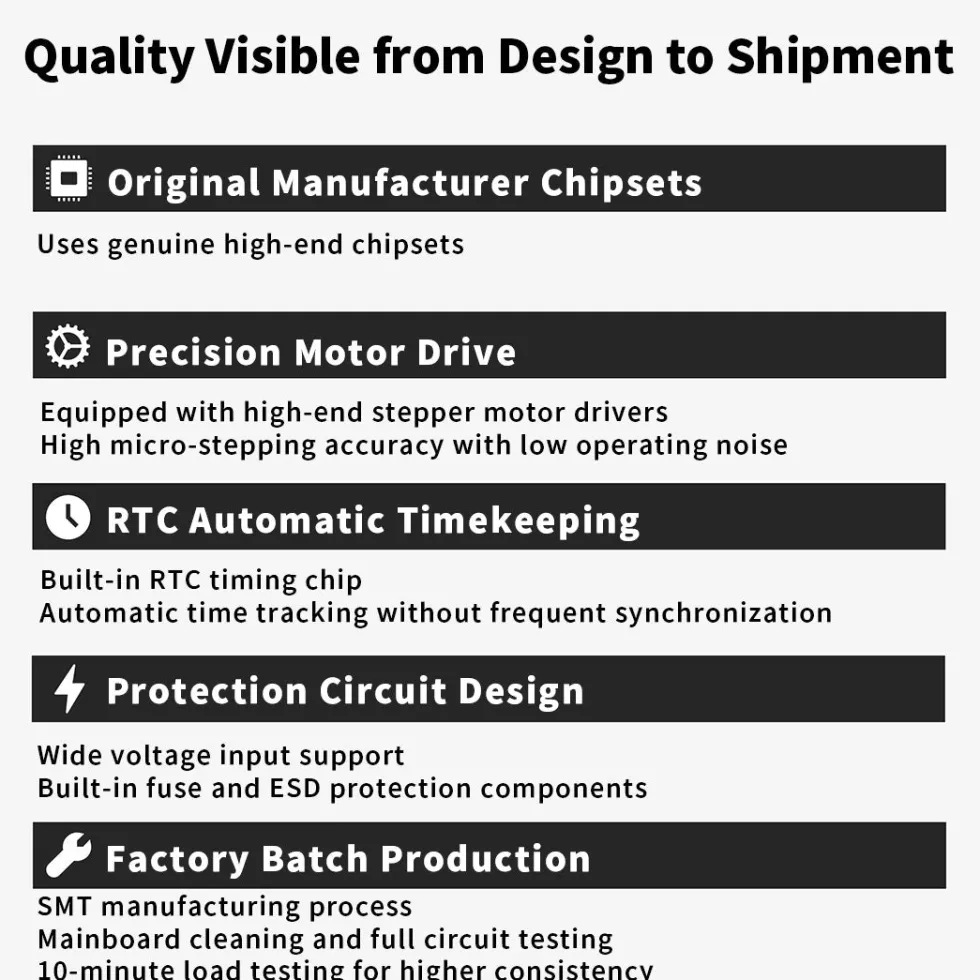

.Professional ONSTEP Control Core: Deeply optimized based on the open-source ONSTEP system, combined with TRINAMIC stepper motor drivers for precise micro-stepping and smooth, low-noise operation; integrated RTC real-time clock enables power-on use without repeated time synchronization, supported by built-in fuse and ESD protection circuits.

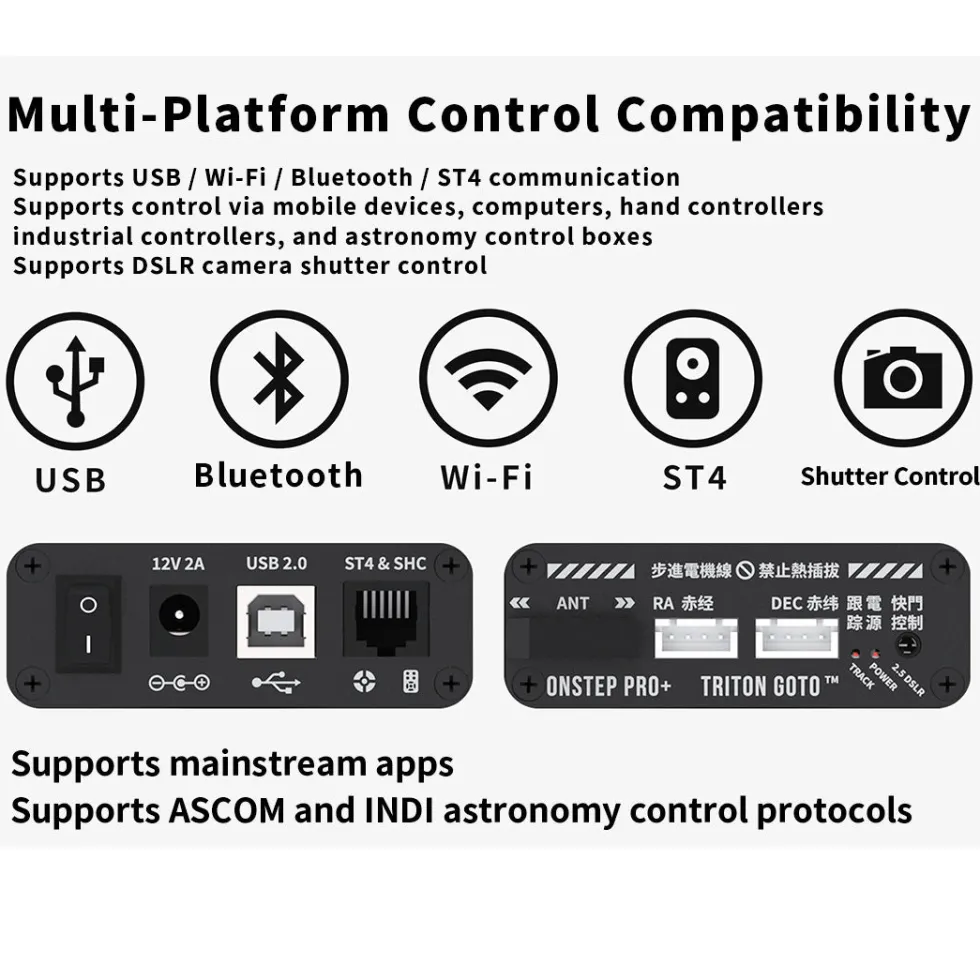

.Full Protocol Compatibility and Interface Expansion: Native support for ASCOM and INDI control protocols enables stable operation with NINA, Stellarium, and SkySafari; equipped with USB, WiFi, Bluetooth, ST4 guiding port, and shutter control interfaces to support guiding, imaging, and automation workflows.

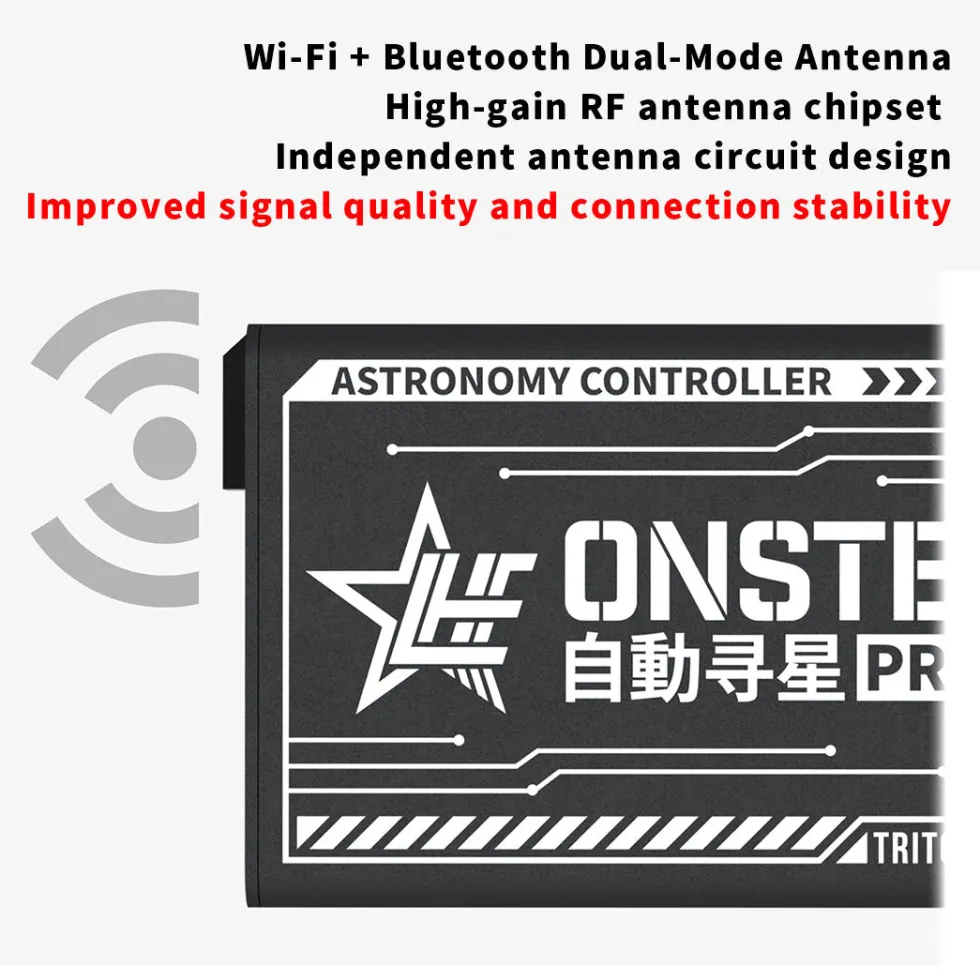

.Dual-Mode Wireless Communication Design: WiFi and Bluetooth dual-mode connectivity with integrated high-gain RF antenna chip and custom antenna circuitry improves signal penetration and interference resistance, maintaining stable connections in complex observation environments.
.Dual-Platform Control and DIY Configuration: Mobile app enables equatorial mount parameter configuration and profile switching, while PC software includes built-in drivers supporting full ASCOM link integration; one controller can be configured to operate multiple equatorial mounts.

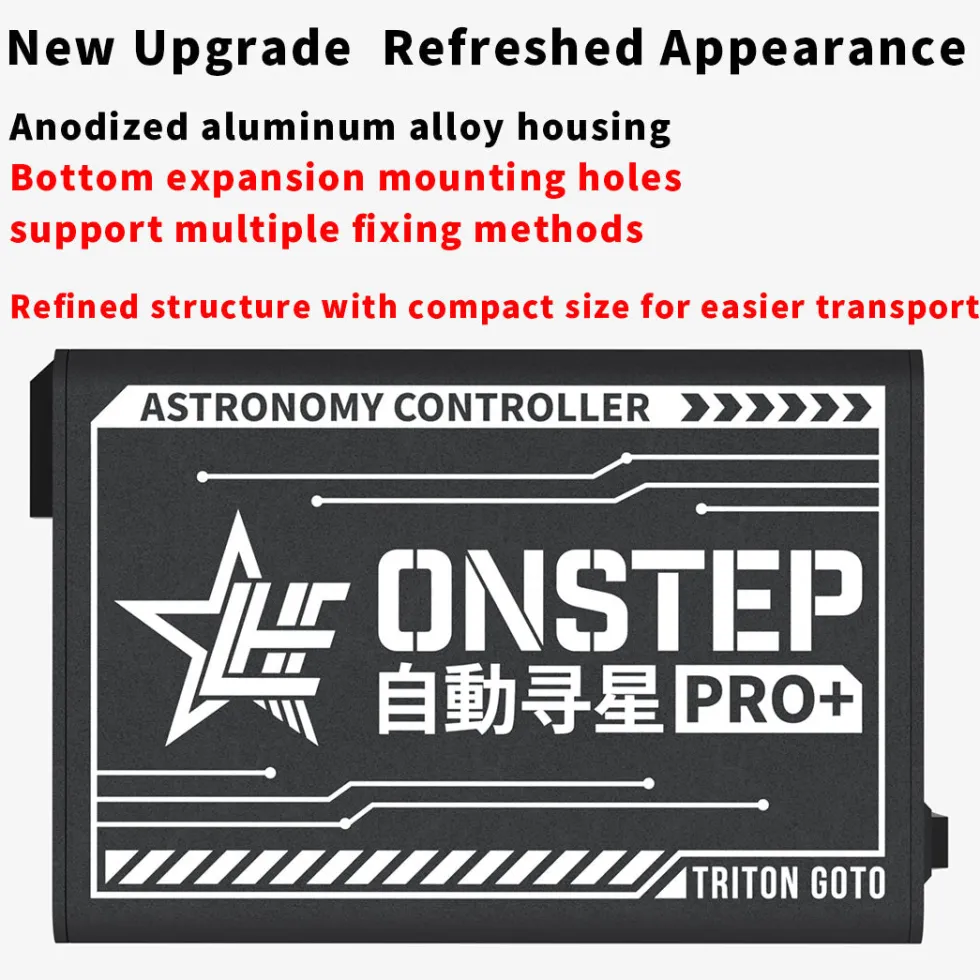

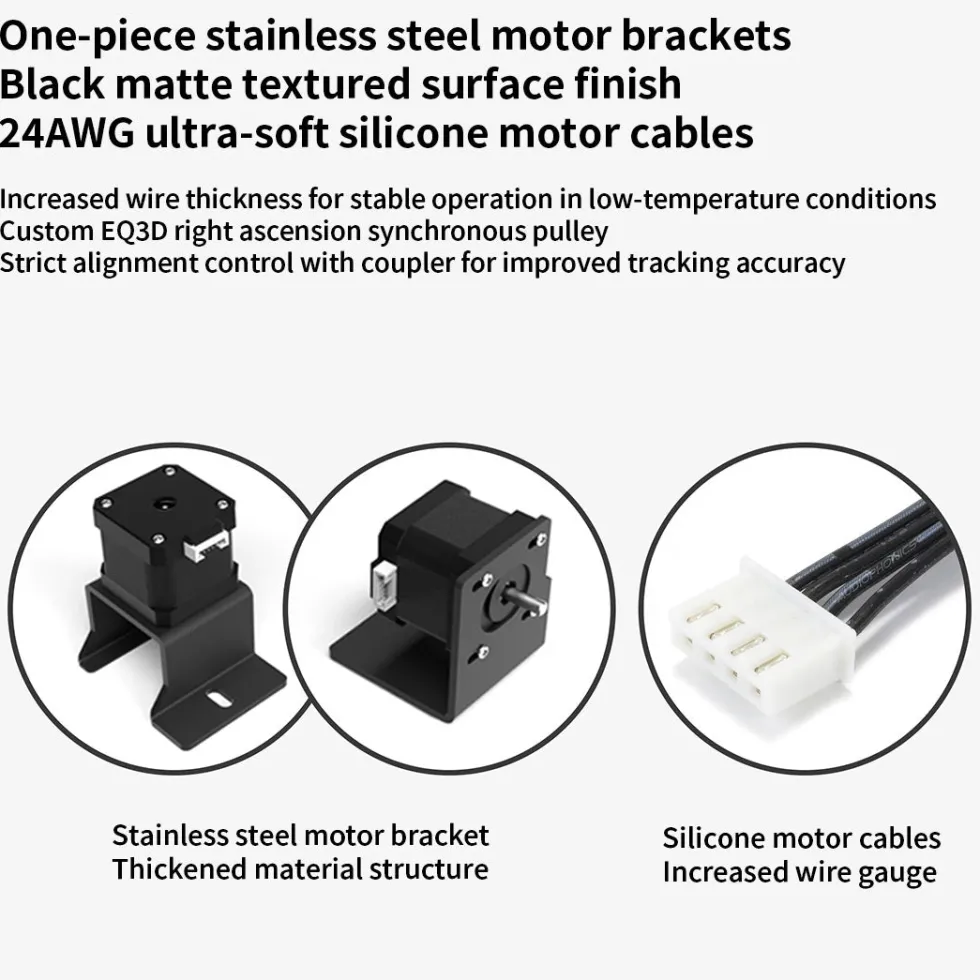

.Industrial-Grade Hardware Structure with Upgrade Support: Aluminum alloy enclosure with anodized sandblasted finish and engraving, integrated stainless steel motor bracket, and 24AWG silicone wiring; firmware supports online updates to continuously access ONSTEP ecosystem enhancements.

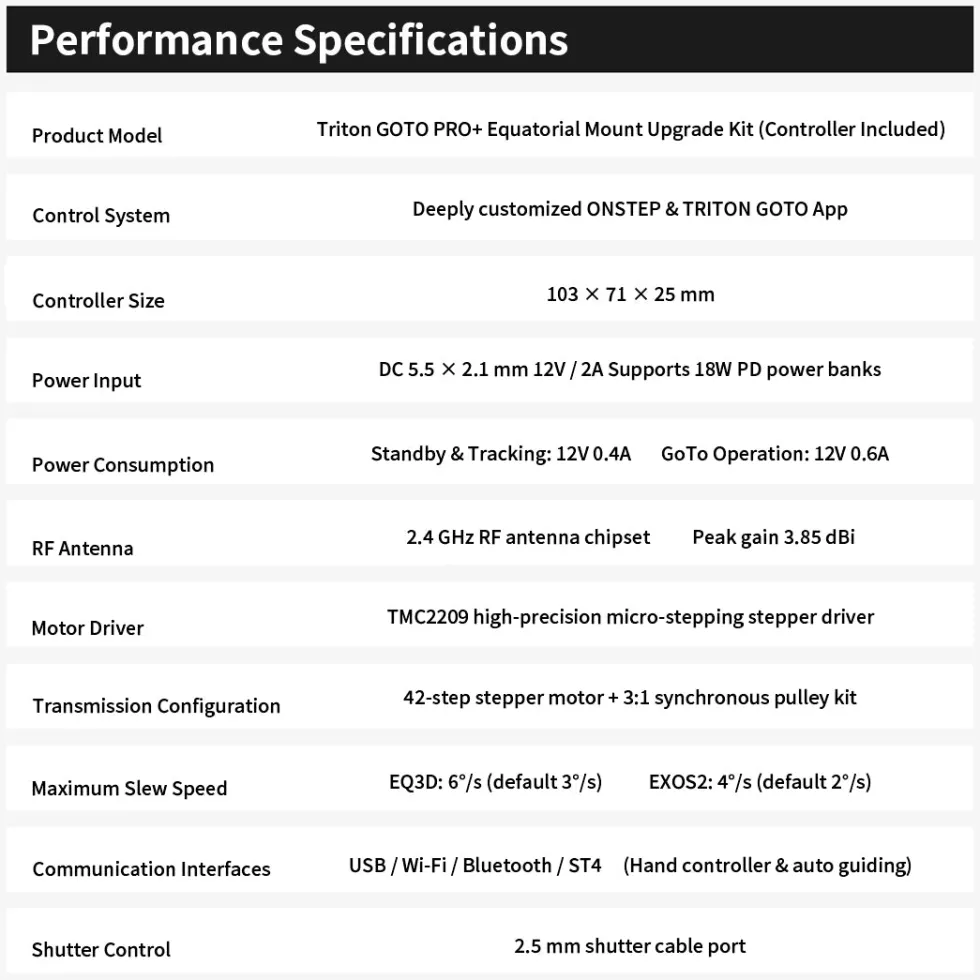

Specifications:

.Material: Metal, Plastic, Electronic Components
.Product Weight: 1200g
.Package Weight: 1350g

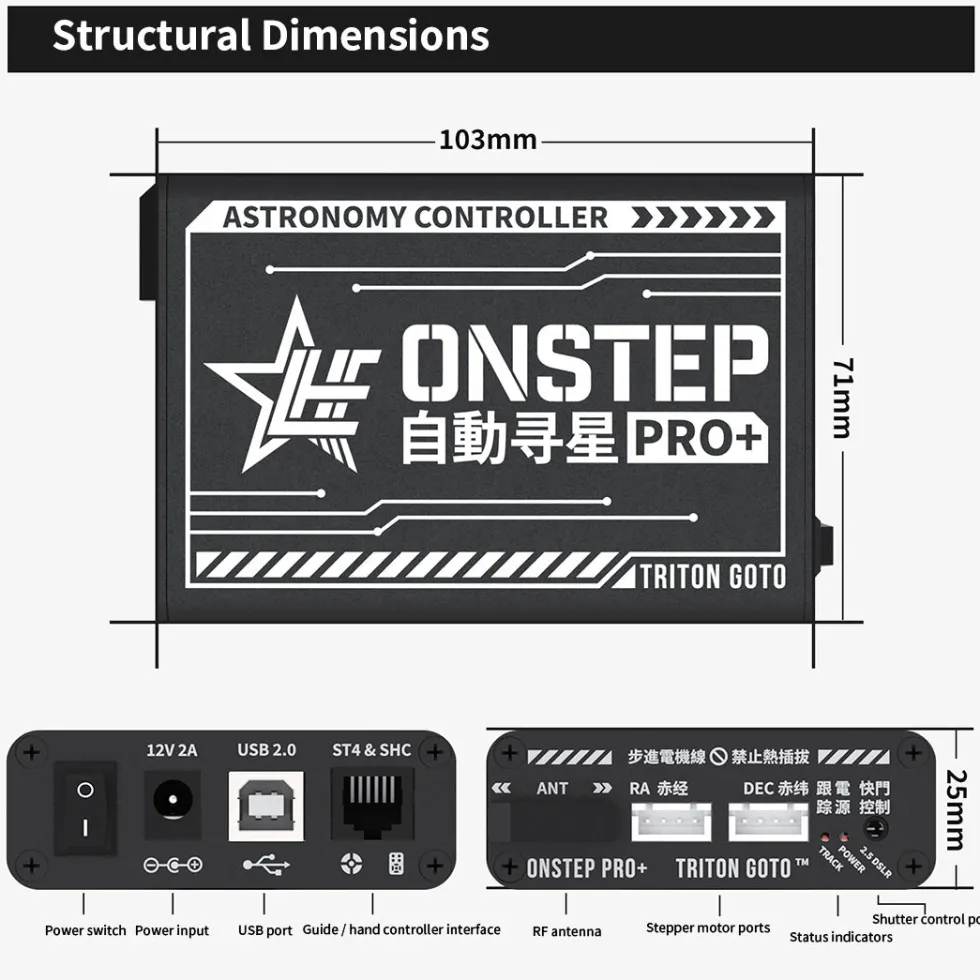

.Product Dimensions: 20 x 15 x 5cm
.Package Dimensions: 25 x 20 x 7cm
.Packing: Graphic Carton
.Age: 16+

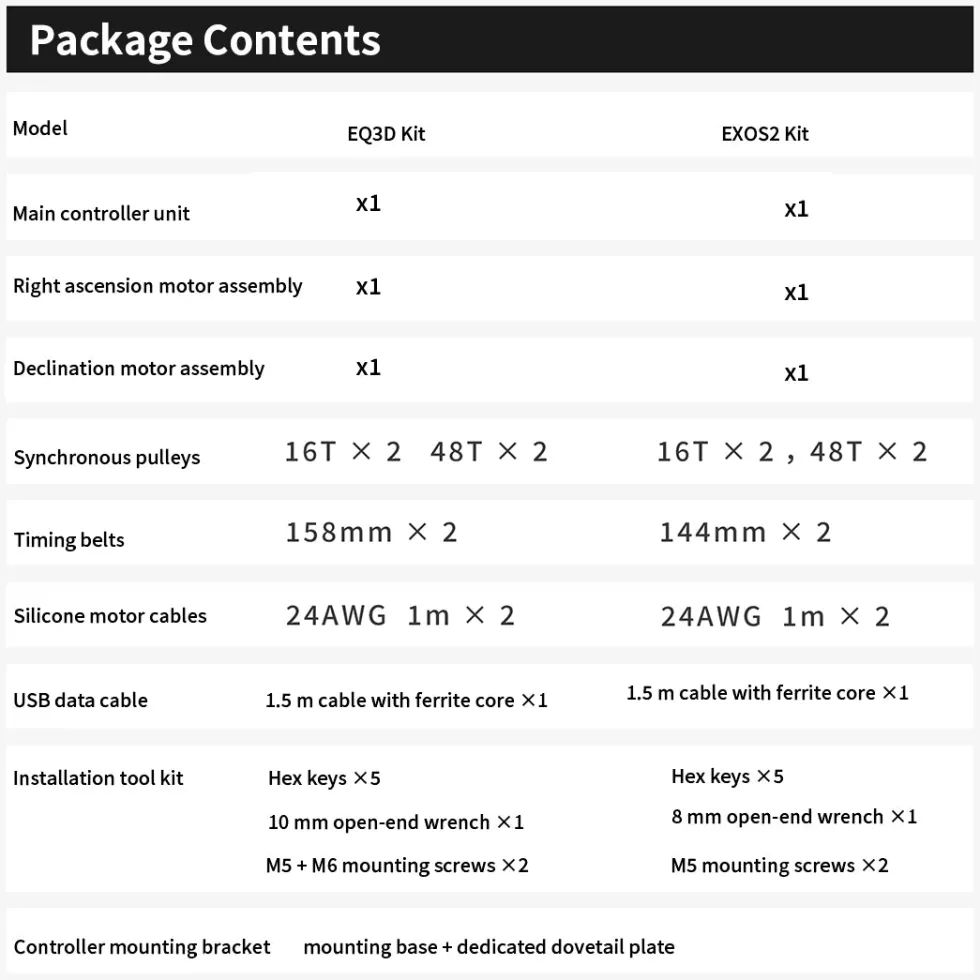

Packing List:

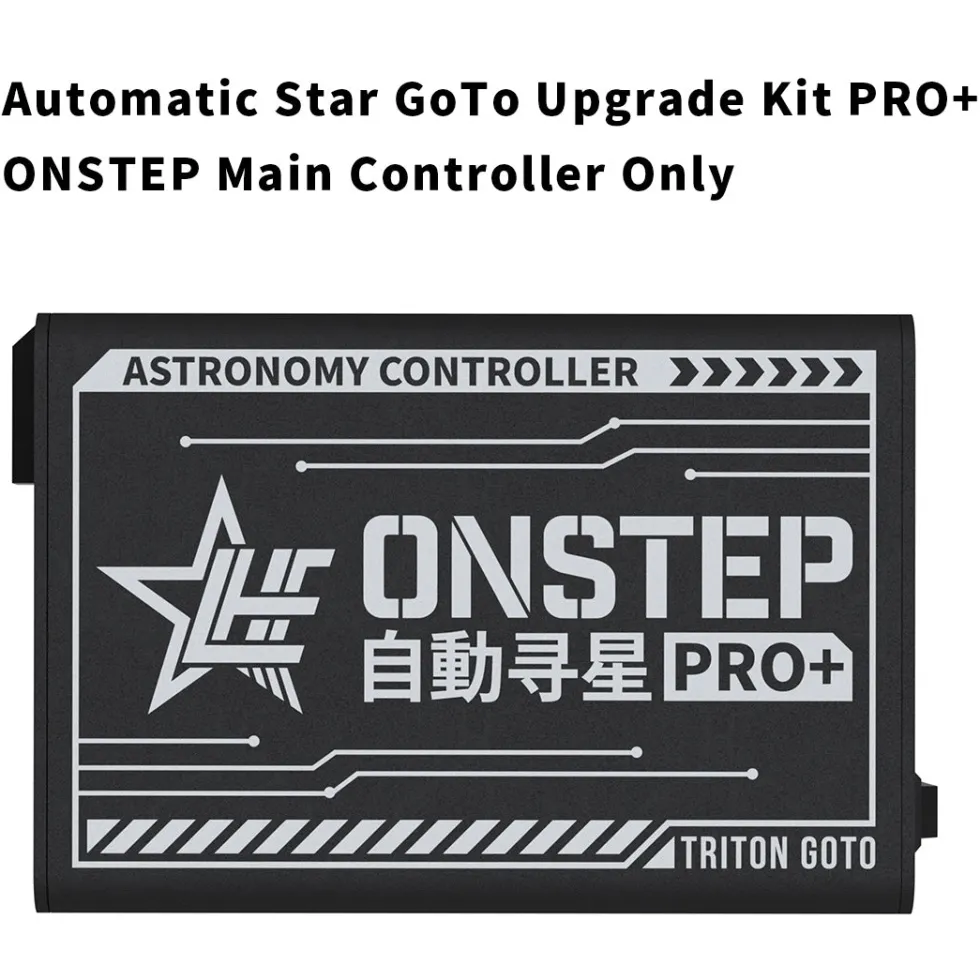

.Main Controller Unit *1
.Right Ascension Motor Assembly *1
.Declination Motor Assembly *1
.Synchronizer Pulleys: 16T *2, 48T *2
.Synchronizer Belt 158mm *2
.Silicone Motor Cable 24AWG 1m *2
.USB Data Cable 1.5m with Ferrite Core *1
.Installation Tool Kit: Allen Wrench *5, 10mm Open-End Wrench *1, M5 + M6 Fixing Screws *2
.Main Controller Mounting Kit: Connector + Dedicated Dovetail Plate
