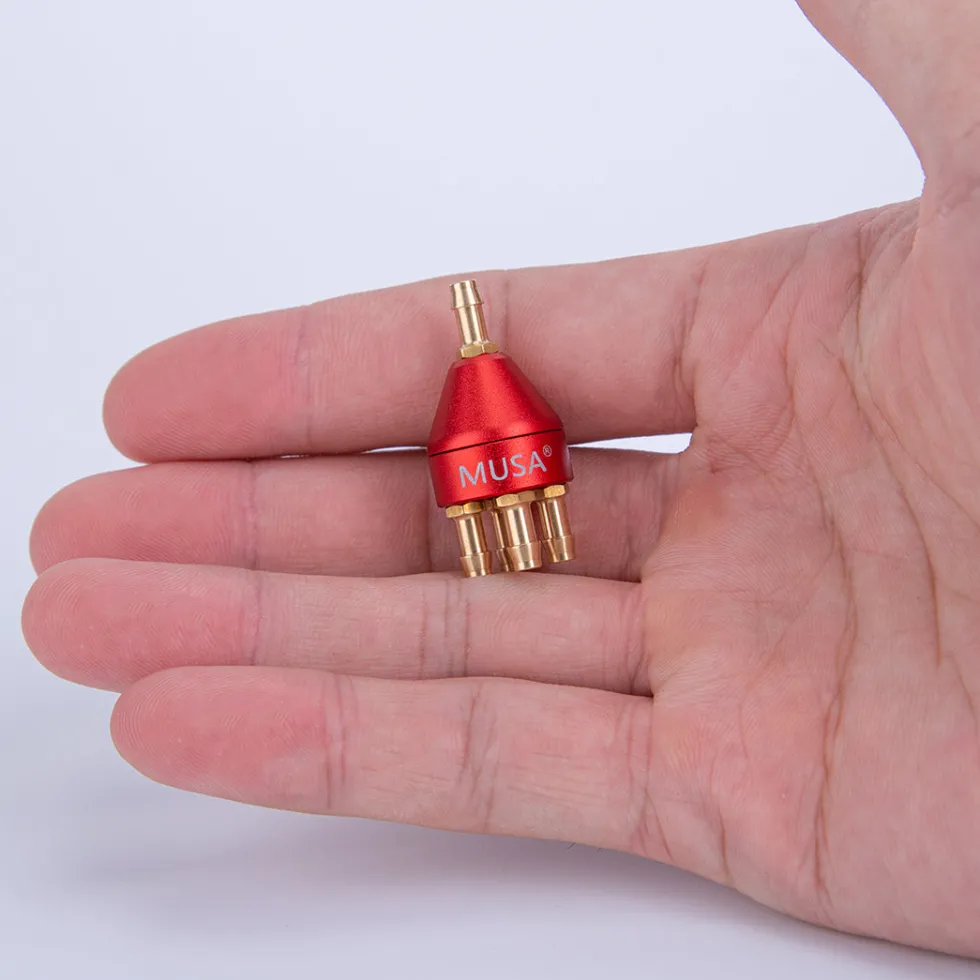

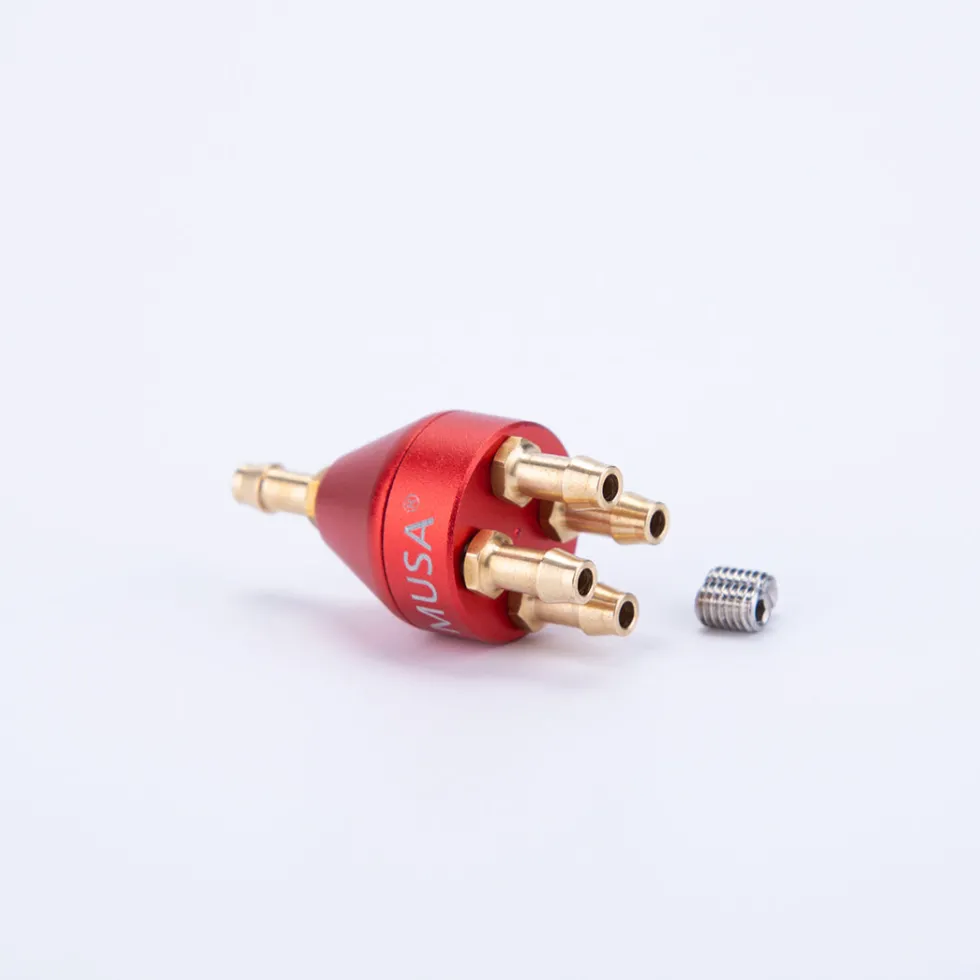

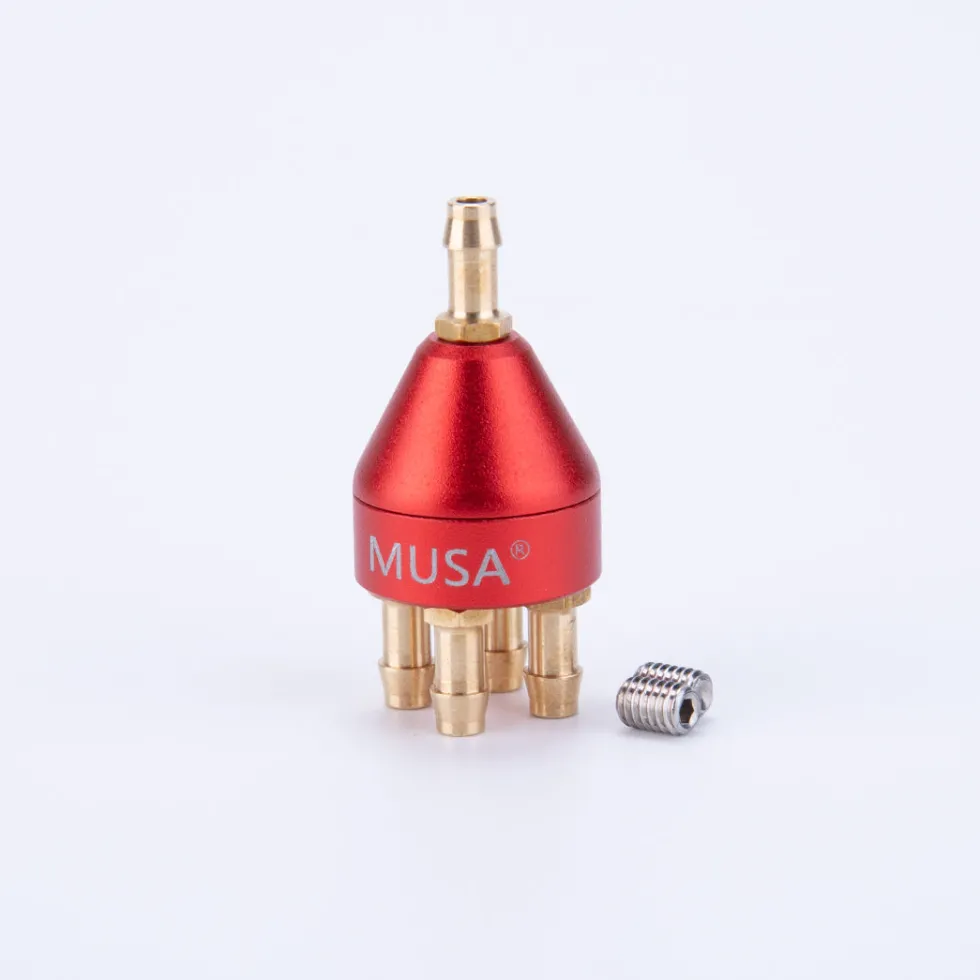

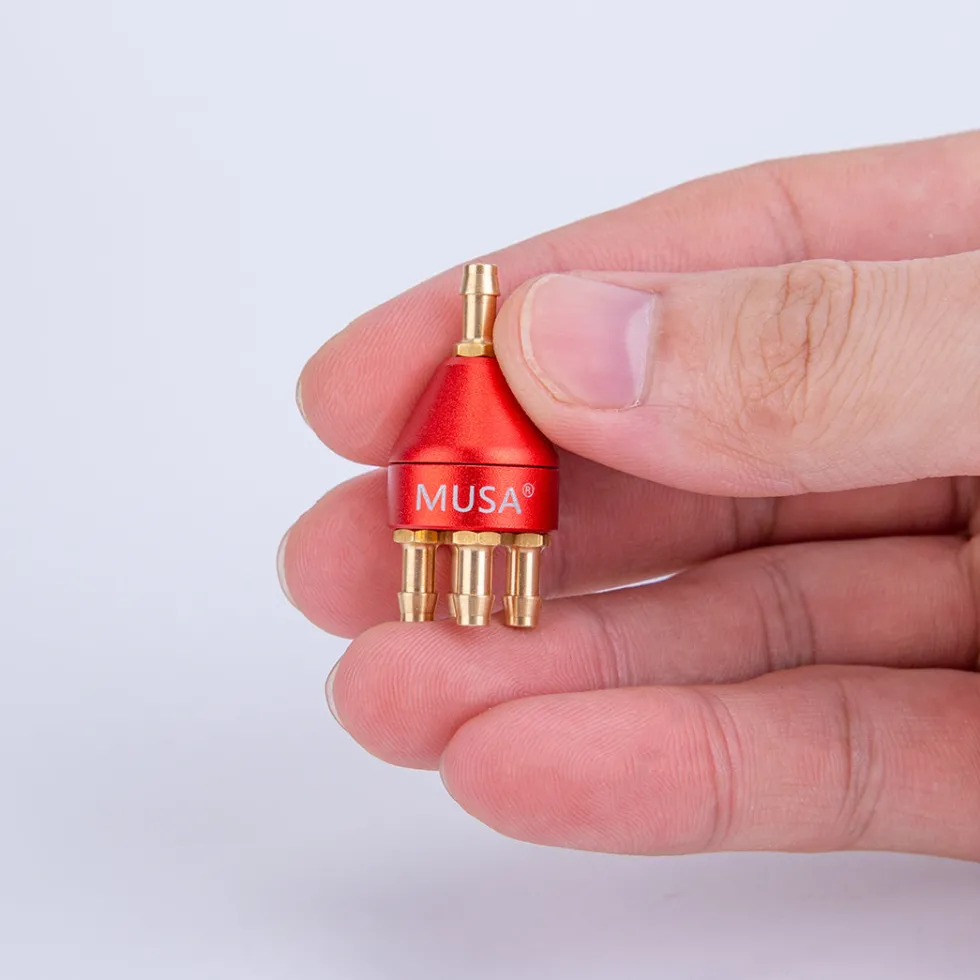

MUSA Metal One and Four Oil Passer Oil Diverter Connector with Strainer

MUSA Metal One and Four Oil Passer Oil Diverter Connector with Strainer

Features:

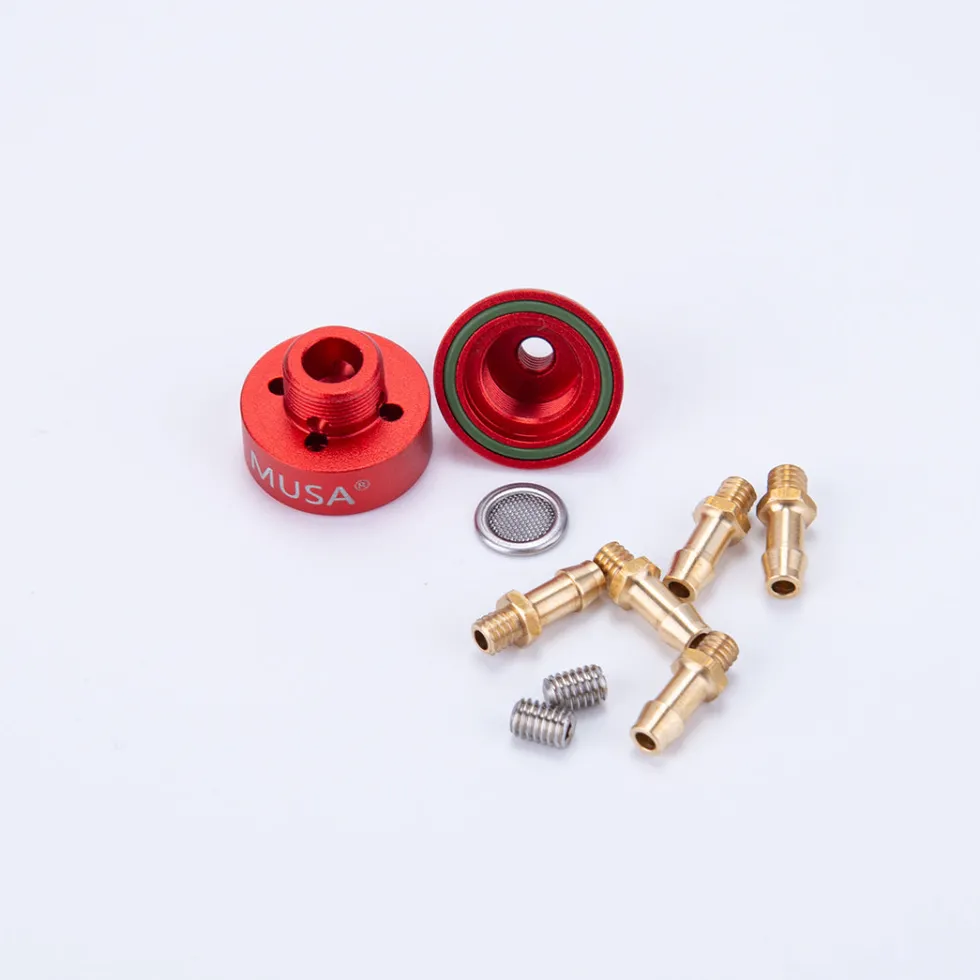

1、Excellent effect: the oil passer contains a sealing O-ring, good sealing, no oil leakage; and contains a metal filter, good fuel filtering effect; equipped with 2 screw plugs, can be used to plug the fuel nozzle.
2、Applicable range: The diverter nozzle has an outer diameter of 3mm, suitable for use with a fuel pipe with an inner diameter of 3mm and an outer diameter of 5mm; it can be used for four/eight cylinder fuel engine models, playing the role of dividing the fuel pipe oil circuit into four.
3、Excellent quality: Made of full metal, sandblasted and oxidized surface with colour treatment, not easy to damage, corrosion resistant, long service life.
4、Warm tip: Before using the oil passer to connect to the fuel pipe, check the thread sealing to avoid leakage.

Specifications:：

Material: metal;
Colour: as shown;
Weight: 8.3g;
Dimensions: 34*16*16mm;
Total length of the nozzle: 12mm (thread length 3mm);
External diameter of the nozzle: 3mm;
Screw plugs: 2pcs, length 5mm;
Applicable age: 14+;

Packing list:

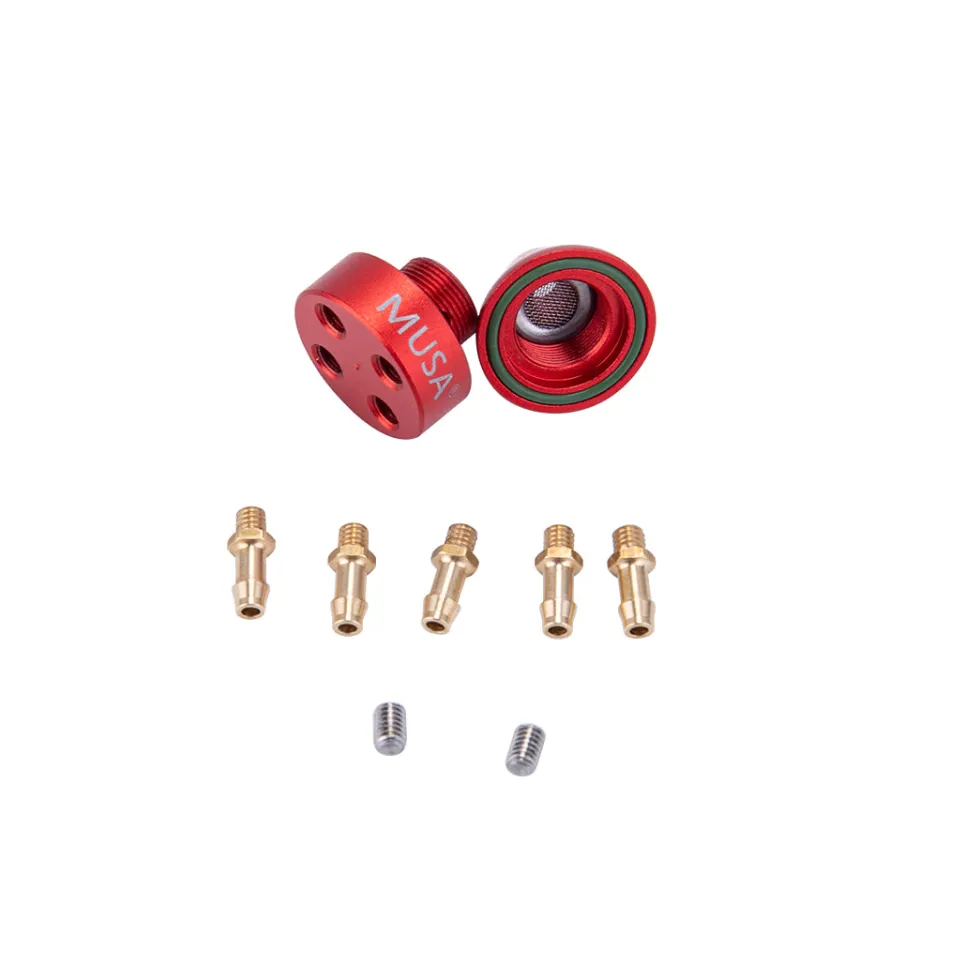

One tow four oil diverter*1, screw plug*2
