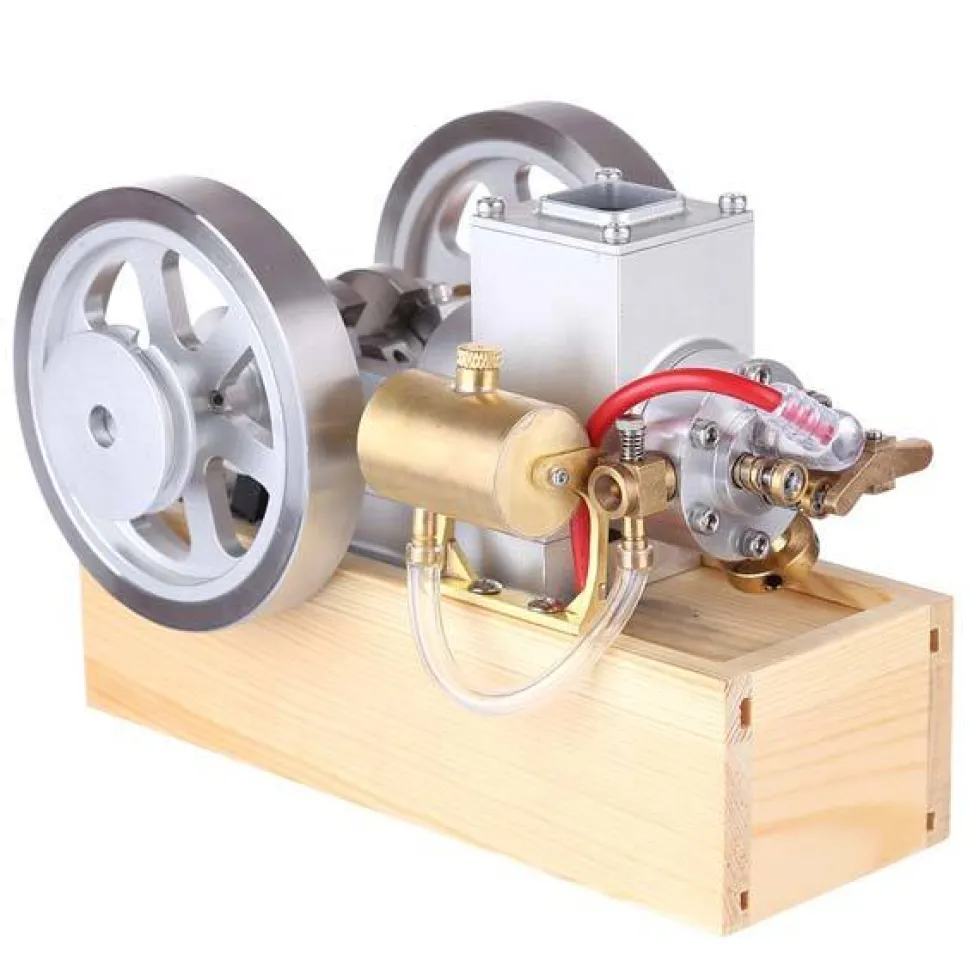

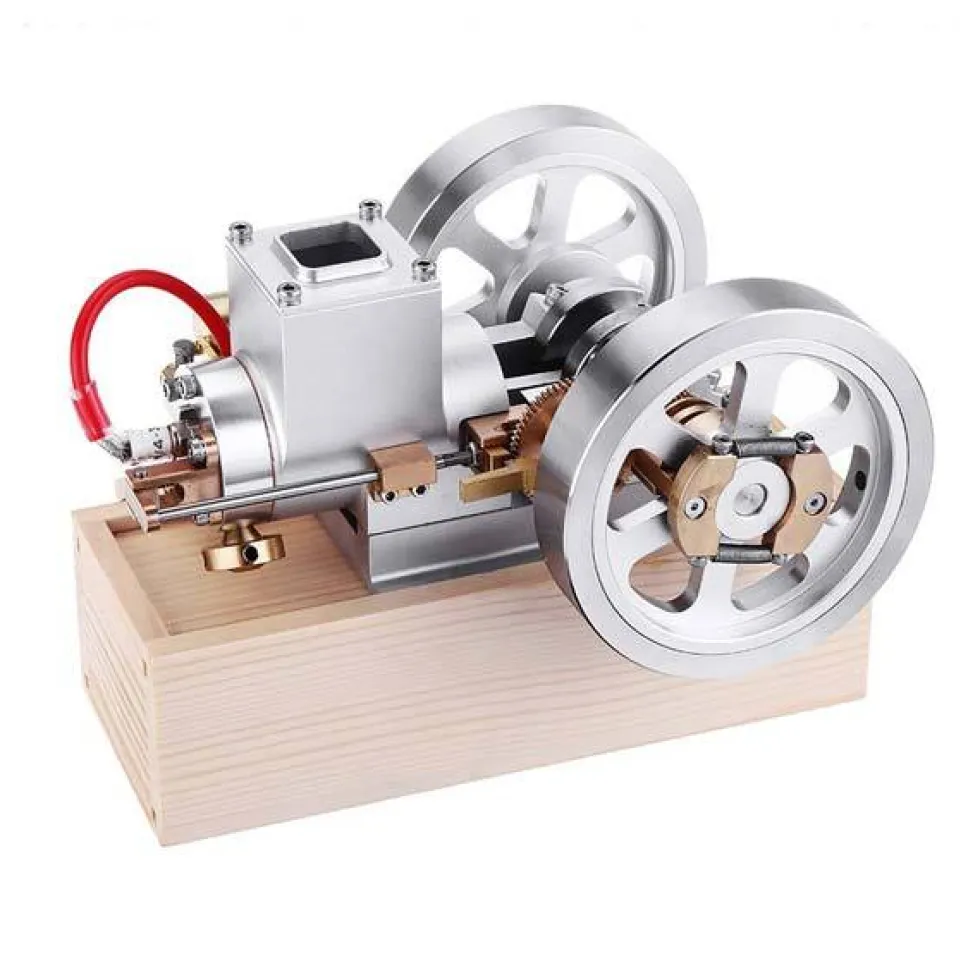

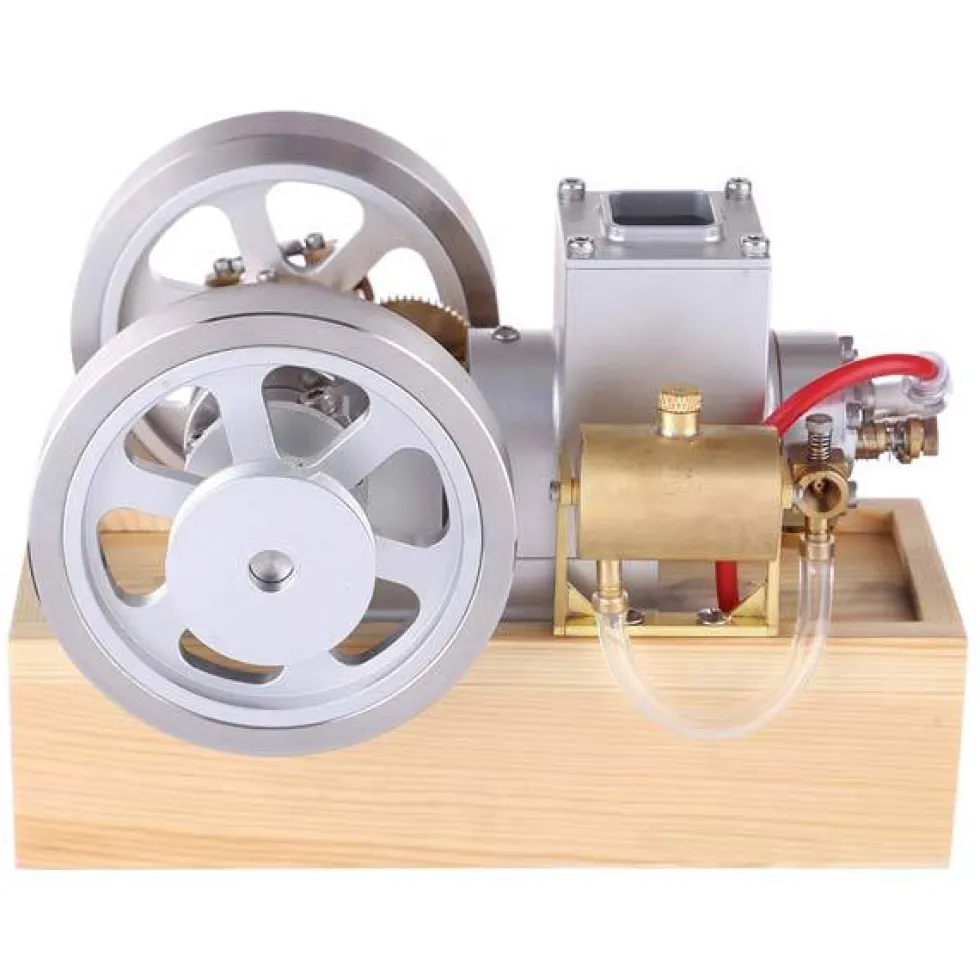

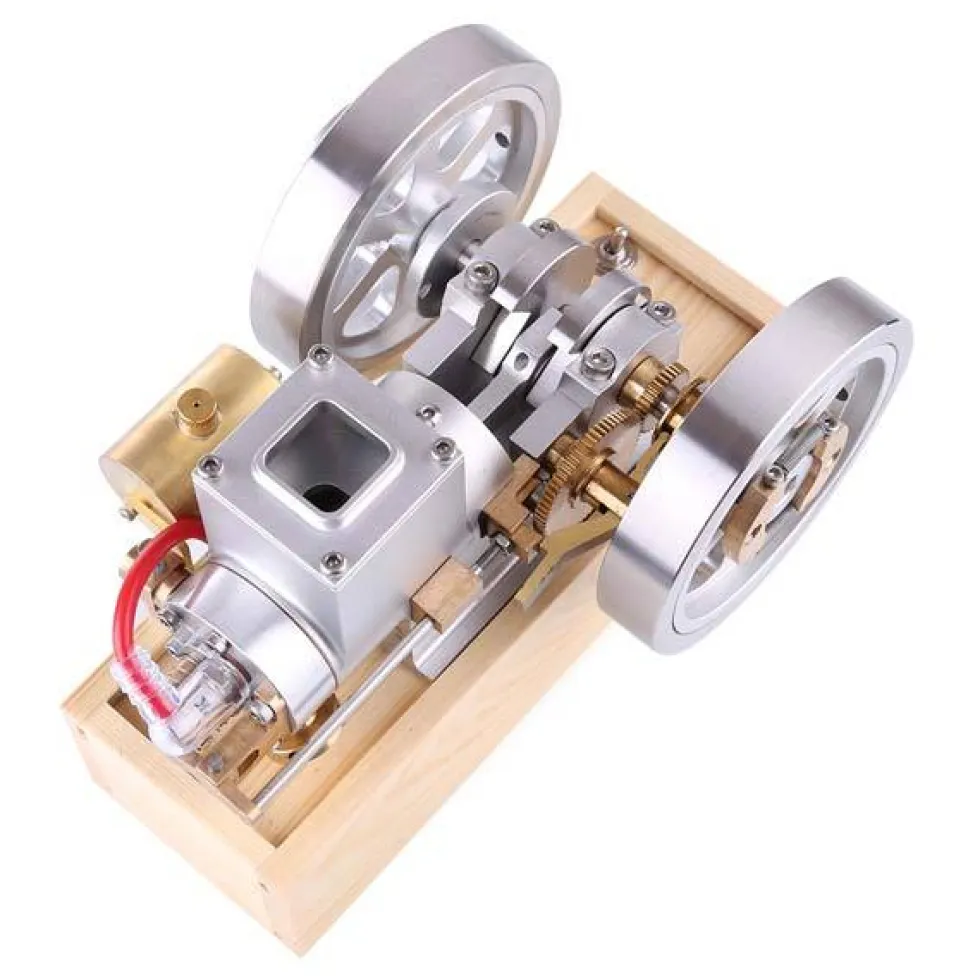

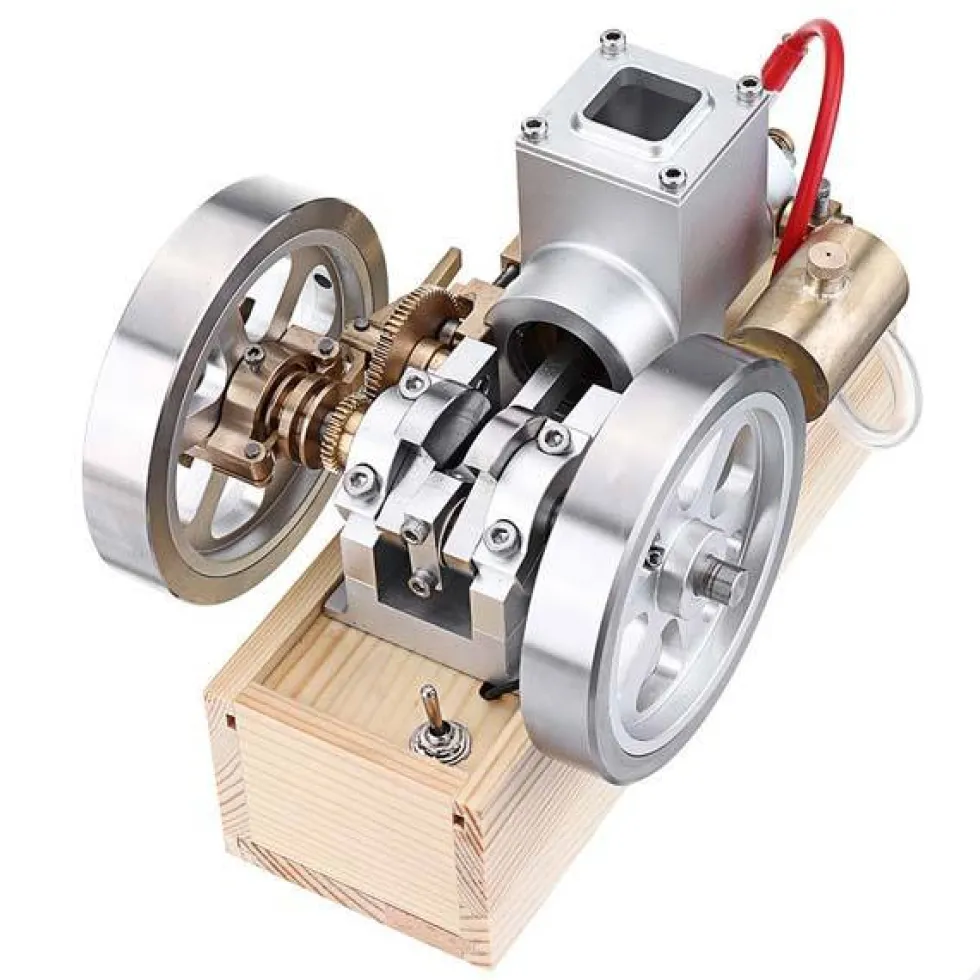

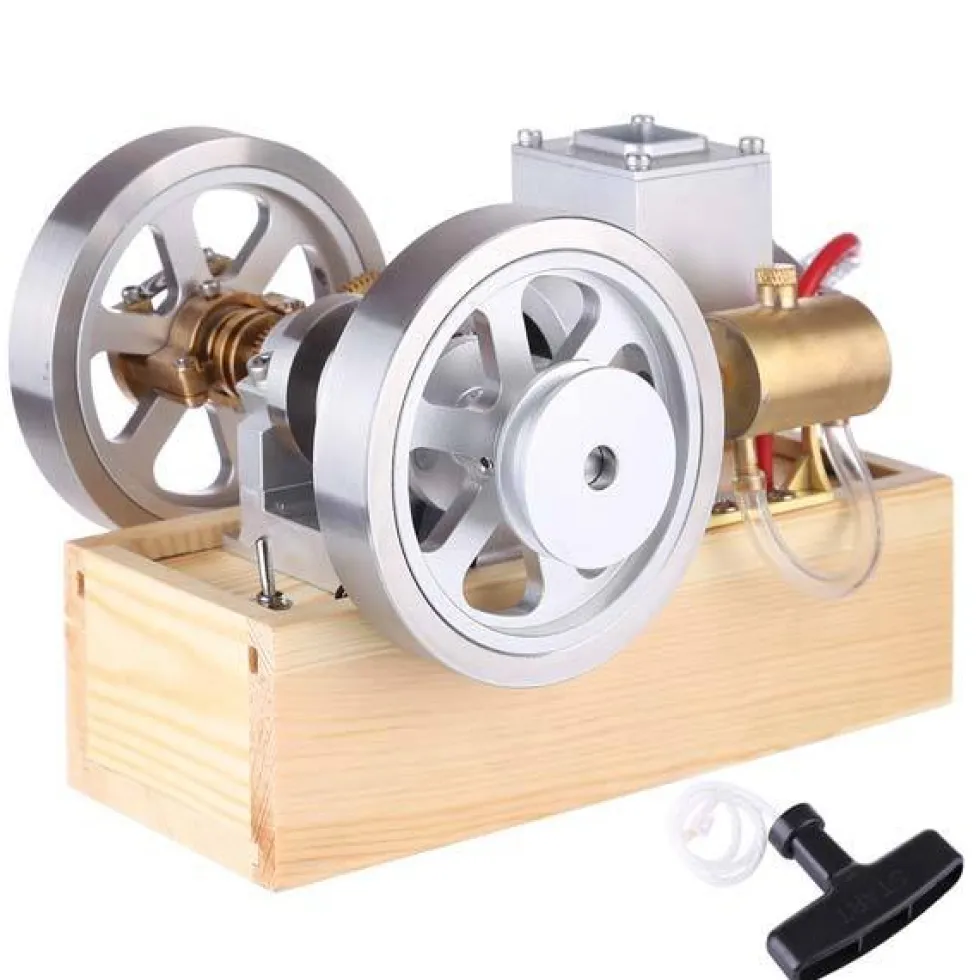

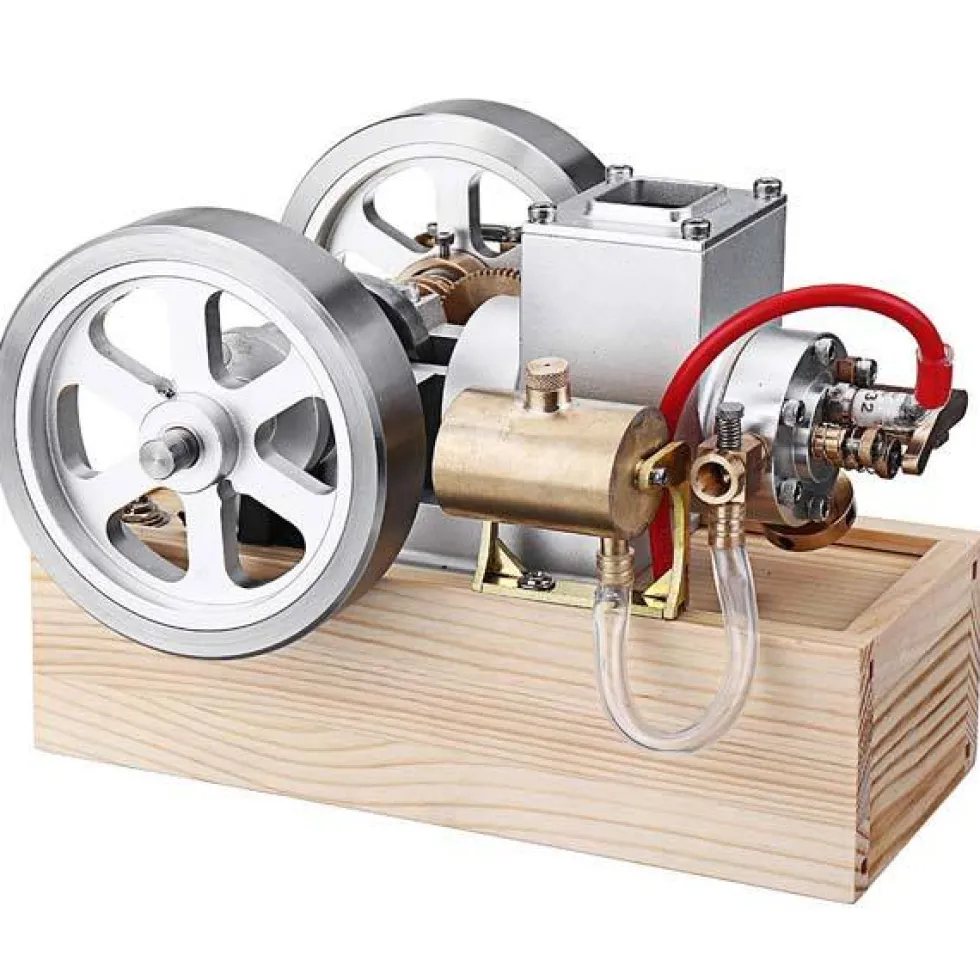

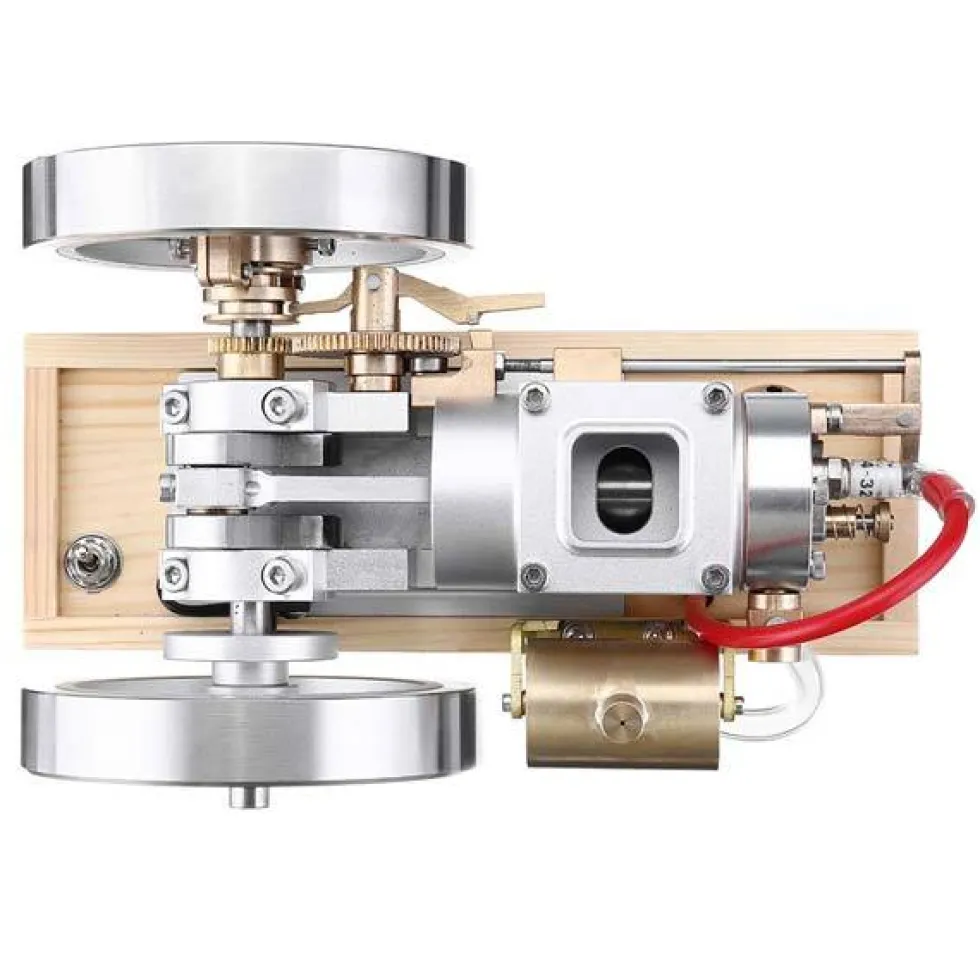

M90 Upgrade Hit & Miss Gas Engine Full Metal IC Engine With Base Collection Gift

Upgrade Hit & Miss Gas Engine Full Metal IC Engine With Base Collection Gift

A hit-and-miss engine is a type of four-stroke internal combustion engine that is controlled by a governor to operate at a set speed.
This is a upgraded hit and miss engine. Equipped with wooden base, easy placement and operation.

Description:
Item Name: Hit & Miss Gas Engine
Color: Sliver
Material: Aluminium Alloy
Weight: About 2.2kg(Engine+Wooden Base)
Size Of Engine: 180*125*75mm(L*W*H)
Size Of Wooden Base: 180*66*50mm(L*W*H)
Cylinder Diameter: 22mm
Ltinerary: 20mm
Voltage: 3.5V
Fuel: Kerosene or Gasoline
The best tappet clearance: 0.5mm
Weight: 1610g
Revolutions Per minute:1200rmp

Engine Startup Steps:

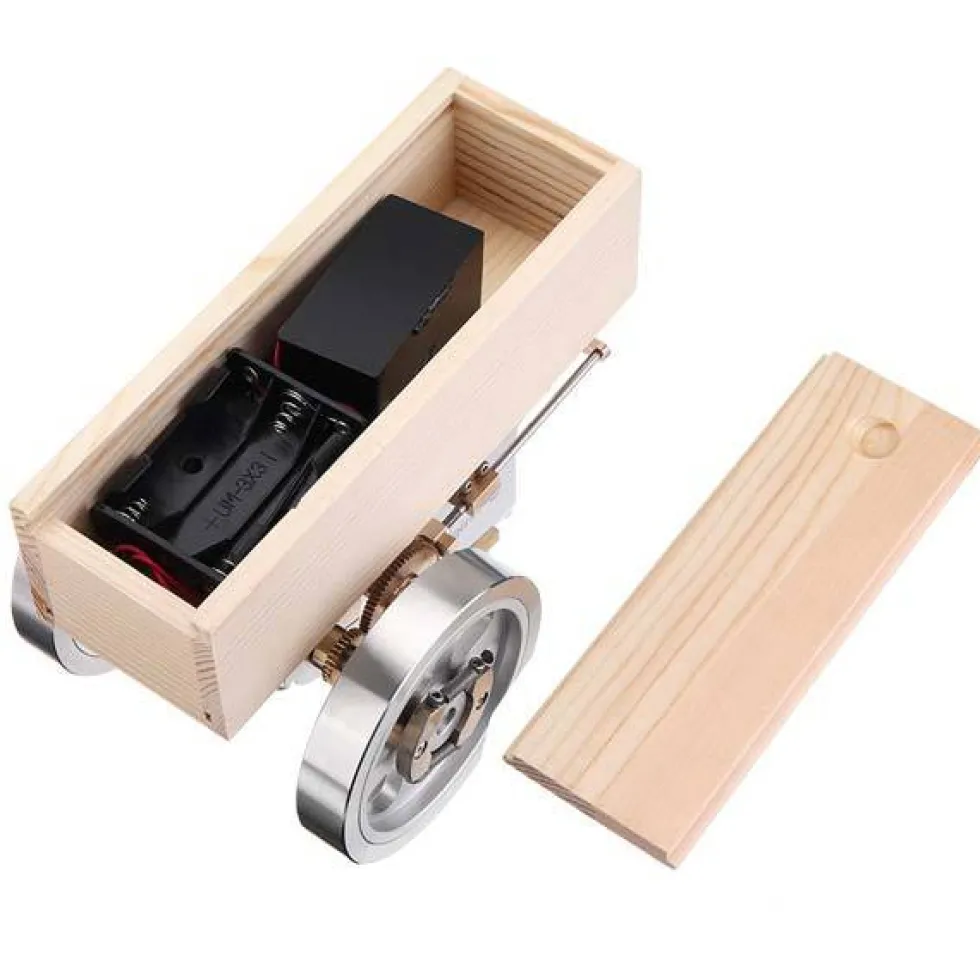

1. Open the bottom of base to check the wiring of the engine, connect the fuel tank piep, and install 3 AA batteries.
2.Fill the fuel tank with gasoline(95#). When the filling is completed, make sure there’s no air in the oil pipe.
3.On the right side of the engine(installation of the flying hammer position), slowly turn counterclockwise by hand to buy more than one turn.Its role can make the mixed gasoline fully enter the cylinder.

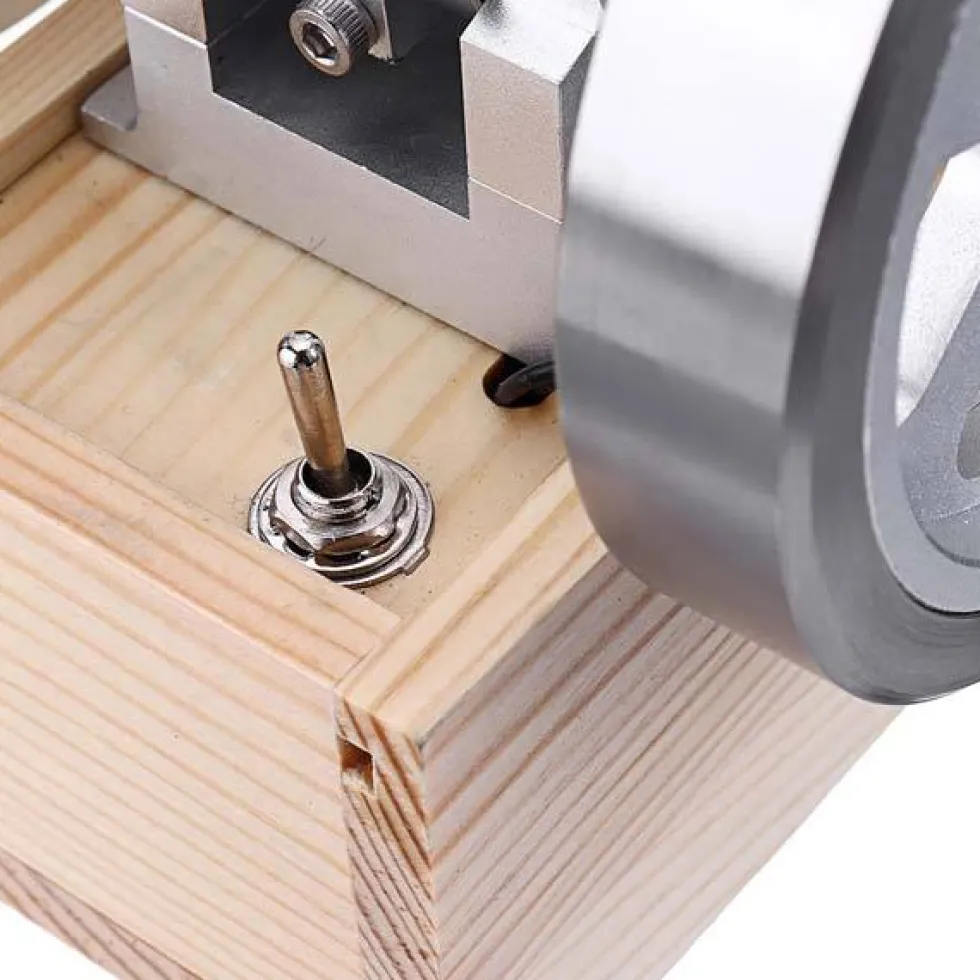

4.Turn on the power switch and turn the flywheel to start the engine counterclockwise on the right side of the engine(installing the flying hammer position)

Precautions:
1.If the ignition device is normal and the cylinder is under normal compression, if the machine still does not start normally, it’s very likely that the carburetor needle should be adjusted.
2.Screw the screw on the top of the carburetor, then loosen 1/4 turn, start the flywheel. This can be done several times to make the mixing ratio gasoline and air reach the normal working mix ratio.

Note:
1.Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
2.Please allow little differs due to manual measurement.
3.Kids should be accompanied by adult.
4.Kids under 8 are not recommended to play.
5.Please be careful when you add the fuel.
6.An O-ring, which is not so airtight and can be started better

Package Included:
1 X Hit & Miss Gas Engine (With Base)
