M19 1.6cc Mini SAM Hit and Miss 4 Stroke Vertical Gas Engine Internal Combustion Engine Model with Flying Ball Speed Limiter

M19 1.6cc Mini SAM Hit and Miss 4 Stroke Vertical Gas Engine Internal Combustion Engine Model with Flying Ball Speed Limiter

Features:

Miniature engine based on a reduced and modified version of Bob Shores Silver Angel design.
Adopts an air-cooled cooling structure and has a flying ball speed limit structure. The engine is carefully crafted from brass and stainless steel, with a wooden base for easy placement and operation.

More Details:

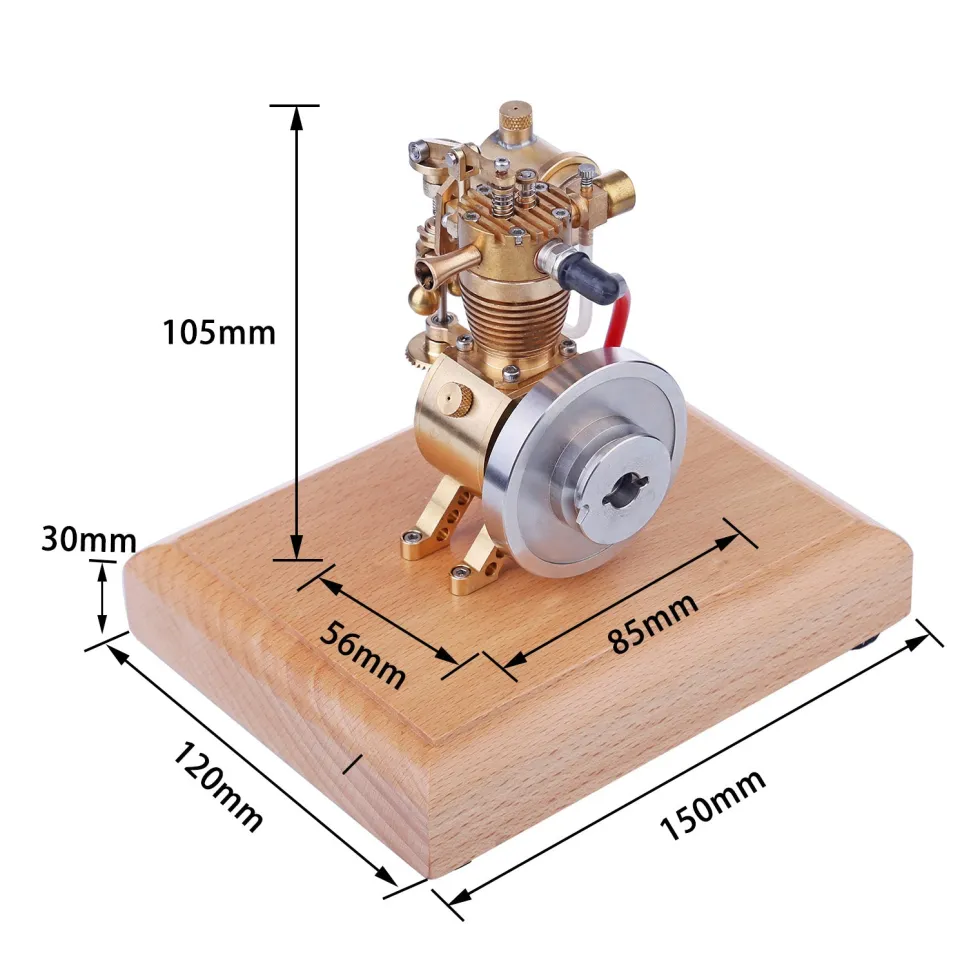

Overall size: 150*120*135mm
Engine size: 85*70*105mm
Wooden base size: 150*120*30mm
Weight: 1000g
Displacement: 1.6CC
Cylinder diameter: 13mm
Stroke: 12mm
Flywheel diameter: 56mm

Well-manufactured:
The engine is unique and exquisite in shape, stable and reliable in structural design, high in quality, excellent in craftsmanship, and stable in performance. This is a very distinctive desktop model engine, simple and fun to operate, you will feel the unique charm brought by the engine’s mechanical operation.

Steps to start the engine:
1. Check the engine wiring from the wooden base, connect the fuel tank oil pipe, and install 3 AA batteries (4.5V).
2. Fill the fuel tank with 95# gasoline. The flywheel rotates clockwise multiple times on the right side of the engine (the surface of the power switch), its function can make the mixed fuel completely enter the cylinder, ensuring that there is no air in the fuel pipe.
3. Turn on the power switch, and then quickly turn the flywheel clockwise to stop the engine Start the engine on the right side (surface of the power switch).

Note:
1. If the ignition device and the cylinder concentration are normal, but the machine cannot start normally, it is needed to adjust the carburetor oil needle.
2. After tightening the main oil needle on the carburetor, loosen 1 /4 turns and start the flywheel to make the mixing ratio of gasoline and air reach the normal working mixing ratio.
3. When the machine stops running, turn off the power switch.

Excellent model gift:
To feel the charm of the amazing mechanical craftengine when it is working. A super treat for yourself, birthday present or holiday gift idea for friends, family.

Recommended Age:
14 years old and up

Specifications:
.Color: As Shown
.Material: Brass + Stainless Steel + Wood
.Product Dimensions: 15 x 12 x 13.5cm
.Product Weight: 1000g
.Package Dimensions: 20 x 20 x 20cm
.Package Weight: 1300g
.Packing: Box

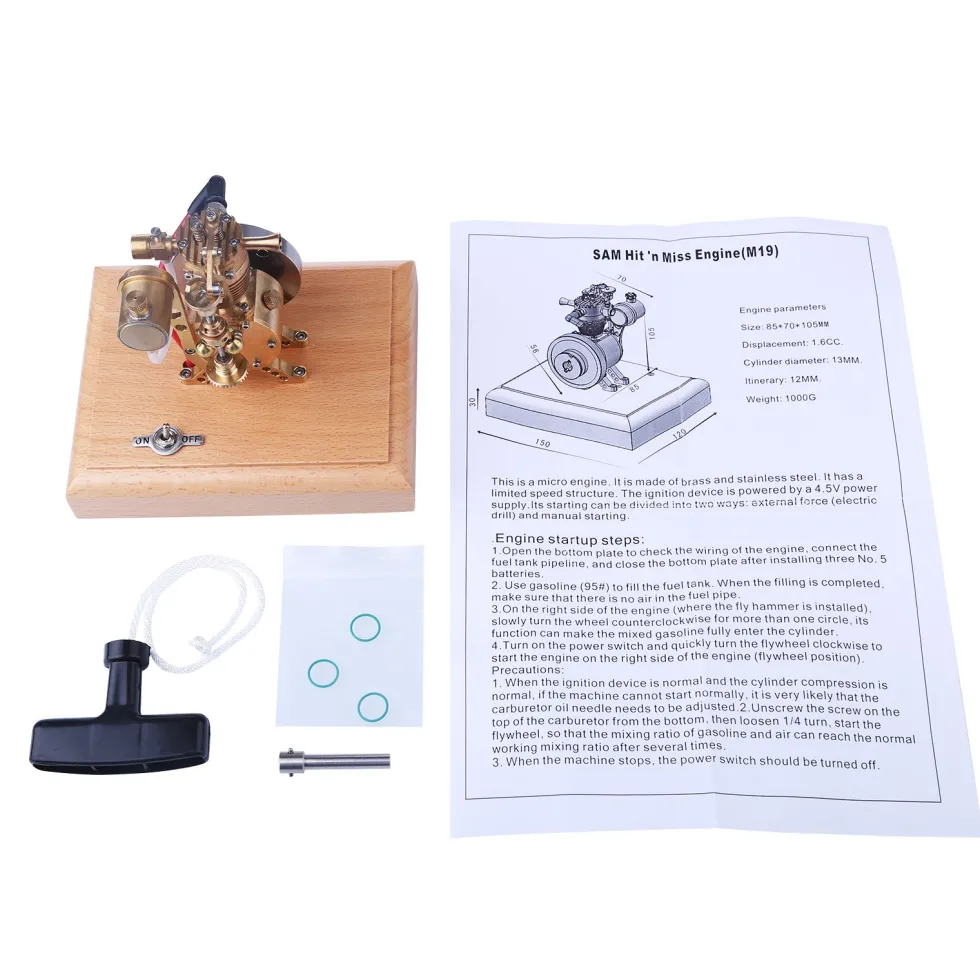

Package Content:
.1 x Engine
.1 x Hand Puller
.1 x Manual
