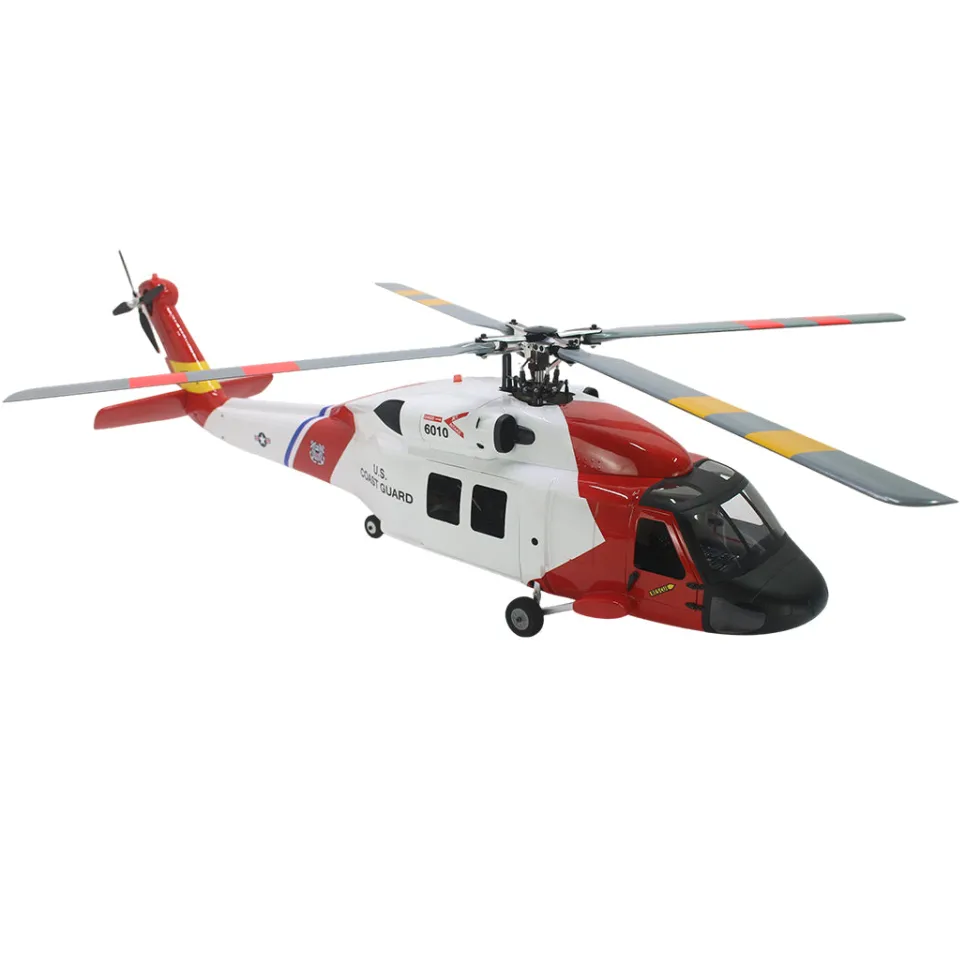

FLISHRC FL500 HH-60 Jayhawk Coast Guard 500-Class 2.4GHz 6CH Scale RC Helicopter with L7 Flight Controller, 4-Mode GPS Positioning, Realistic Cockpit – RTF Remote Control Helicopter

FLISHRC FL500 HH-60 Jayhawk Coast Guard 500-Class 2.4GHz 6CH Scale RC Helicopter with L7 Flight Controller, 4-Mode GPS Positioning, Realistic Cockpit – RTF Remote Control Helicopter

Product Features:

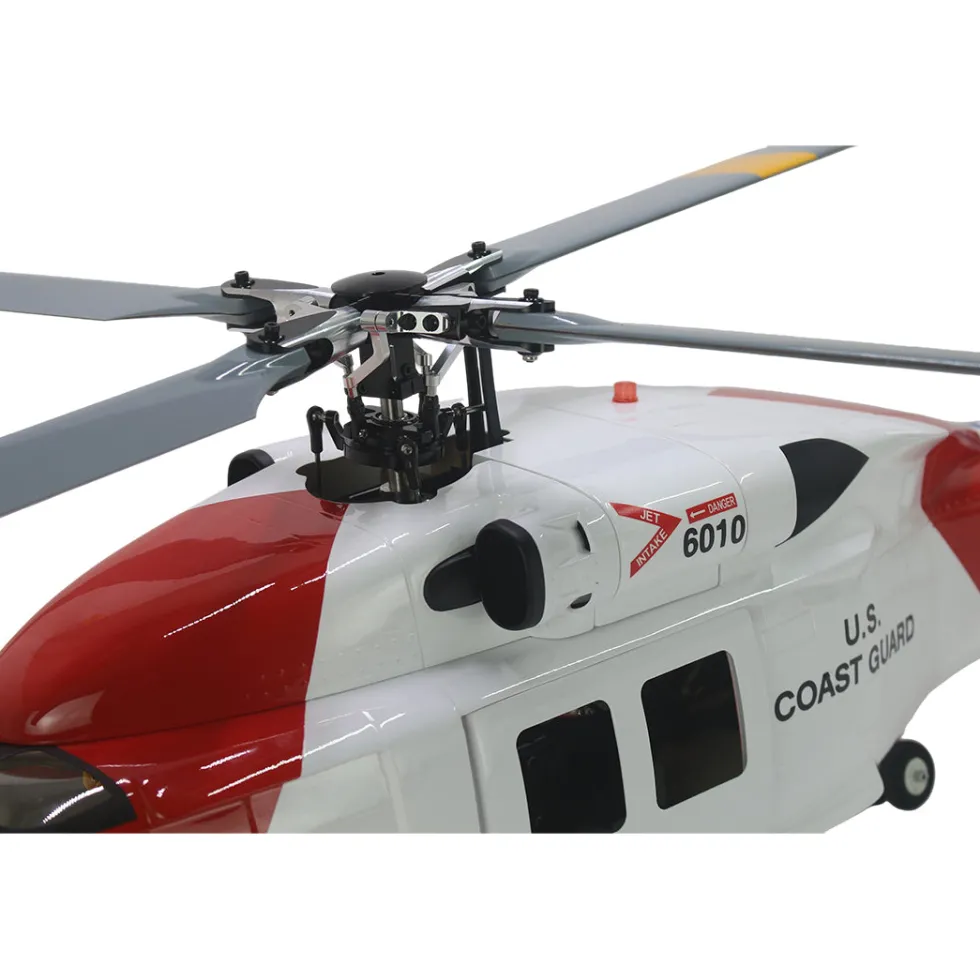

High-Precision Rotor Head:

CNC-machined high-precision DFC rotor head delivers enhanced visual appeal with its metallic finish. Superior precision effectively reduces in-flight vibration and wear. The DFC rotor head features a low center of gravity and compact structure for improved power performance.

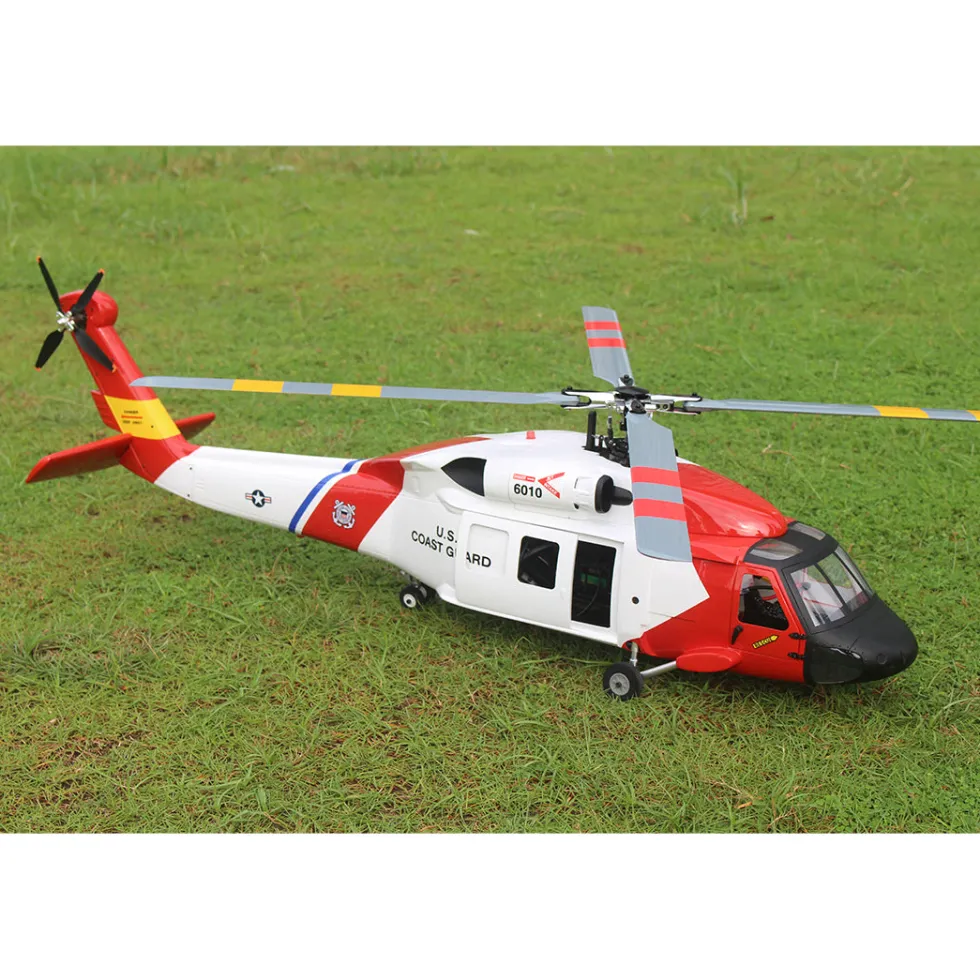

Highly Realistic Exterior Details:

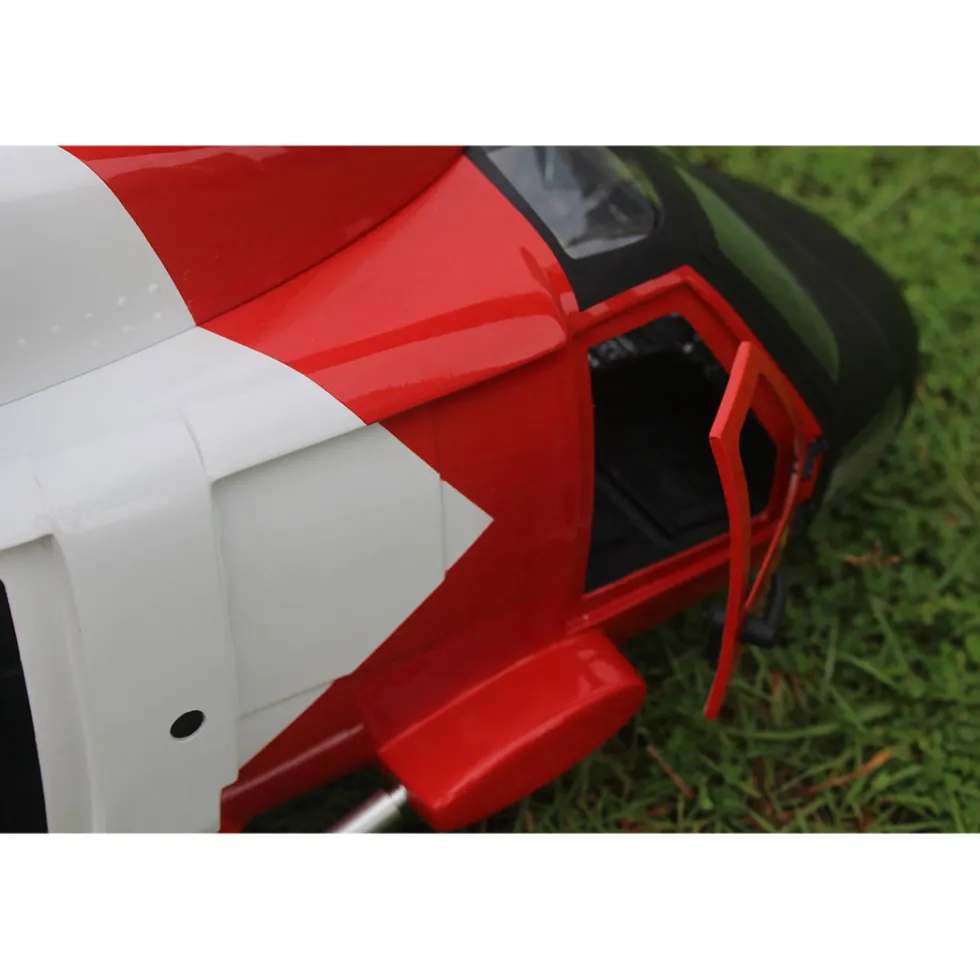

Faithfully recreates the HH-60 helicopter’s authentic appearance with near-scale exhaust ports, windows, windshields, and more, delivering unparalleled realism.

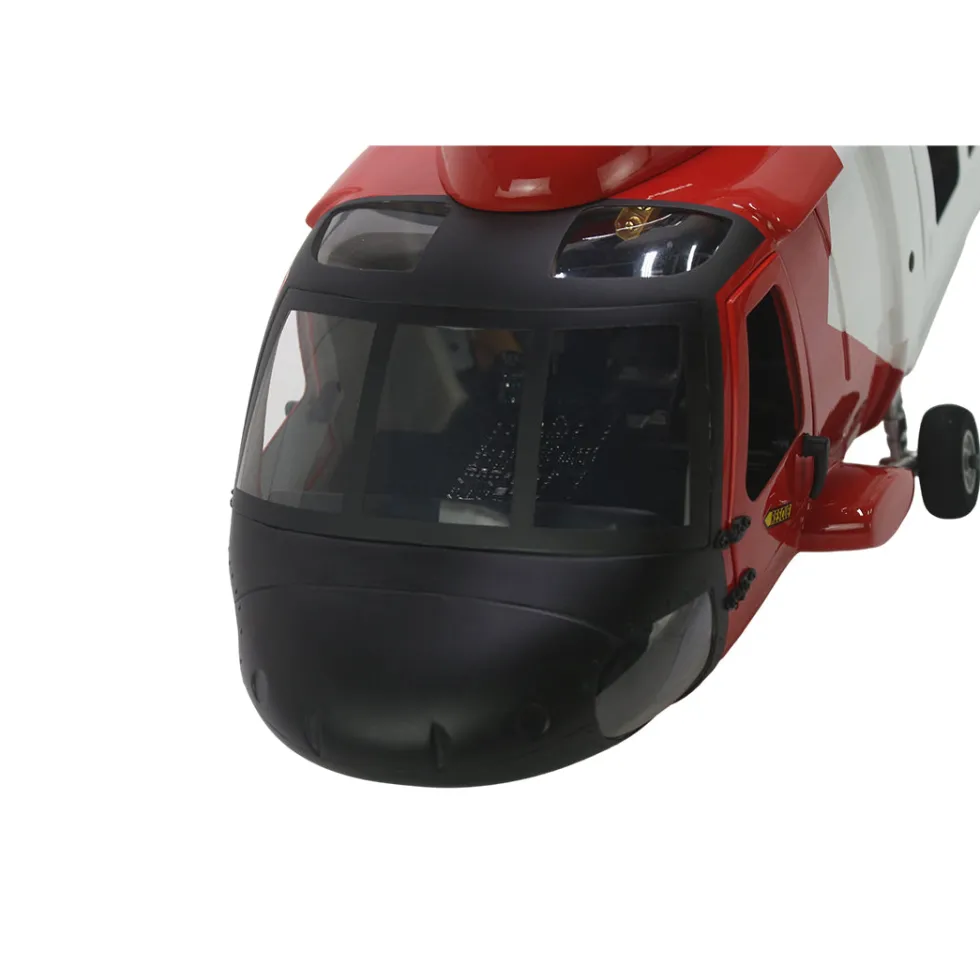

Authentic Cockpit Replication for Immersive Flight Experience.

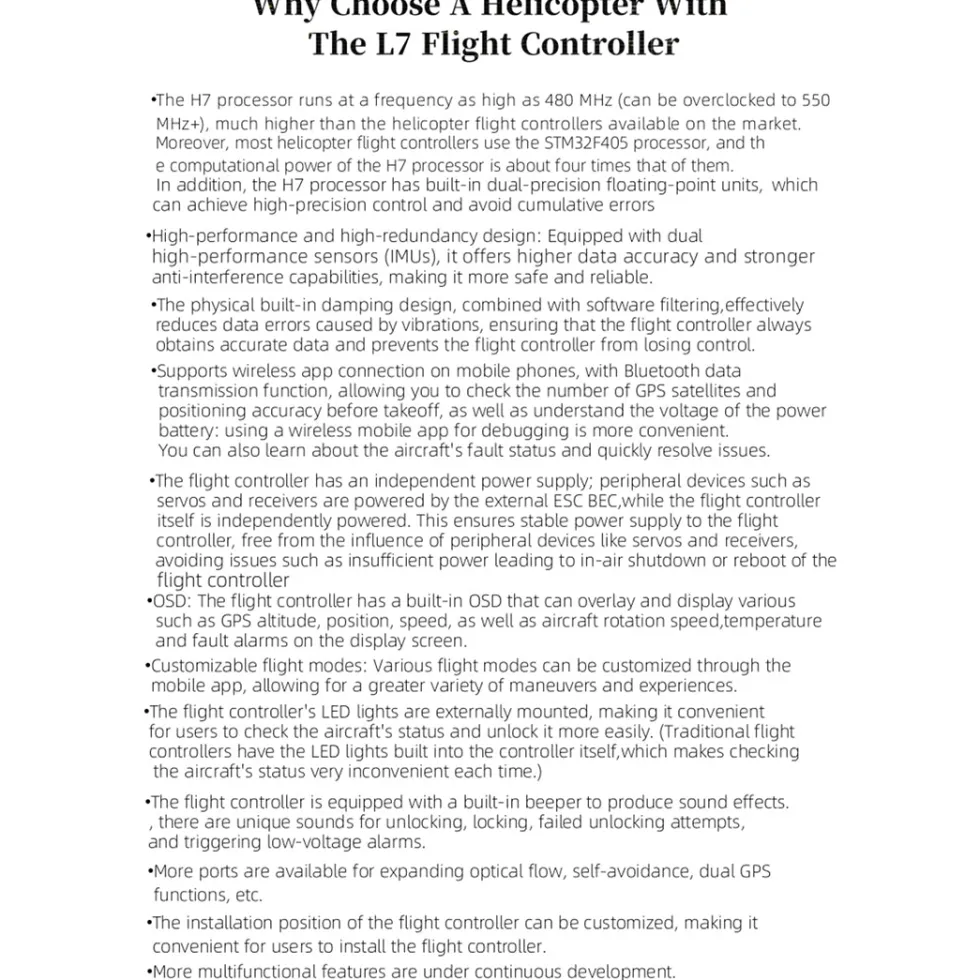

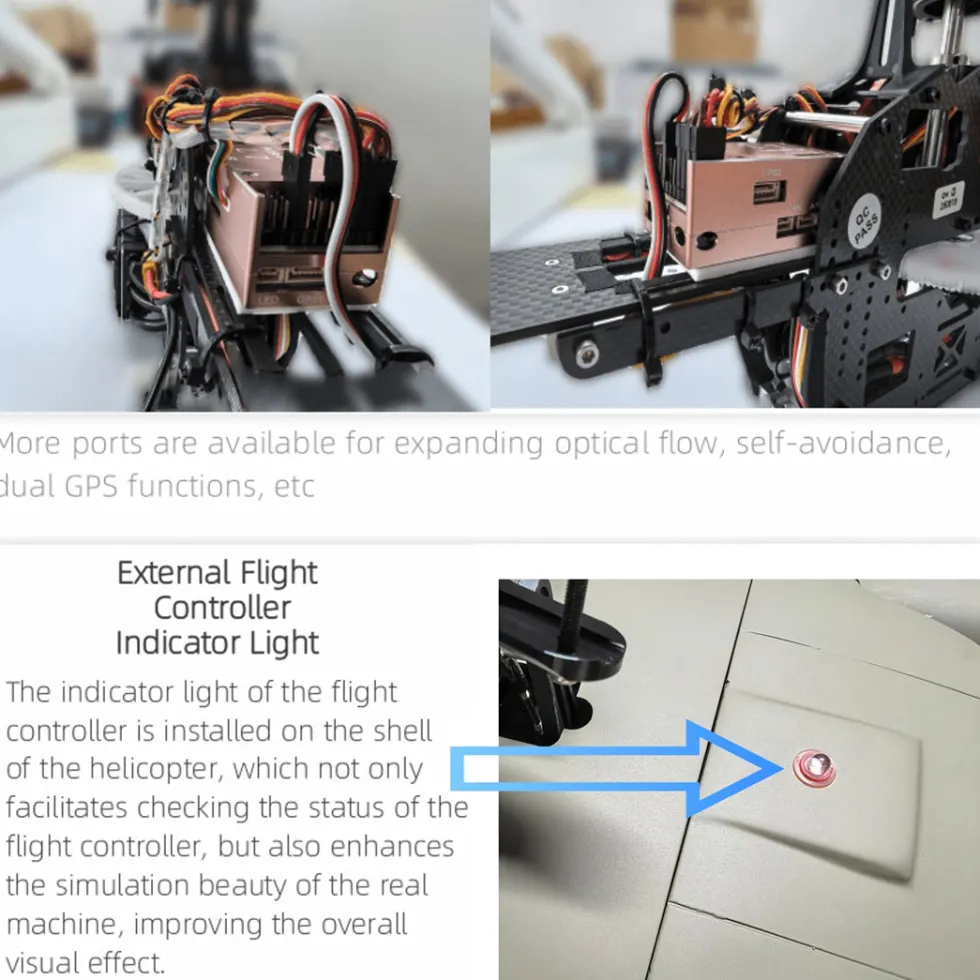

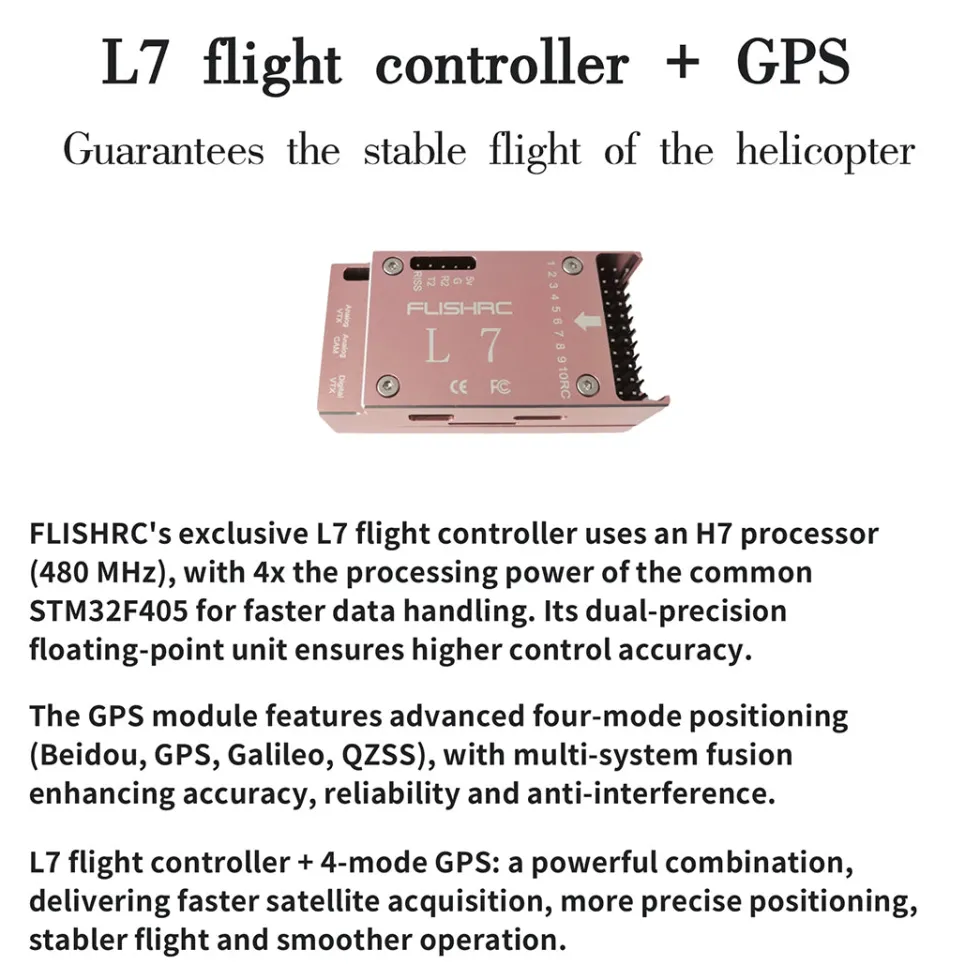

FLISHRC’s exclusive L7 flight controller. Powered by an H7 processor operating at 480MHz, its processing power quadruples that of the commonly used STM32F405 processors in other flight controllers, enabling significantly faster data processing. The H7 processor also incorporates a double-precision floating-point unit for higher-precision control.

The GPS positioning module supports advanced quad-mode positioning (BeiDou, GPS, Galileo, QZSS). By integrating multiple positioning systems, it significantly enhances positioning accuracy, reliability, and anti-interference capabilities. The L7 flight controller paired with quad-mode GPS delivers faster satellite acquisition, more precise positioning, more stable flight, and smoother operation.

Altitude Hold, Stationary Flight, Beginner-Friendly:

Leveraging the L7 flight controller’s high-precision calculations and GPS positioning, the helicopter effortlessly achieves self-stabilizing flight and altitude/position holding. Simply push the stick to move, release it to hover. No additional adjustments are needed to control the helicopter’s flight attitude. Beginners can effortlessly experience the thrill of flight, while experienced pilots can finally ditch cumbersome maneuvers and fully enjoy the elegant flight posture reminiscent of real helicopters.

High-Performance Sensor Board Dual-Channel IMU:

Equipped with dual ICM42688P IMUs and an SPL-06 barometer, this high-performance, highly redundant design delivers superior data accuracy and enhanced interference resistance for greater safety and reliability. Built-in shock absorption effectively minimizes vibration-induced data errors, ensuring the flight controller consistently receives precise data. Bluetooth parameter tuning support enables more convenient debugging.

Specifications:

Power Type: Electric
Airframe Material: Fiberglass Reinforced Plastic (FRP)

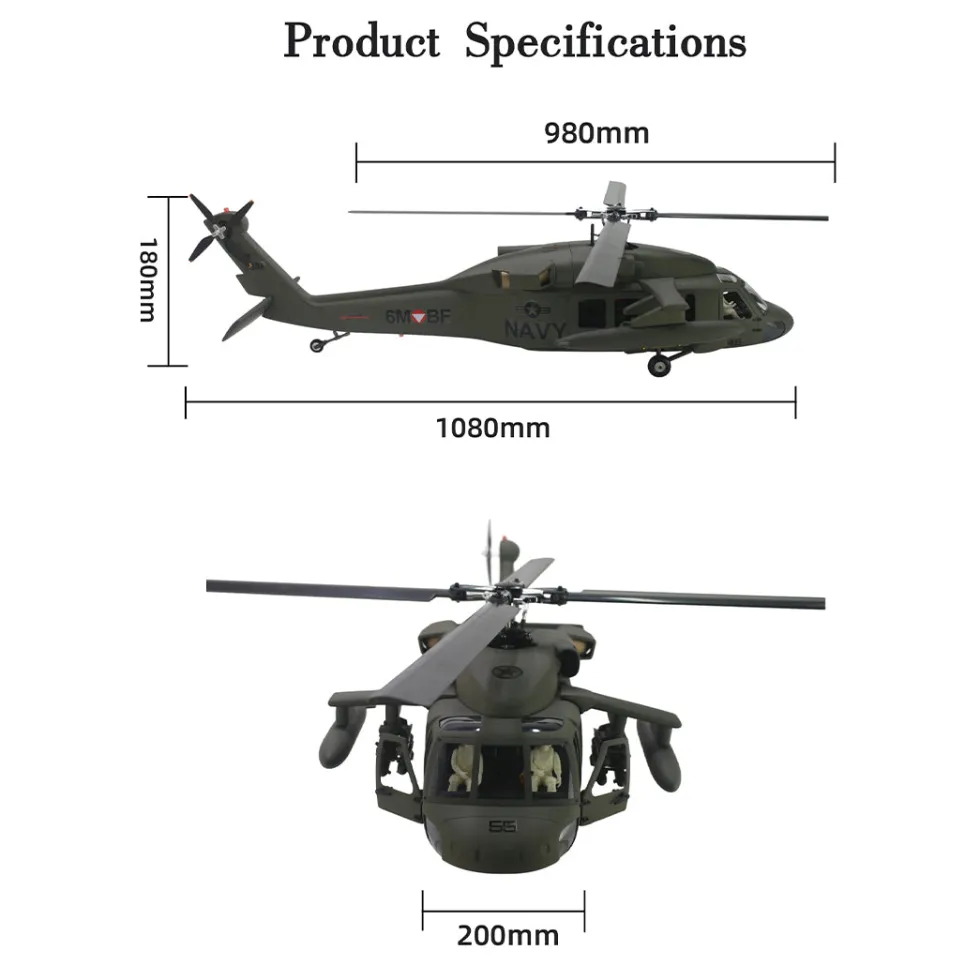

Airframe Dimensions: 1080*200*180mm
Main Rotor Diameter: 980mm
Tail Rotor Diameter: 168mm
Tail ESC: 35A Tail ESC
Motors: FLISHRC High-Performance Main Motors
Flight Controller: FLISHRC L7 FC
Motor Control: FLISHRC 85A ESC
Servos: FLISHRC FL390 Full-Metal Servos
Battery: 4300mAh 6S 25C
Flight Time (Hover): Approx. 12 minutes
Recommended Environment: Outdoor

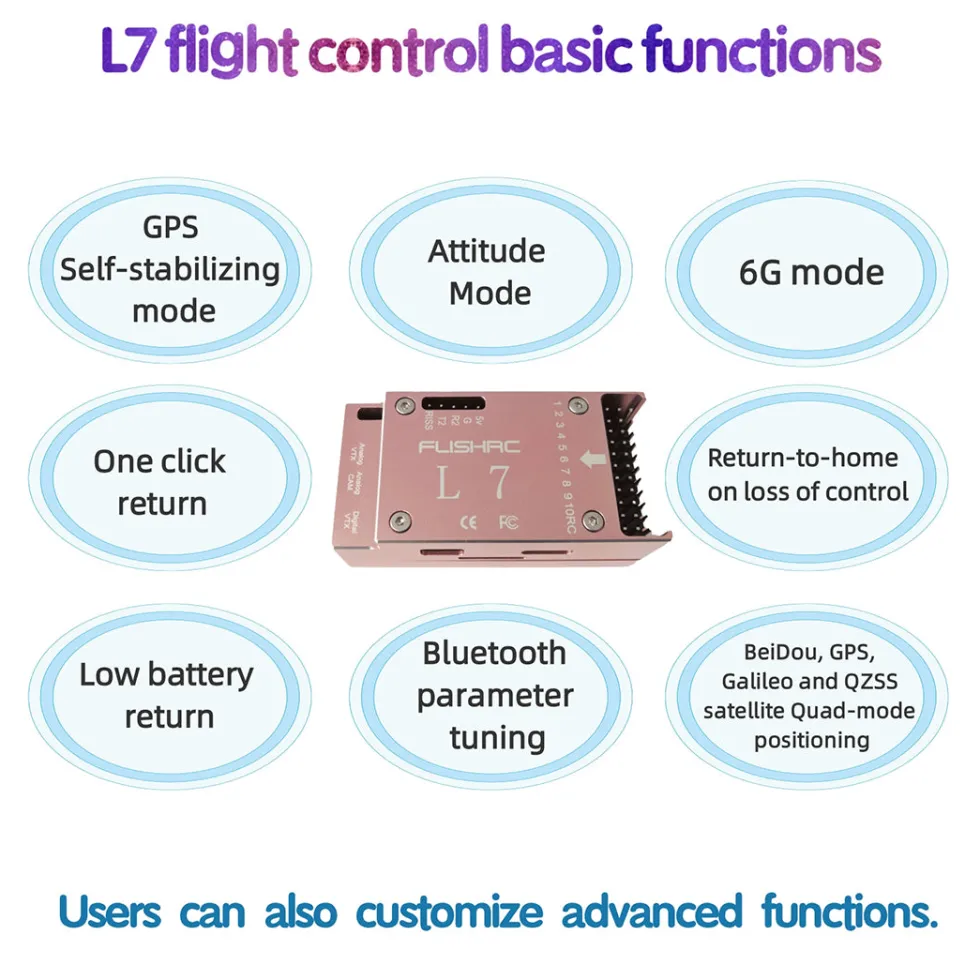

FLISHRC L7 Flight Control Functions:

1. GPS Stabilization Mode
2. Attitude Mode
3. 6G Mode
4. Low Battery Return
5. One-Touch Return to Home
6. Loss of Control Return
7. Bluetooth Parameter Adjustment & Data Transmission
8. Quad-Constellation Positioning: BeiDou, GPS, Galileo, and QZSS Satellites

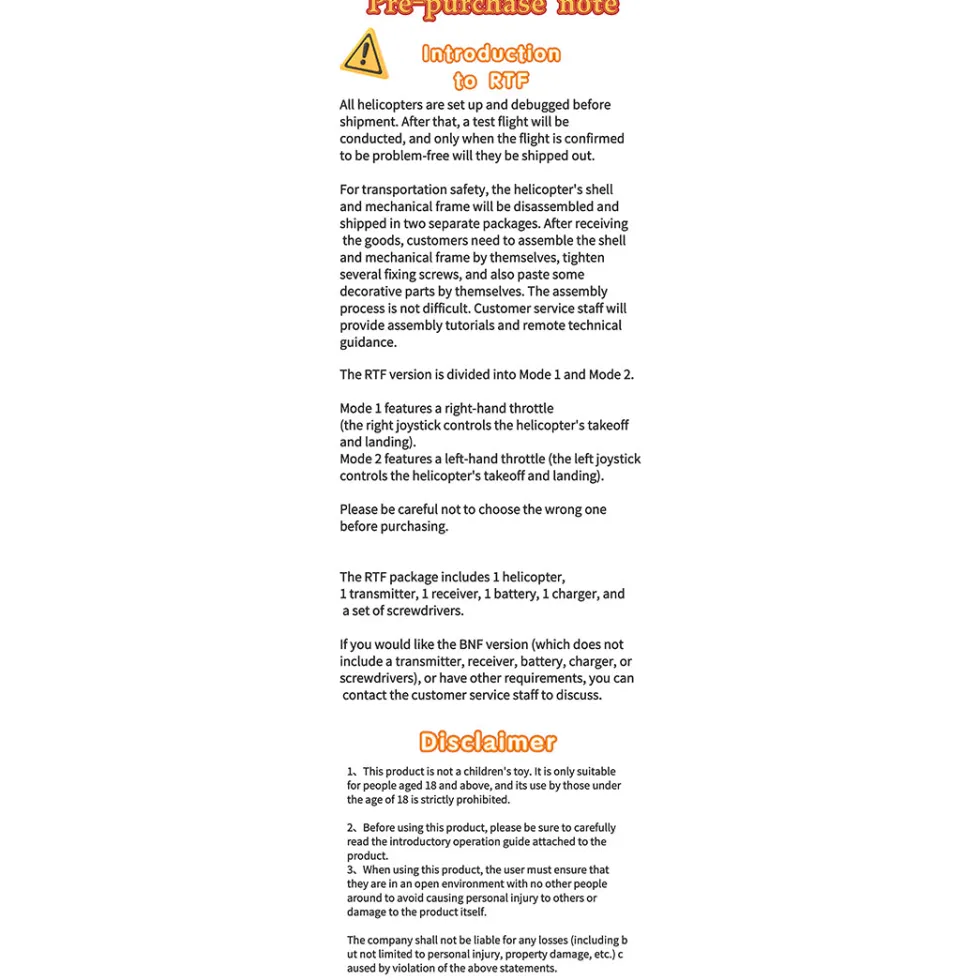

Notes:

Radio-controlled model helicopters are high-risk products. Always fly away from crowds. Improper assembly, unfamiliar operation, damaged components, faulty electronic controls, or lack of familiarity with controls may lead to unpredictable accidents such as loss of control or injury. Pilots must prioritize flight safety and understand they bear full responsibility for any accidents caused by negligence. Before each flight, meticulously inspect the main rotor hub cross-axis screw, tail rotor hub screw, and all ball joints and screws throughout the airframe. Ensure all fasteners are securely glued and tightened before taking flight.

Package 1:

Helicopter fuselage*1 (with helicopter cockpit)

Package 2:

Helicopter internal components
Remote control*1
4300 mAh 6S 25C Battery *1
Charger *1
Receiver *1
Screwdriver *1
