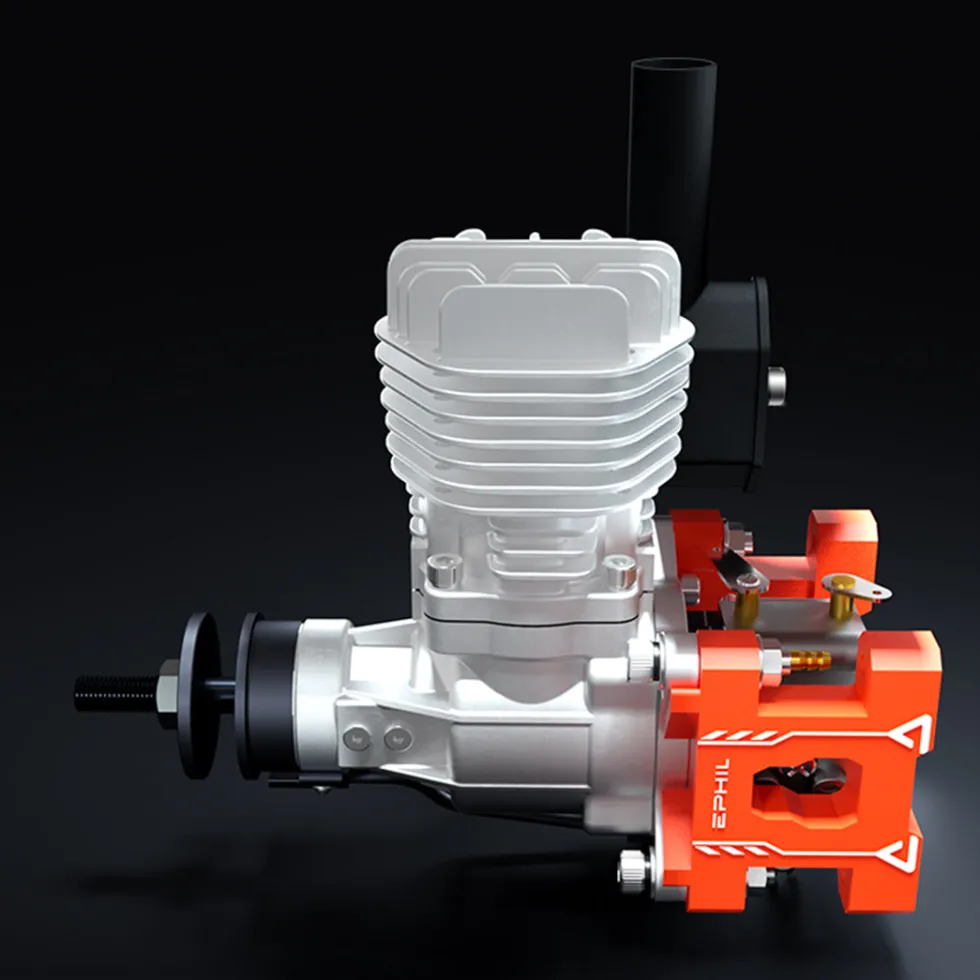

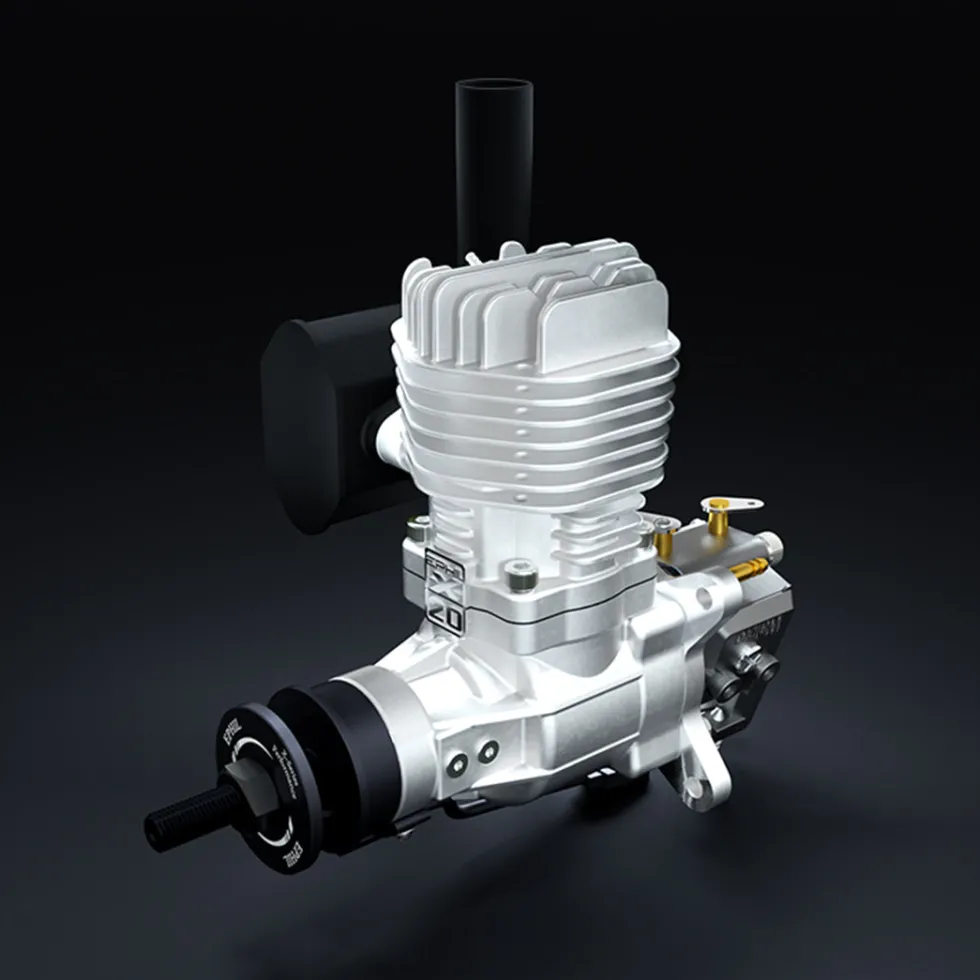

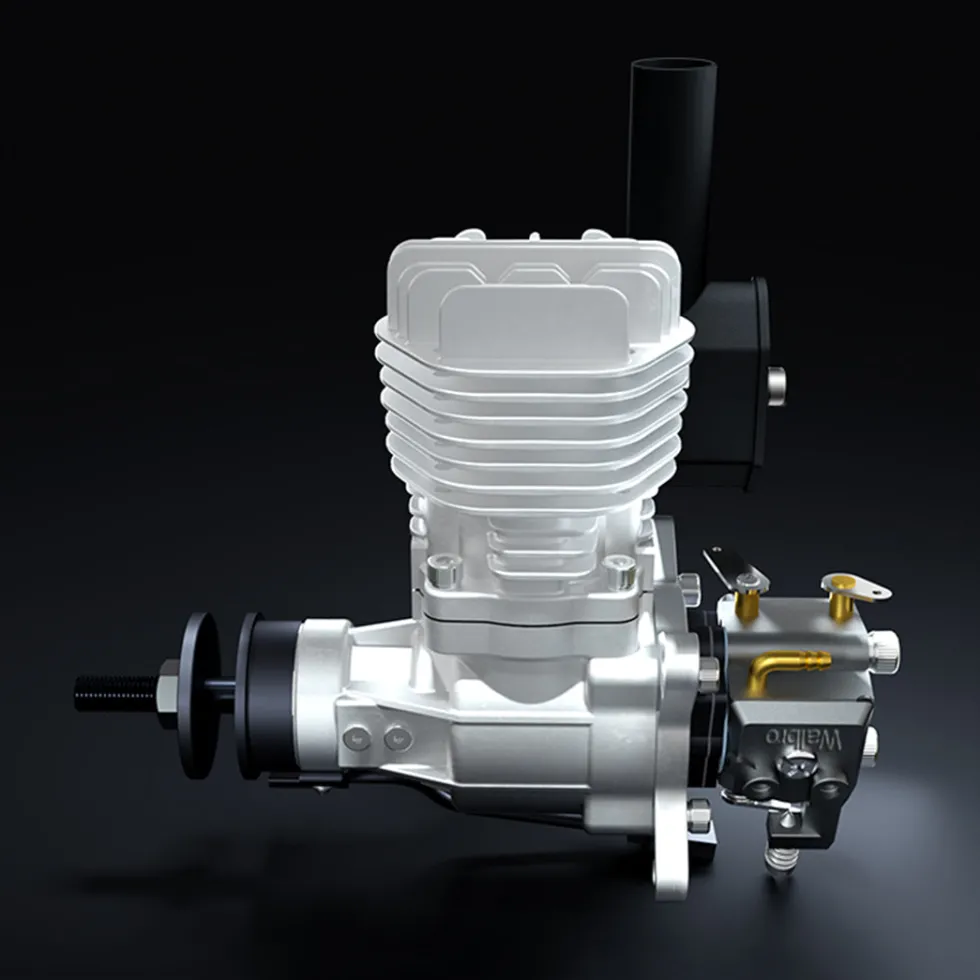

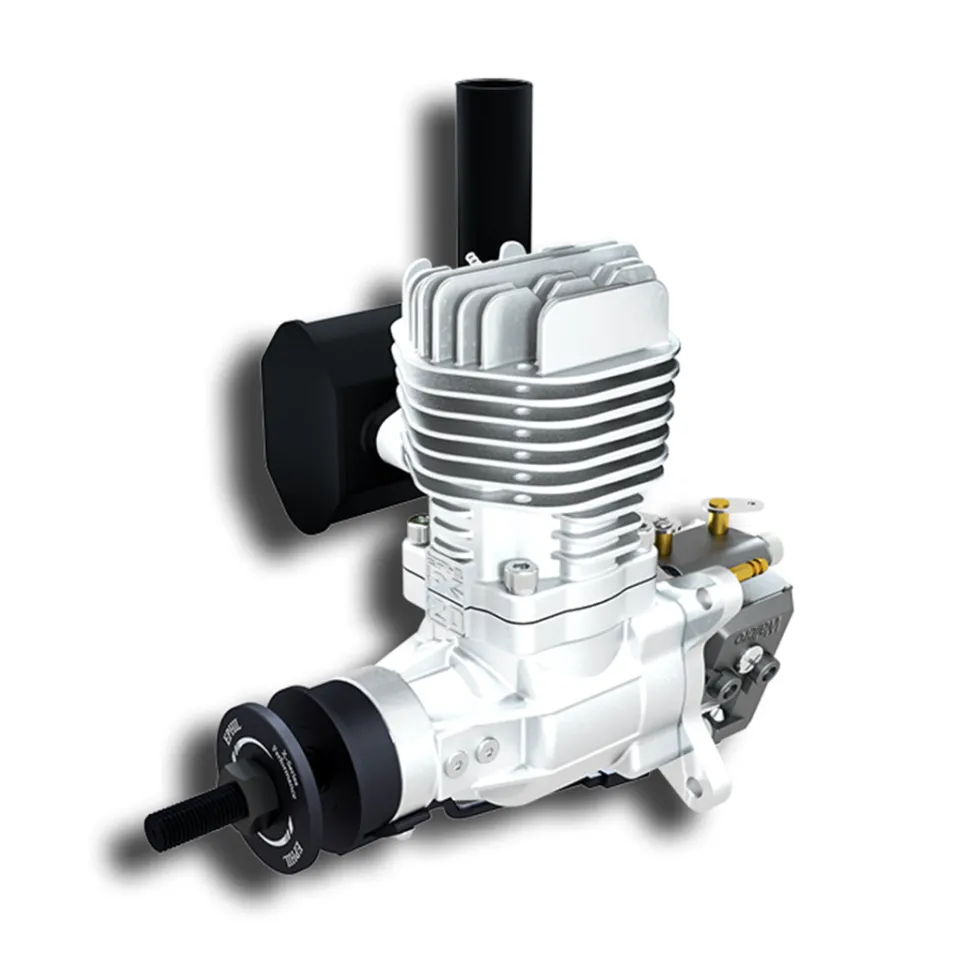

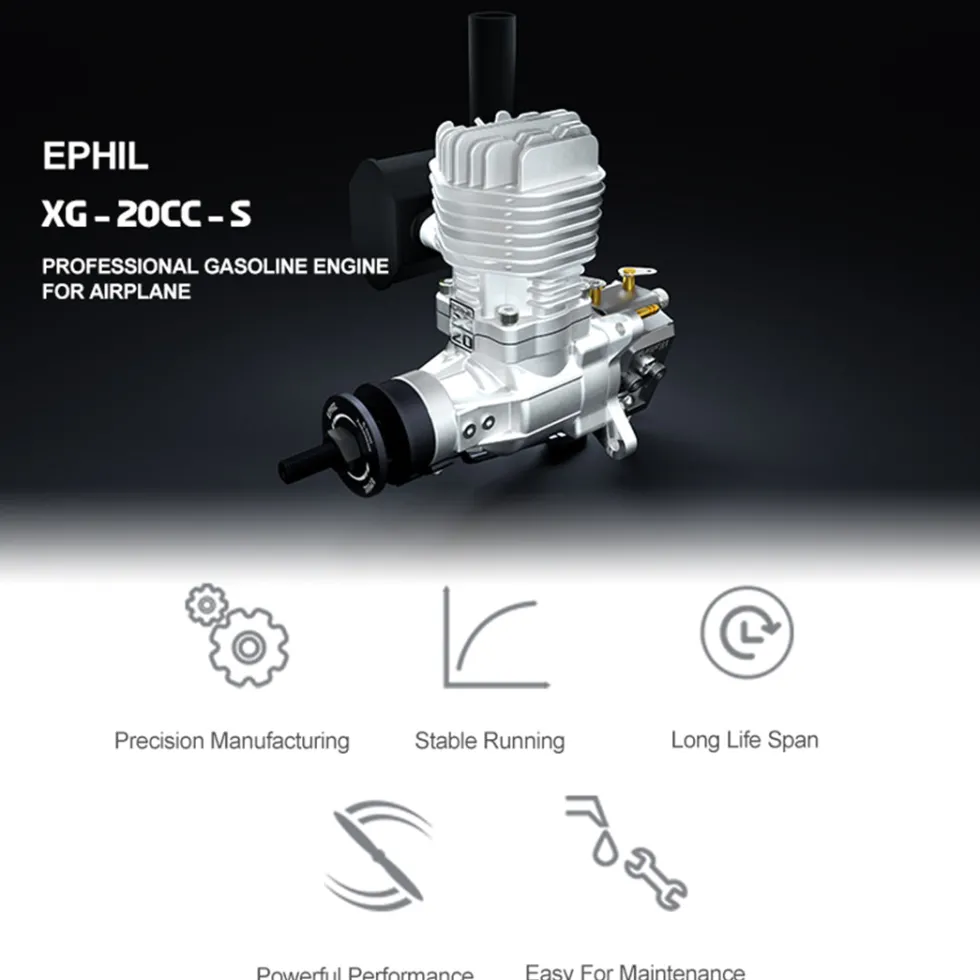

EPHIL XG-20cc-S Glow Plug Two-Stroke Single Cylinder Gasoline Engine Model for Fixed-Wing Aircraft Models

EPHIL XG-20cc-S Glow Plug Two-Stroke Single Cylinder Side Exhaust Gasoline Engine Model for Fixed-Wing Aircraft Models

Features:

.EPHIL XG-20cc-S, a high-performance gasoline engine model meticulously engineered for fixed-wing aircraft enthusiasts. This two-stroke, single-cylinder engine is designed with precision manufacturing to ensure stable operation, exceptional quality, and robust power output.
.One of the standout features of the EPHIL XG-20cc-S is its upgraded Pro engine with electric start capability. Equipped with an electronic control system, this engine allows for a seamless one-button start, making your setup quick and hassle-free. Extensive testing and positive user feedback underscore its dependability and superior performance.
.The standard glow plug included with this engine enhances stability in high-temperature and high-pressure cylinder environments, significantly outlasting conventional spark plugs. This ensures your engine runs smoothly and efficiently for extended periods.
.Additionally, the EPHIL XG-20cc-S comes with a specially designed exhaust pipe that can be easily connected to a smoke system, enabling spectacular smoke trails that brights the sky like shooting stars. This feature adds a visually stunning to your flight experience, making every takeoff and maneuver even more captivating.
.Compatible with a wide range of fixed-wing aircraft models, delivering powerful and consistent performance. The EPHIL XG-20cc-S is your trusted partner in the skies, providing the power and reliability you need to achieve outstanding flight results every time.

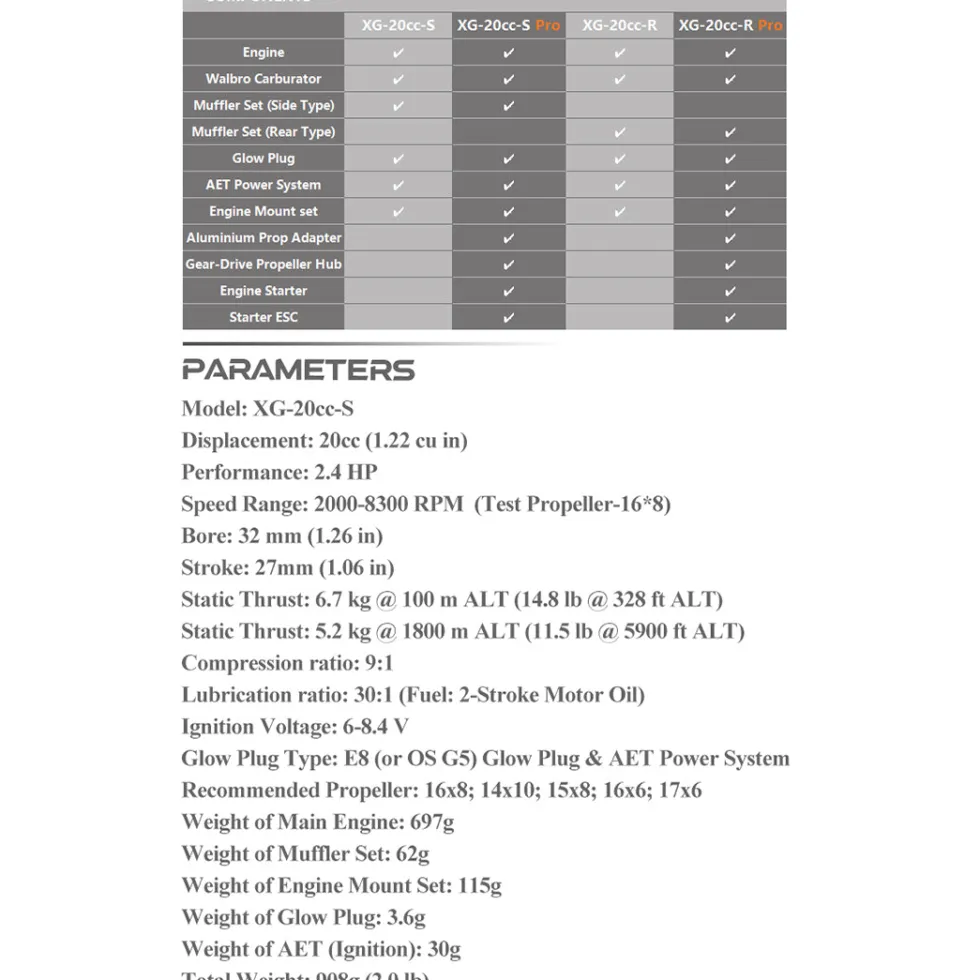

Specifications:

.Material: Metal
.Brand: EPHIL
.Model: XG-20cc-S
.Displacement: 20cc (1.22 cu in)
.Performance: 2.5 HP
.Speed Range: 1800-8600 RPM (Tested Paddle-16*8)
.Bore: 32 mm (1.26 in)
.Stroke: 27 mm (1.06 in)
.Static Thrust: 7.0 kg @ 100 m ALT (15.4 lb @ 328 ft ALT)
.Static Thrust: 5.4 kg @ 1800 m ALT (11.9 lb @ 5900 ft ALT)
.Compression Ratio: 9:1
.Lubrication Ratio: 30:1 (Gasoline: Lubricating Oil)
.Ignition Voltage: 6-14V
.Glow Plug Type: E8 (or OS G5) Heating Element
.Recommended Propeller:16×8;14×10; 15×8; 16×6; 17×6
.Weight of Main Engine: 697g
.Weight of Muffler Set: 62g
.Weight of Engine MountSet: 115g
.Weight of Glow Plug: 3.6g

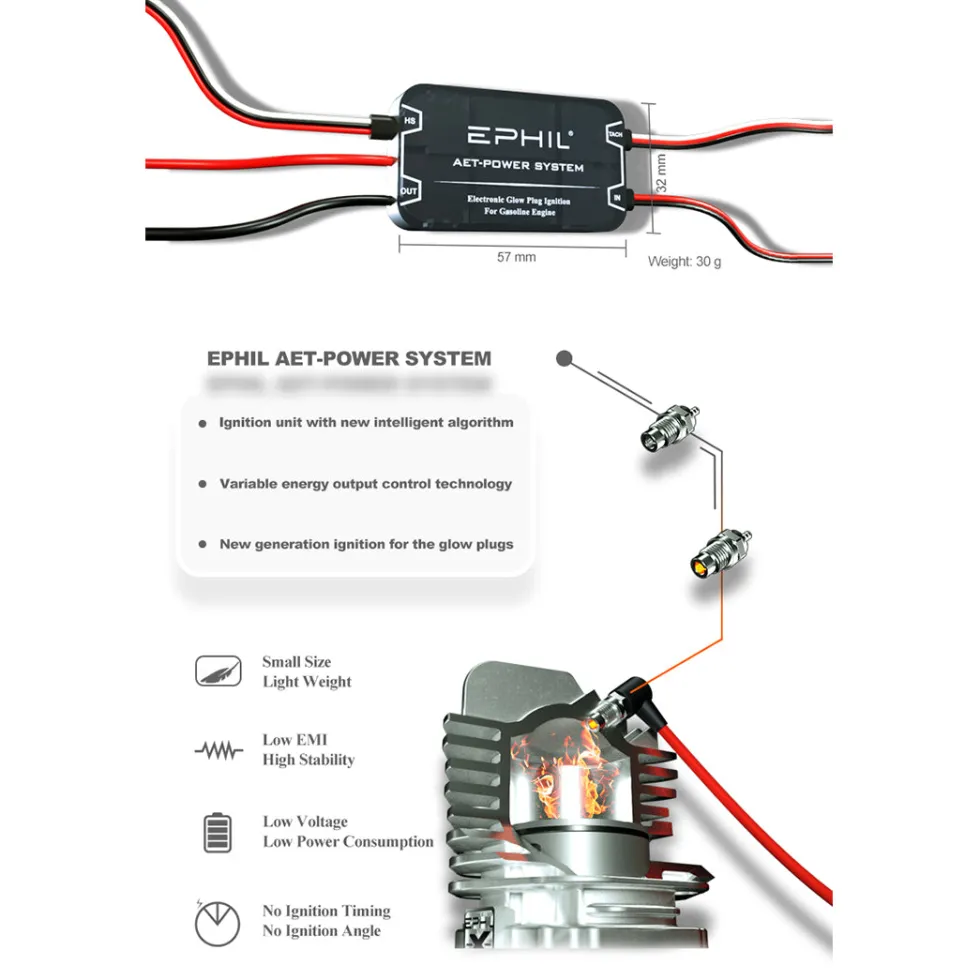

.Weight of CDI(Ignition): 30g
.Total Weight: 908g (2.01lb)
.Product Weight: 991.5g

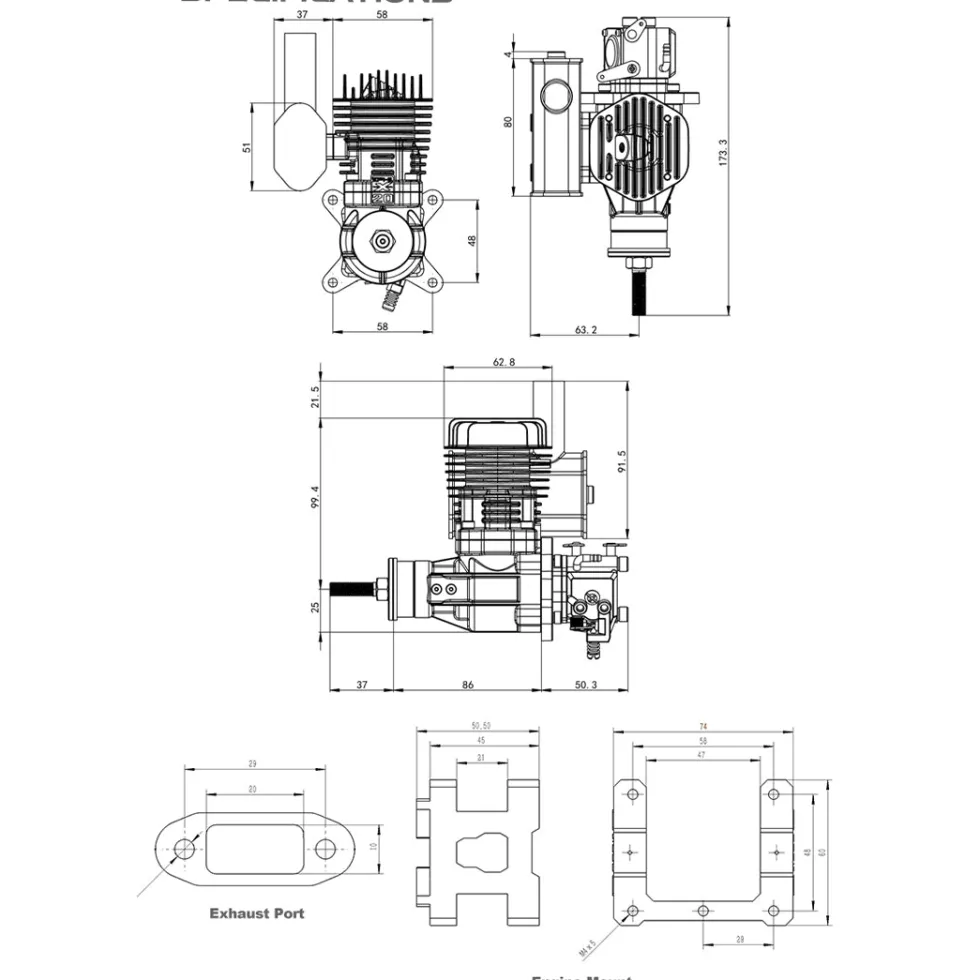

.Product Dimensions: 17.33 x 12.5 x 14.59cm
.Package Dimensions: 20 x 20 x 20cm
.Package Weight: 1200g
.Packing: Box
.Ages: 16+

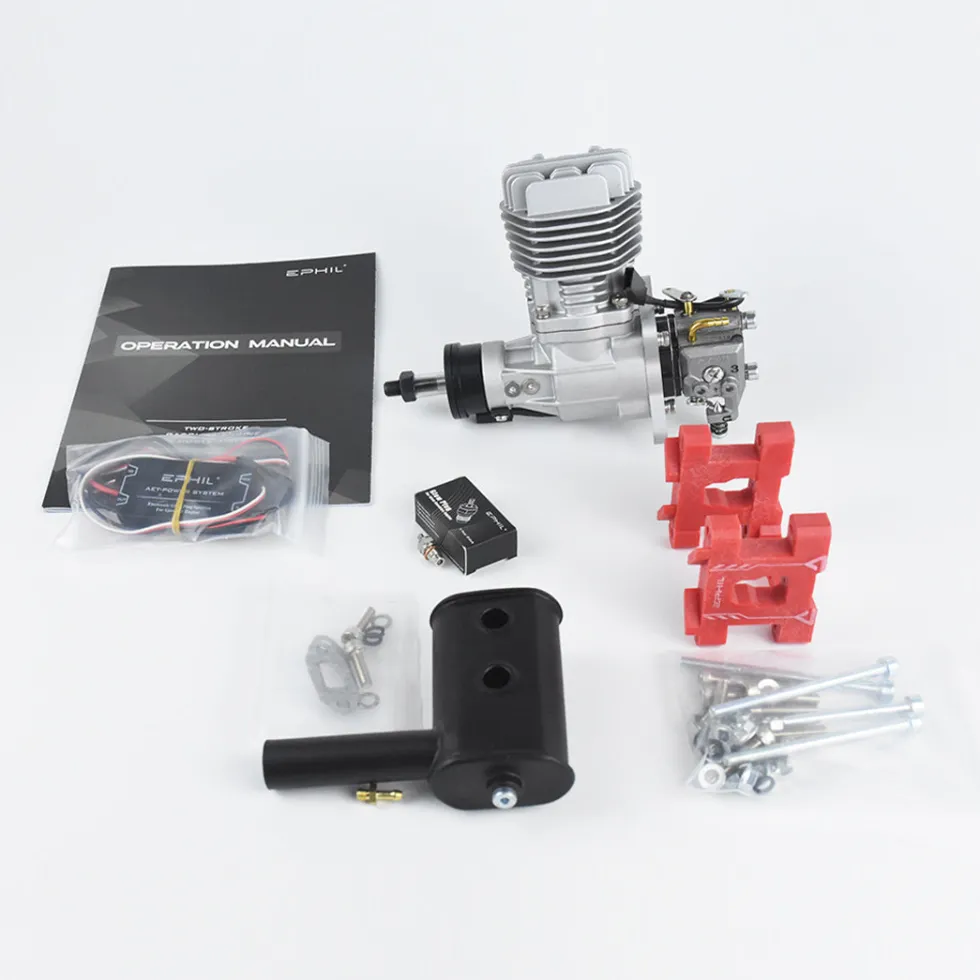

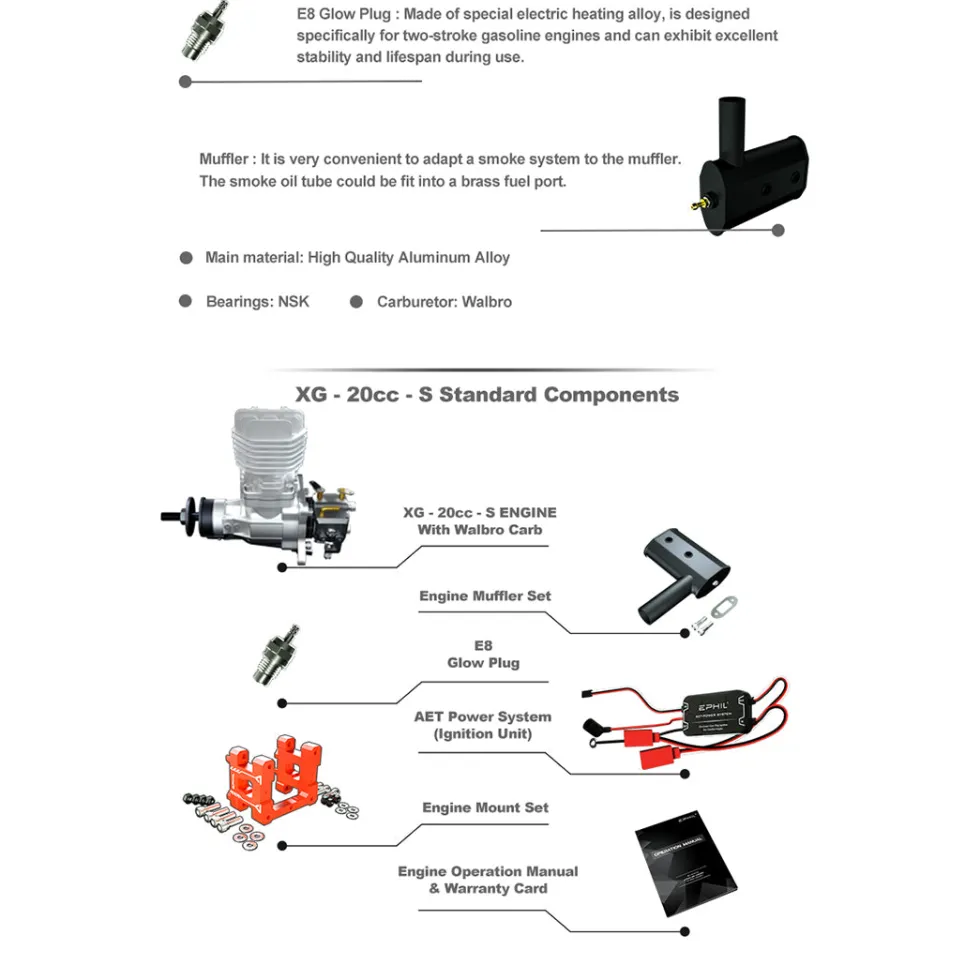

Packing list:

.Engine *1
.Carburetor *1
.Exhaust Pipe*1
.Glow Plug*1
.CDI Igniter *1
.Engine Mount *1
.User Manual & Warranty Card *1
