Consistency Speed Controler Servo Tester for In-line Four-cylinder Gasoline Engine Model

Features:

.It can easily detect and set the virtual position, jitter and neutral position of the server.
.Two sets of servos or ESCs can be connected
.Single-chip microcomputer control, good stability and high precision.
.Rotate the knob to detect the steering gear.
.If you connect an electronic speed controller (brushed or brushless), you can get rid of the remote control device and adjust the speed manually. It is used to test the performance of the speed controller or motor. It is very practical, and there is no need to connect the remote control and the receiver.
.It is equivalent to the function of a “manual receiver”, which simulates the rudder of the transmitter through the knob.
.Note: This product cannot test the servos above 55g, but the ones below 55g can be tested.

Specifications:

.Color: As Shown
.Material: Electronic Components + Plastic
.Output: ≤15mA (5.0)
.Input: DC 4.5-6.0v
.Output Signal: 1.5ms±0.5ms
.Adjustment Mode: Manual, automatic, neutral
.Product Dimensions: 4.25 x 2.4 x 2.35cm
.Product Weight: 7.5g
.Package Dimensions: 11.5 x 7 x 3cm
.Package Weight: 7.5g
.Packing: Bag

Package Content:

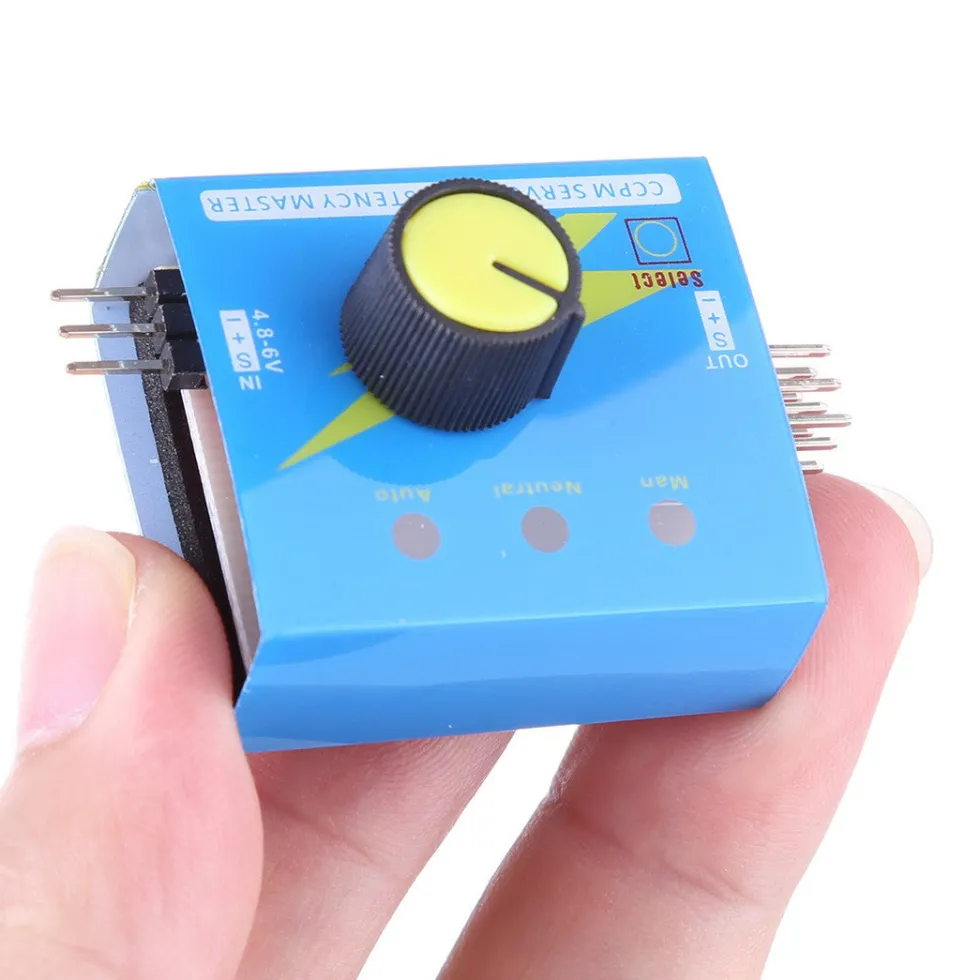

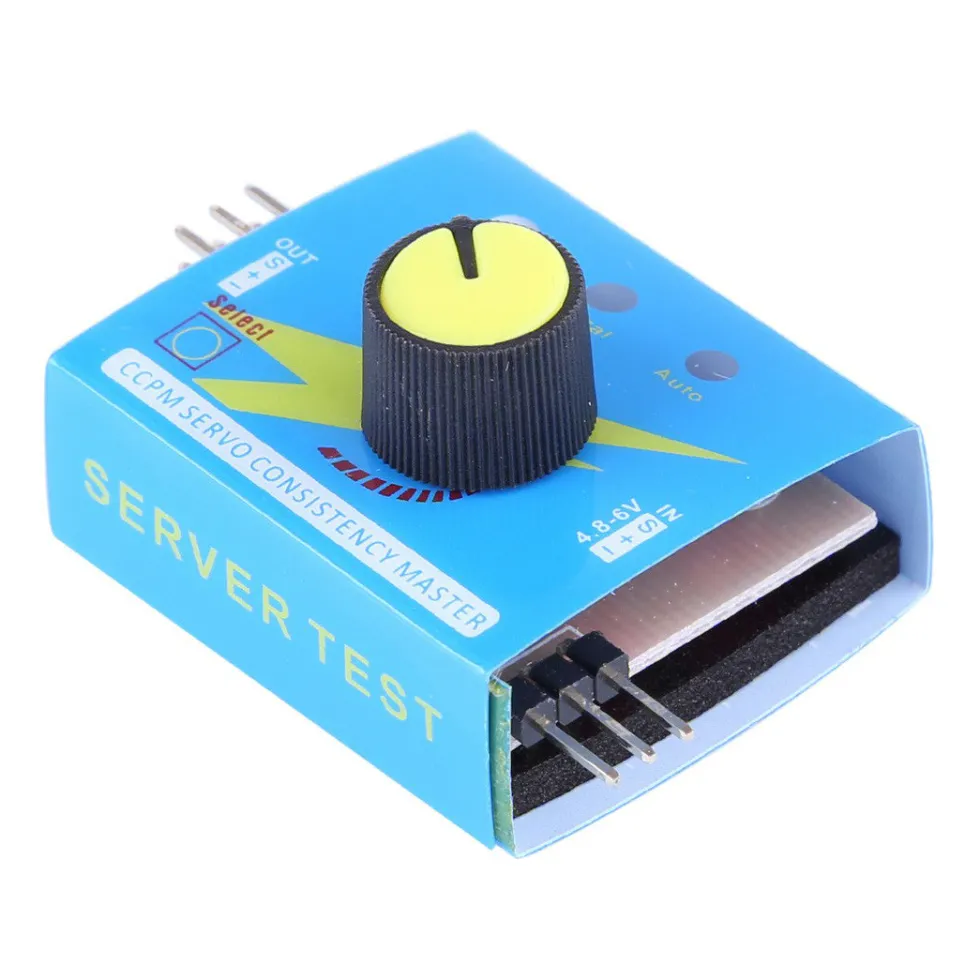

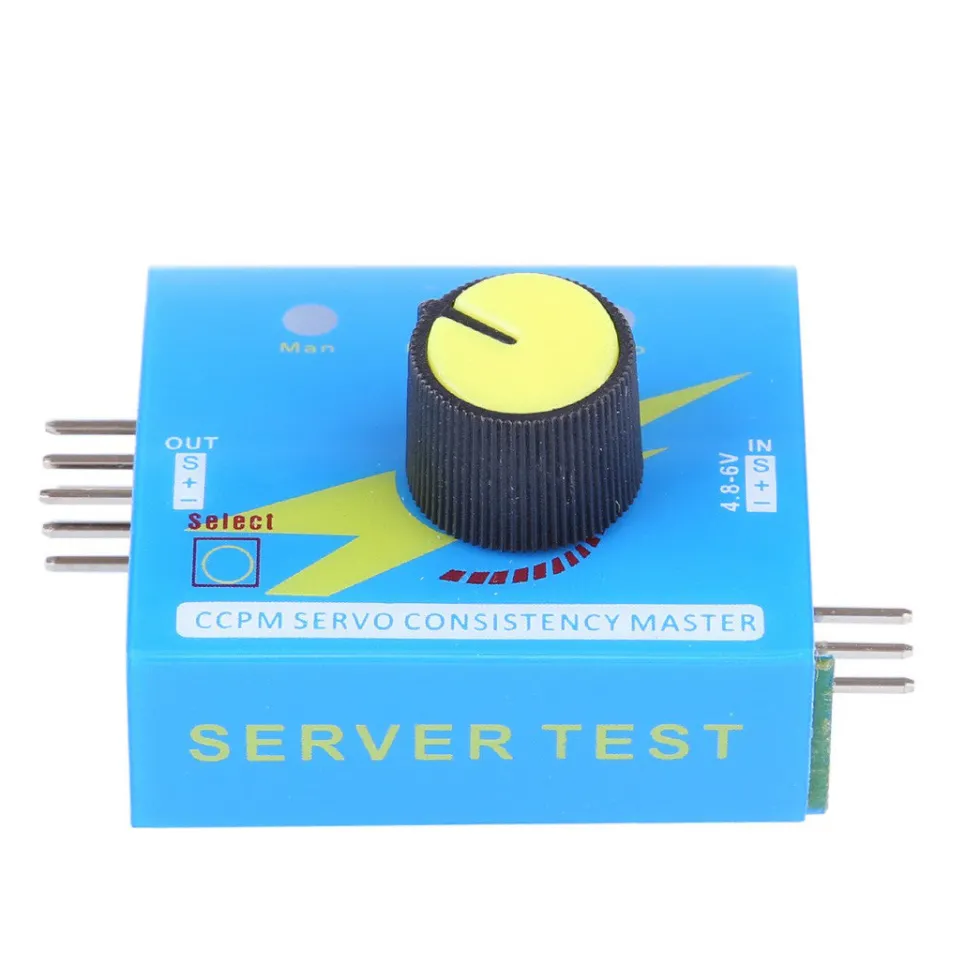

.1 x Servo Tester
