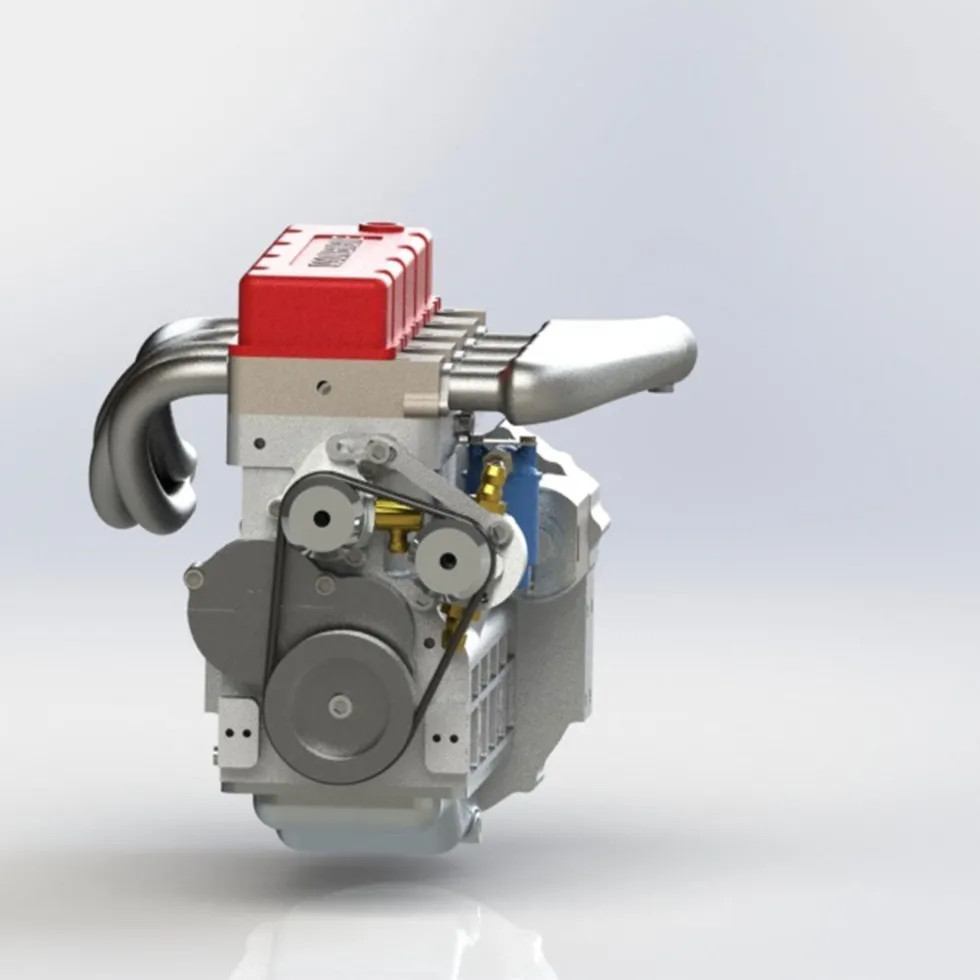

CISON L4-175 17.5cc Mini OHV Inline 4 Cylinder 4 Stroke Water-cooled L4 RC Gasoline Engine Model – Speed Up to 8,000rpm

CISON L4-175 17.5cc Mini OHV Inline 4 Cylinder 4 Stroke Water-cooled L4 RC Gasoline Engine Model – Speed Up to 8,000rpm

CISON L4-175 OHV L4 Engine for Sale Now!
Early Bird Price: $799.99! Save $200 when checking out.
Buy CISON OHV L4 Engine & Parts Here together, Only $899.98! Save $250 Off!

Find CISON OHV L4 Accessories !
Find CISON FL4-175 L4 Engine !
Find CISON Engine & Accessories !

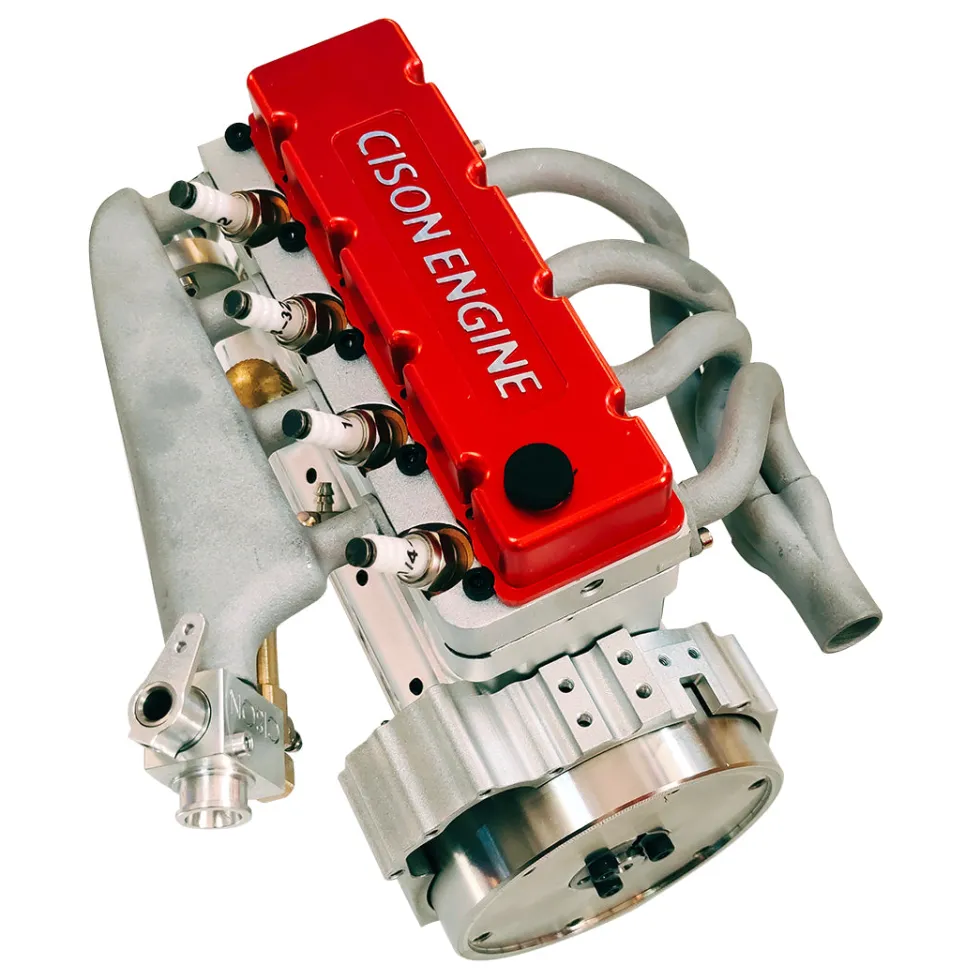

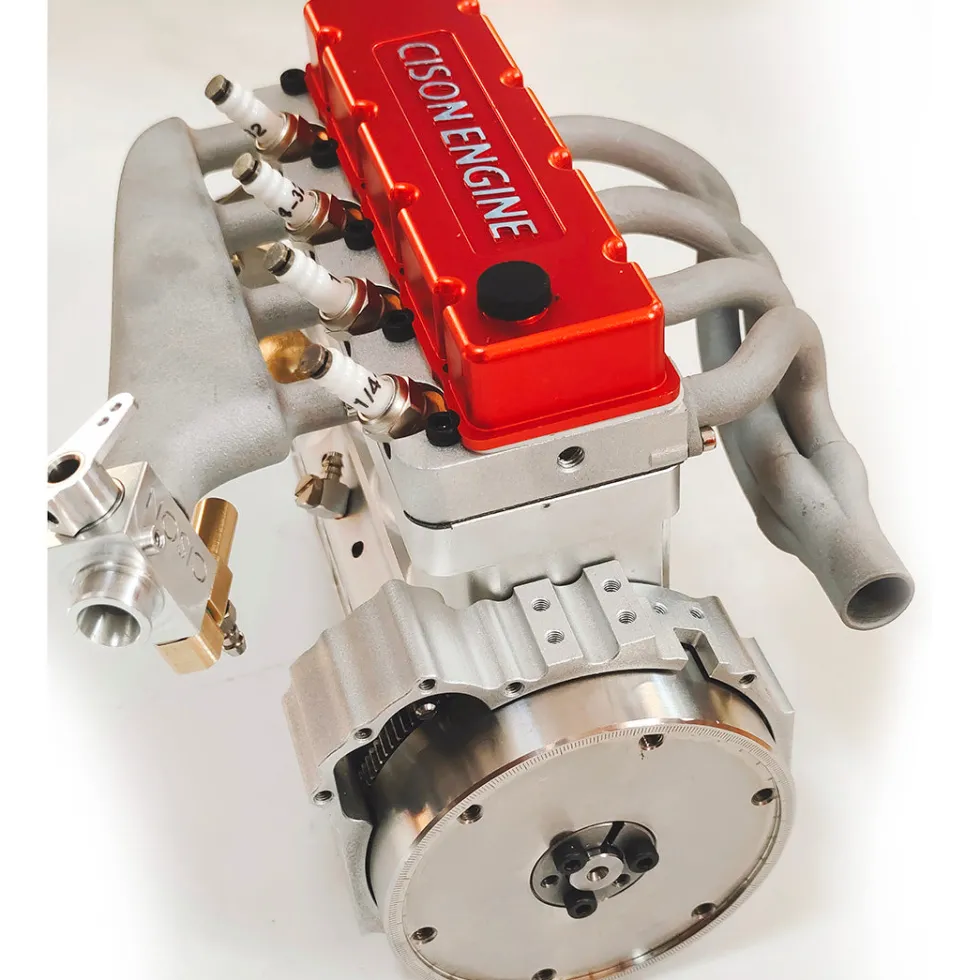

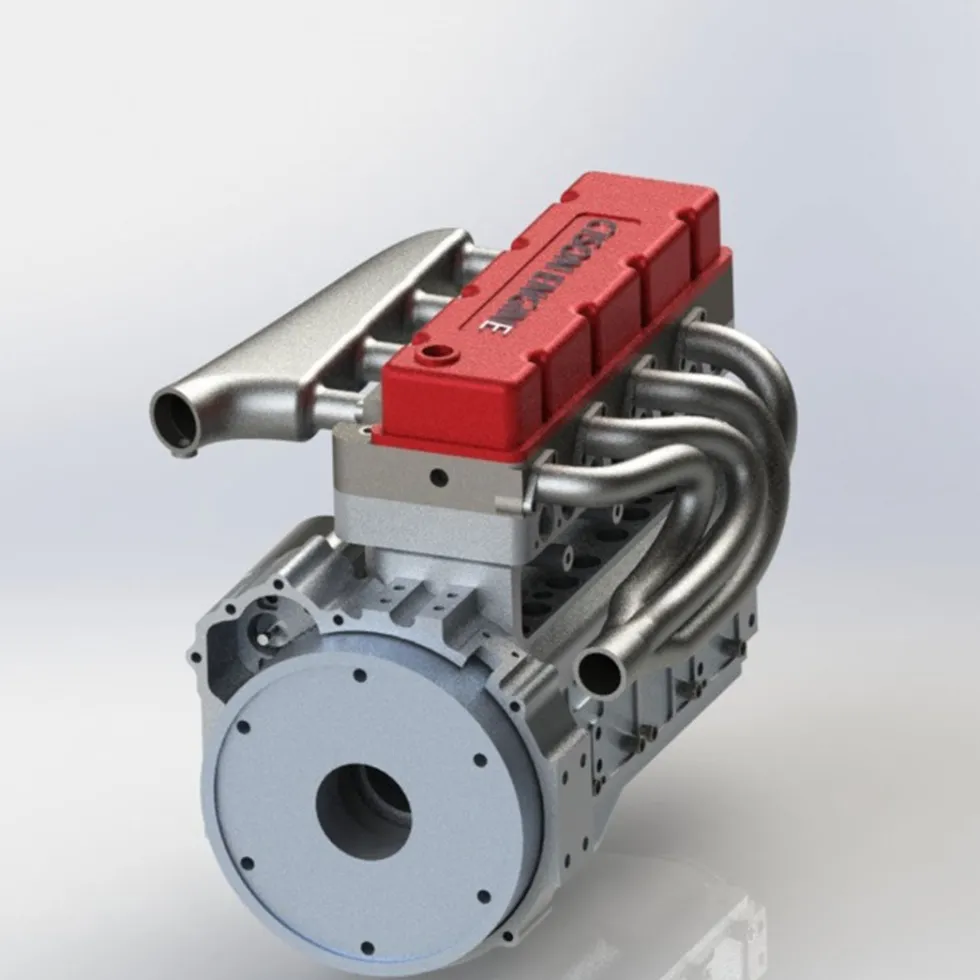

In early 2022 we introduced the CISON FL4-175 flathead L4 gasoline engine, and this time we decide to bring its upgraded version – the L4-175 OHV L4 gasoline engine, which maintained a unique, mini and compact appearance and almost the same displacement, compared to the previous L4 engine.

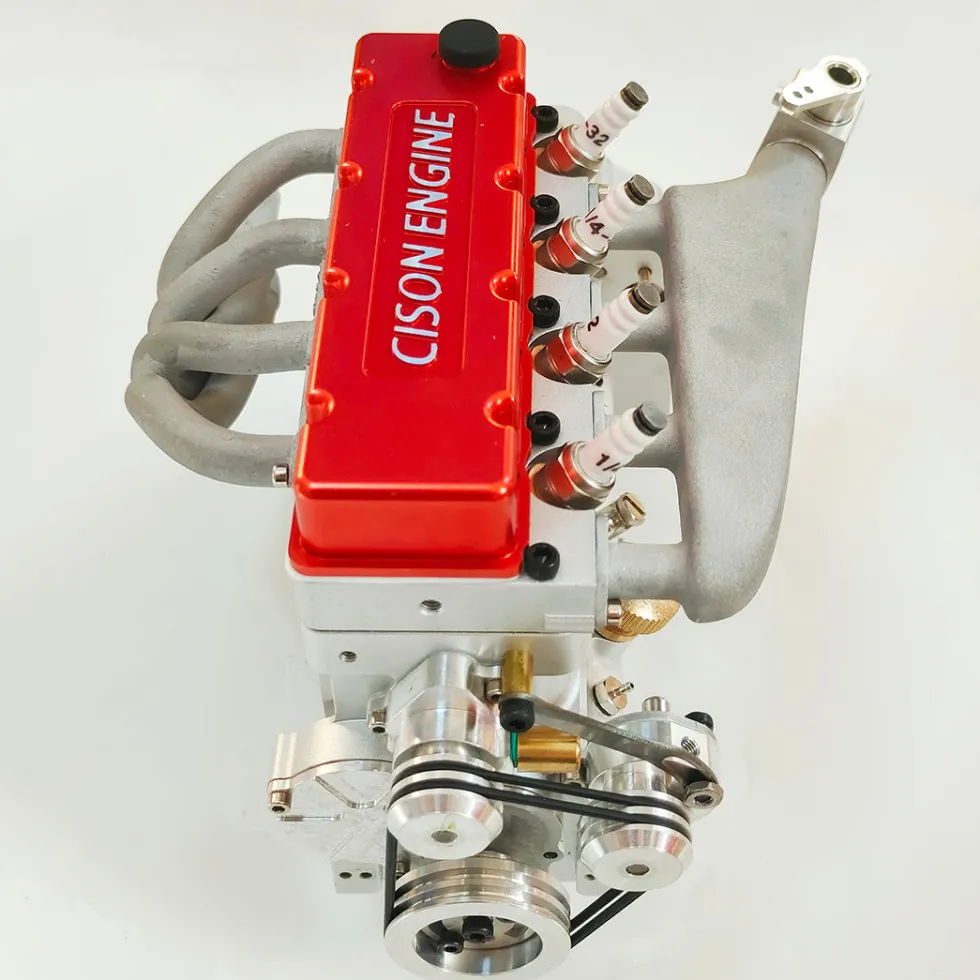

This new CISON OHV L4 engine adds red sports elements on the surface, roughens the crankshaft, and adopts bionics on the carburetor. OHV valve mechanism gives the engine a better power output performance than the flathead one’s design for higher torque output, which is more compatible with RC off-road trucks, tows, etc. Equipped with a standard electrical starting, water cooling system and independent lubrication system, the new L4-175 OHV L4 gas engine will also be available in two versions, the KIT version and the assembled version. And this time, the CISON OHV L4 engine is already for sale now. Any questions or advice, please feel free to contact us .

Know More About This CISON L4-175 OHV Gasoline Engine:

OHV Miniature Model Engine:

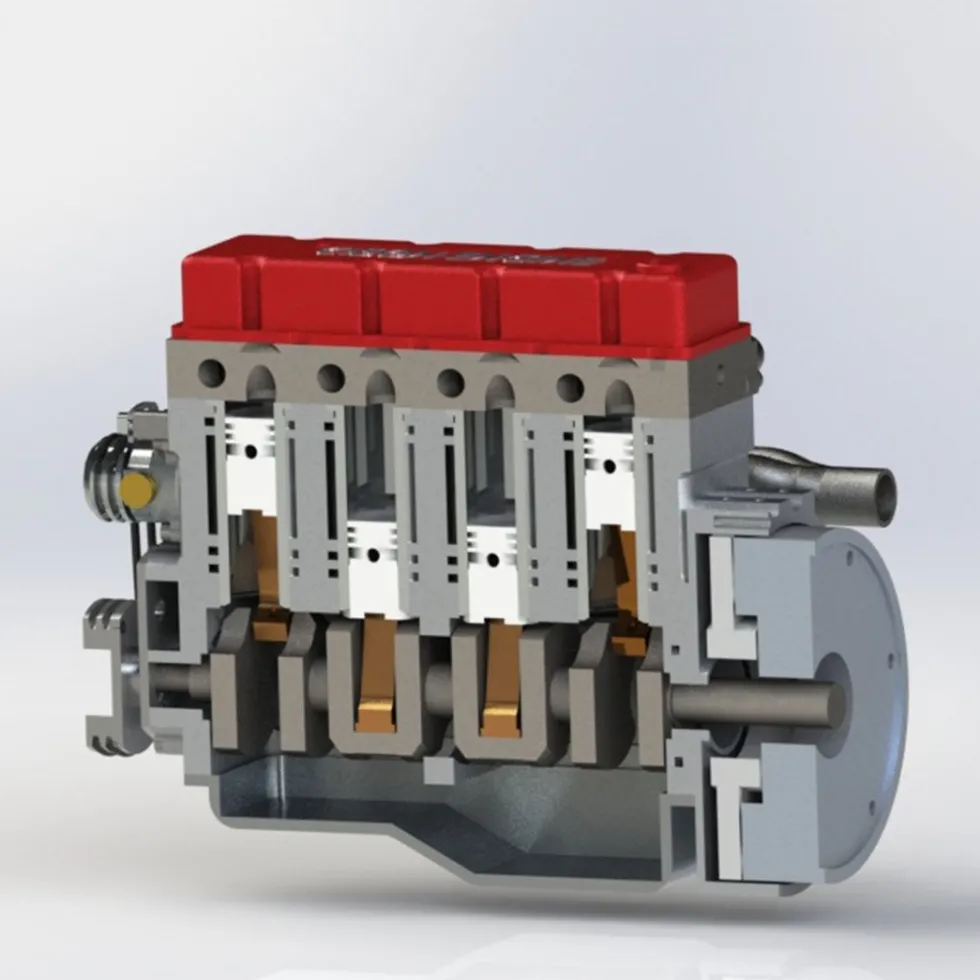

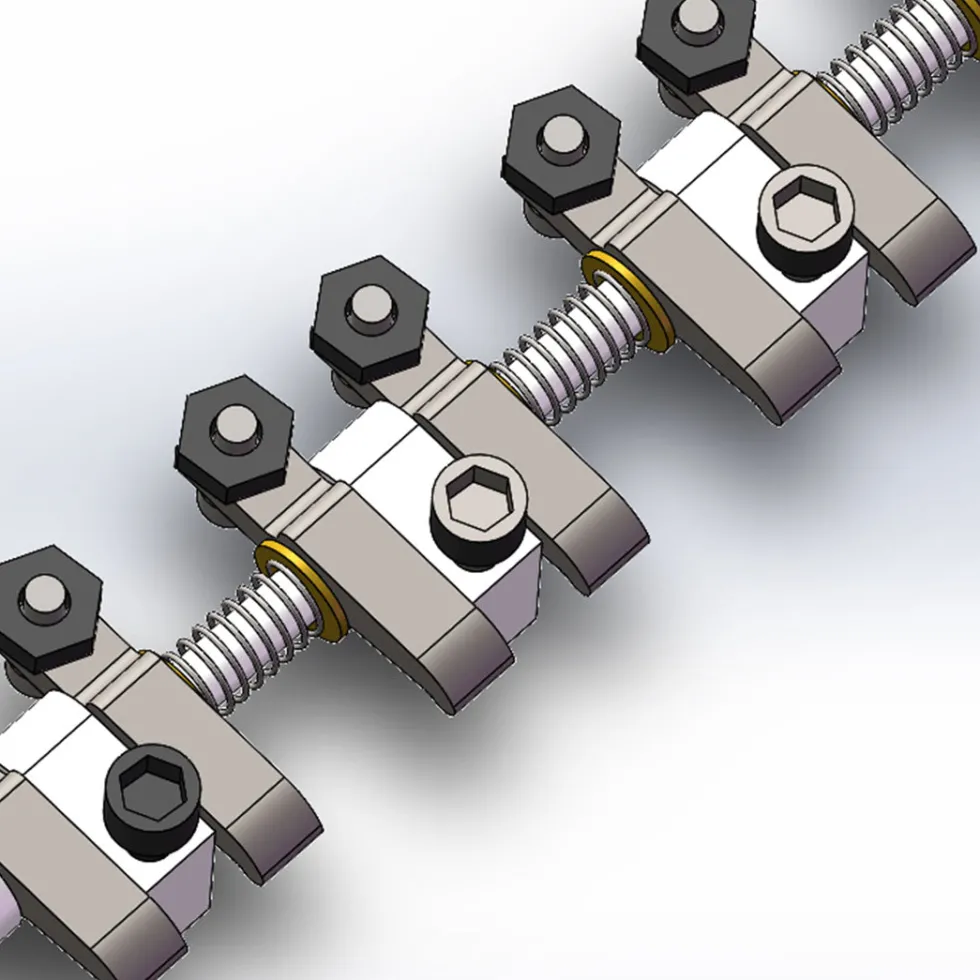

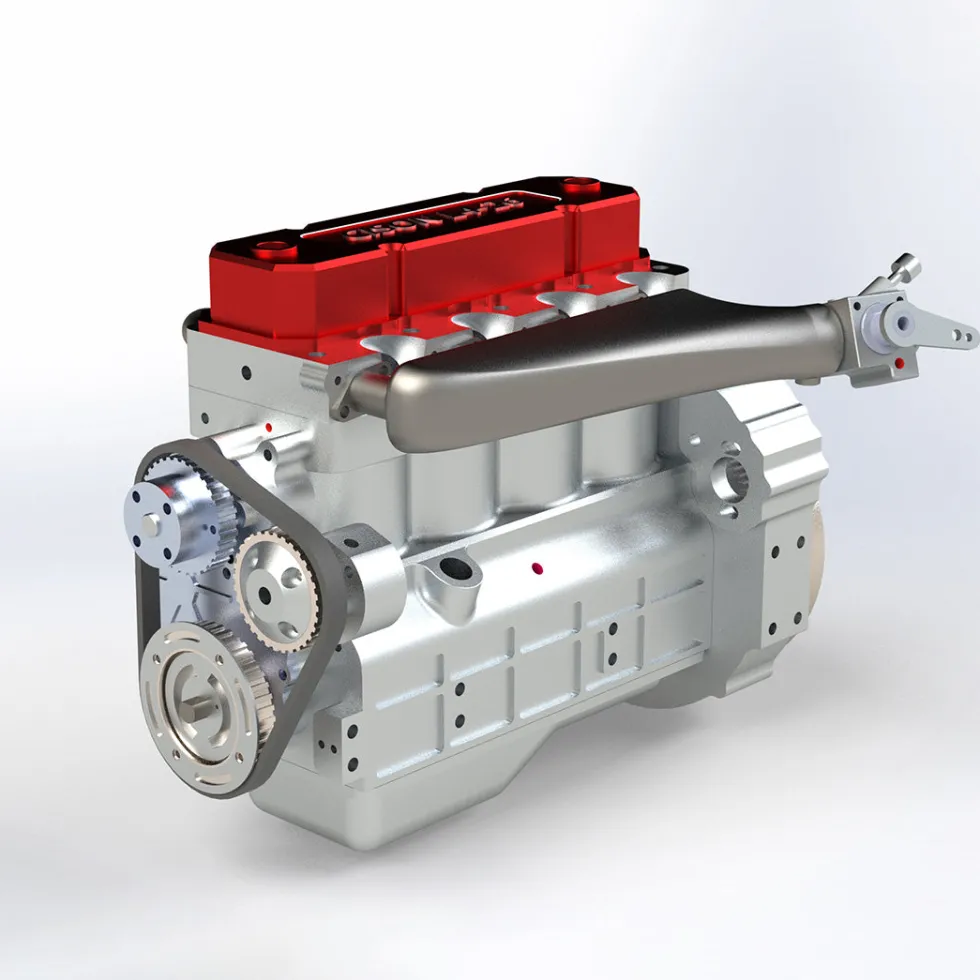

Featuring a unique, mini and compact appearance while with large displacement, the L4-175 engine adopts an OHV valve mechanism for a long stroke and high output torque.

Build Your Own Engine:

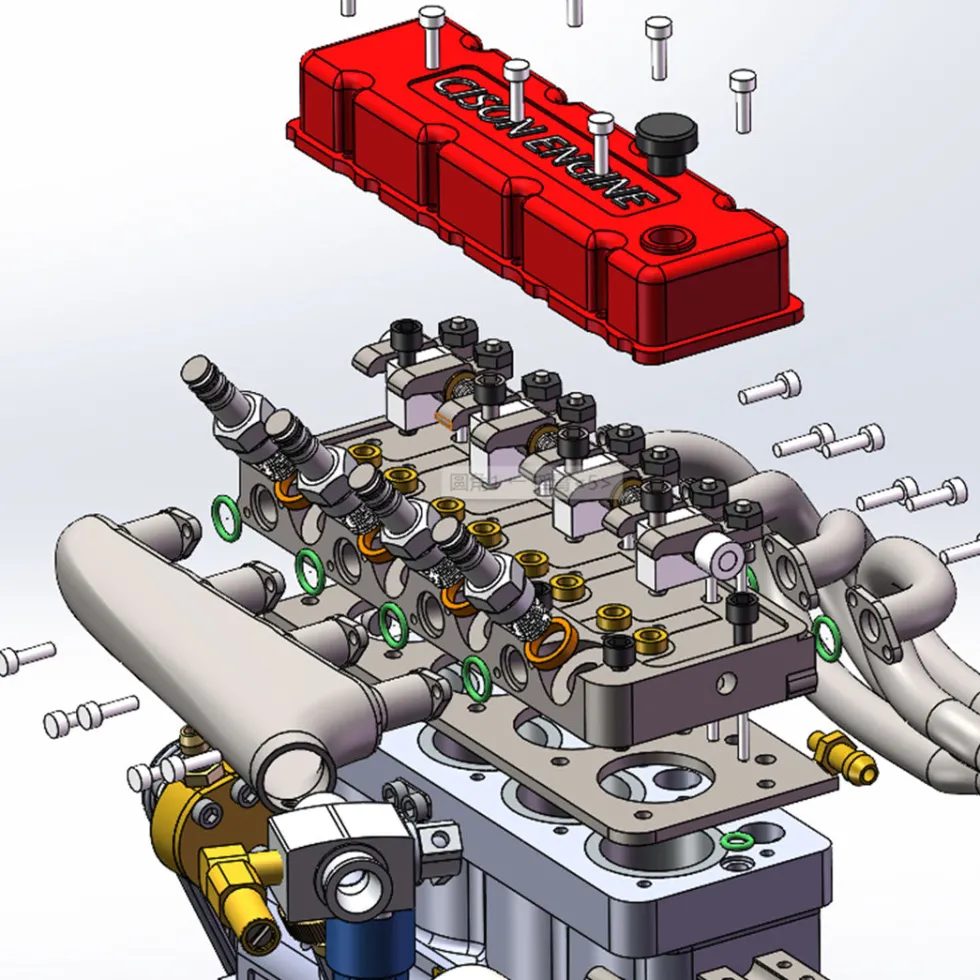

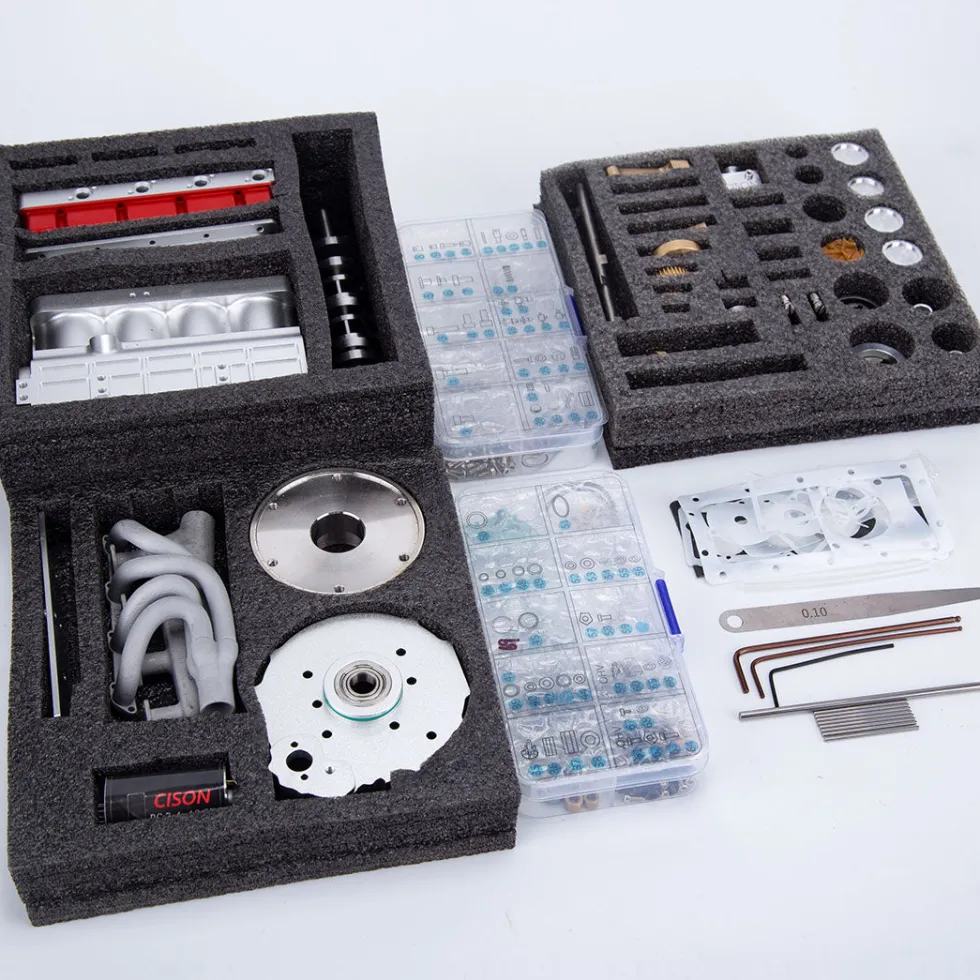

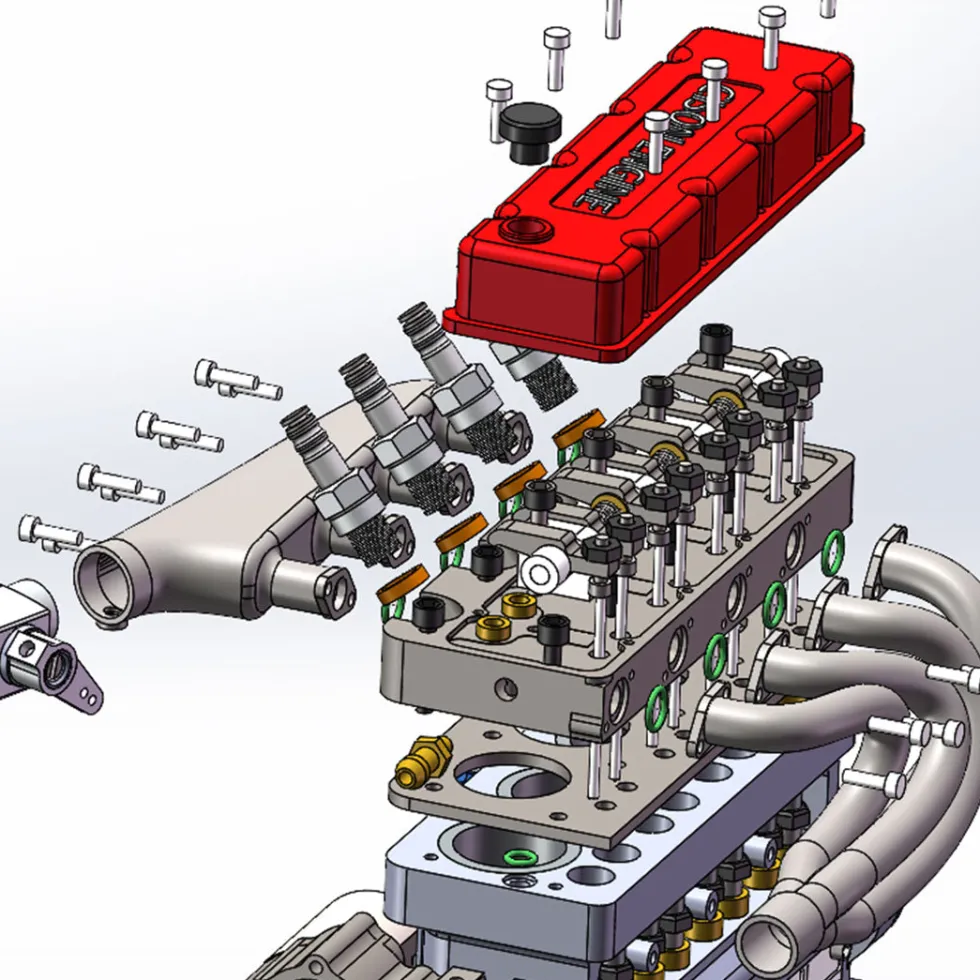

With a total of hundreds of metal parts, the L4 engine kit allows you to start a great and challenging project, enter the world of micro mechanical engineering. 2 Versions are available: Kit and Assembled. Pick a kit version and build your own L4 engine, pick the assembled one, ready to run!

Sensitive Response:

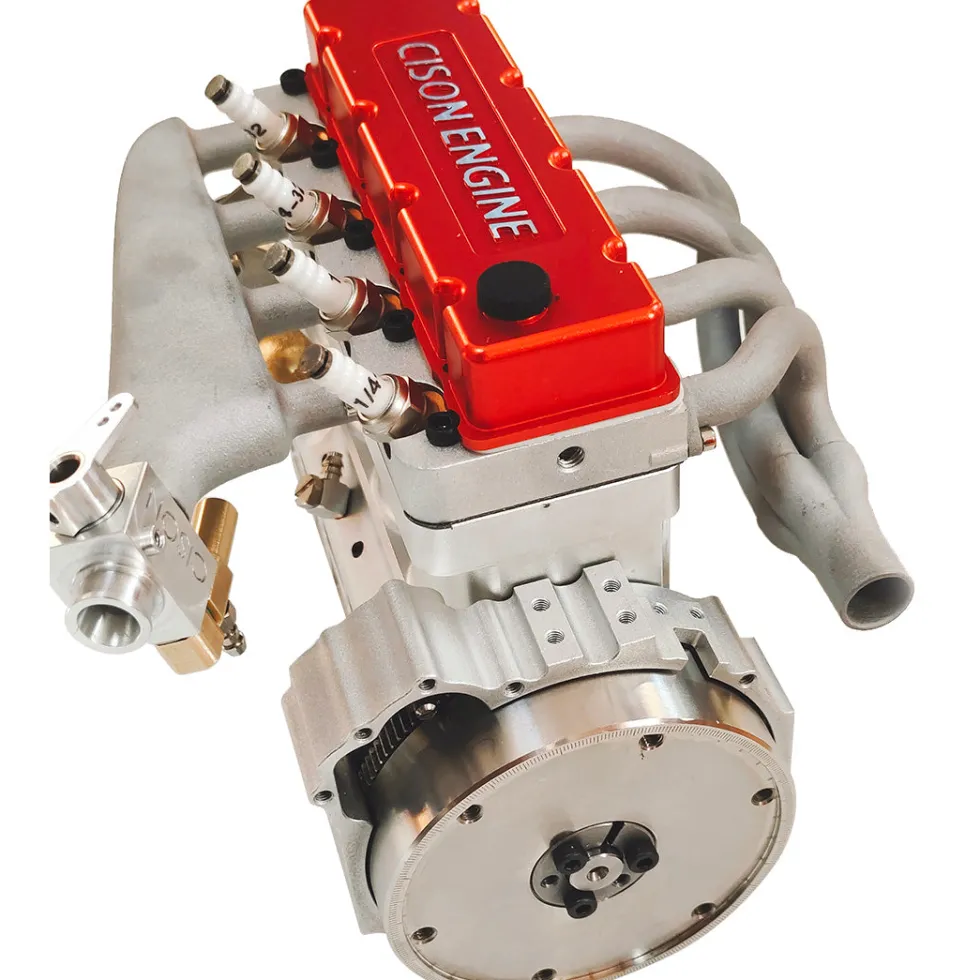

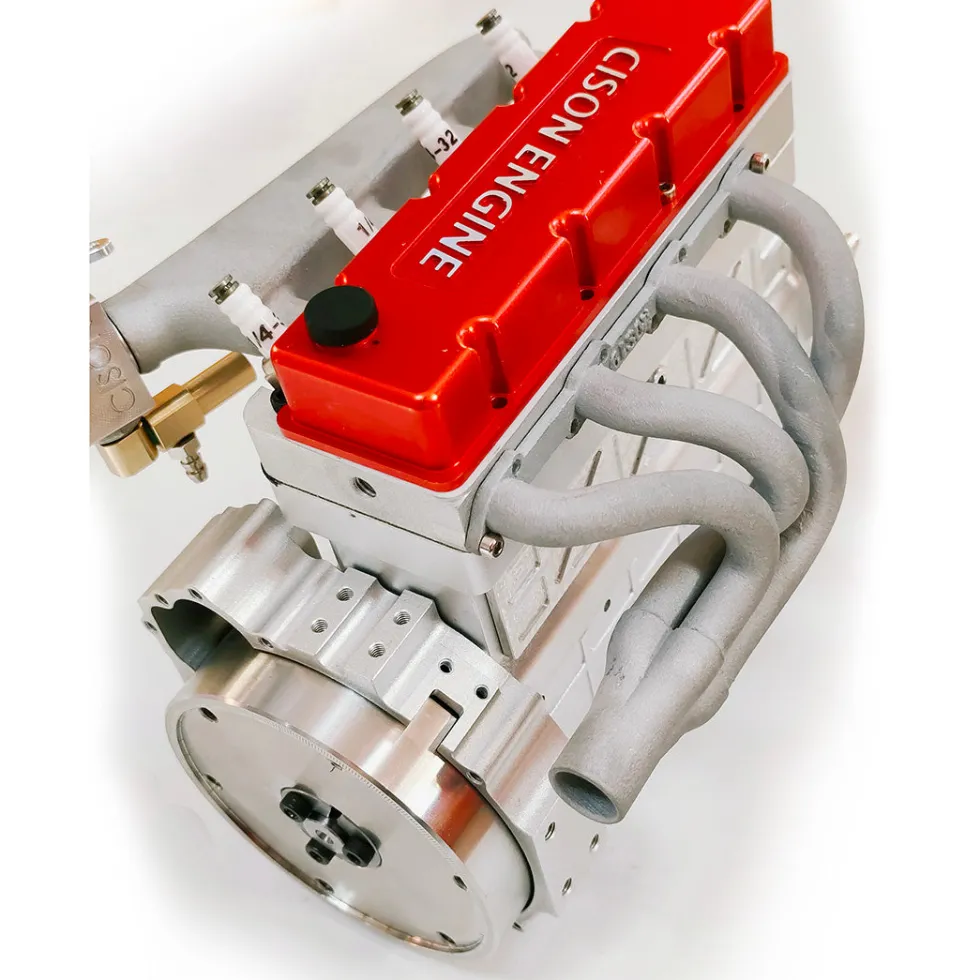

The CISON L4 engine boasts printing inlet pipes and exhaust pipes that are integrated metal and stainless steel, along with a carburetor designed by bionics for easy adjustment, more sensitive throttle response and deep and powerful sound.

Lasting Work:
The independent lubrication system and the external oil pump are utilized for superior lubrication when matched with mini oil filters. The engine is cooled with a water cycle for longer operation and lifespan.

Sophisticated Manufacture:
The main body of the engine is made of aluminum CNC in precision processing, a special bimetal cast iron piston ring, high-precision stiffening cylinder liner, integral stiffening crankshaft and sandblasting oxidation on the surface for an impressive beauty and texture.

Convenient Ignition:
The CDI igniter dedicated to the L4 engine with a compact size and superb anti-interference performance makes the ignition more stable, which is more friendly to users using remote control electronic devices.

RC Compatibility:
Compatible with RC models, the lightweight engine makes an incredible “heart” for 1/8 and 1/14 crawler, off-road and tractor models that are demanding low torque.

Collection and Gift Choice:
The CISON L4 engine is available as a perfect addition for machine enthusiasts, engine model aficionados and collectors, a prime choice for RC off-road GP models and a high-end personalized gift for families and friends.

Warm Tips:
The base, CDI igniter, spark plug, oil filter and water cooling accessories are not included. Please operate the engine in line with the instructions to avoid damage by improper operation. Please feel free to contact us if there is any questions.

Product Details:
.Material: Metal
.Brand: CISON
.Model: L4175-OHV
.Form: Finished Version
.Type: Gasoline Interal Combustion Engine
.Valve Mechanism: OHV
.Displacement: 17.5CC
.Cylinder: L4
.Stroke: Four Strokes
.Cylinder Diameter: 16.7mm
.Stroke: 14mm
.RPM: 1500-8000rpm
.Power: About 2.5ps
.Cooling Mode: Water Cooling
..Lubrication Method: Independent Lubrication System
.Starting Mode: Electronic Starting
.Ignition Method: CDI Igniter for CISON L4 Engine (Not Included)
.Spark Plug Type: 1/4-32 Thread ME8 Spark Plug (Not Included)
.Starting Power: 6-14V, 12V Li battery is recommended (Not Included)
.Fuel Type: 92# Gasoline and Above
.Engine Oil Type: 2T Engine Oil, 10W50 Engine Oil is recommended
.Cylinder Dimensions: 96*43mm
.Product Dimensions: 13.5 x 10.24 x 10.5cm
.Product Weight: 1300g
.Package Dimensions: 20 x 20 x 20cm
.Package Weight: 2200g

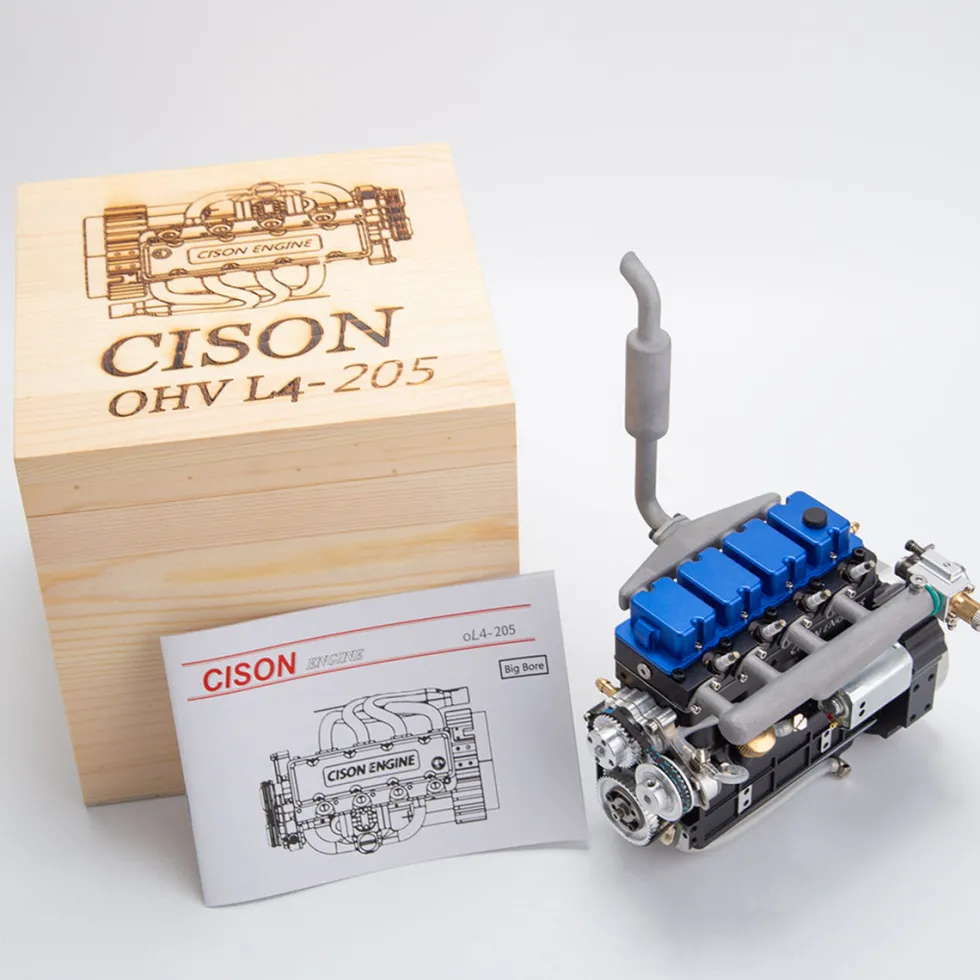

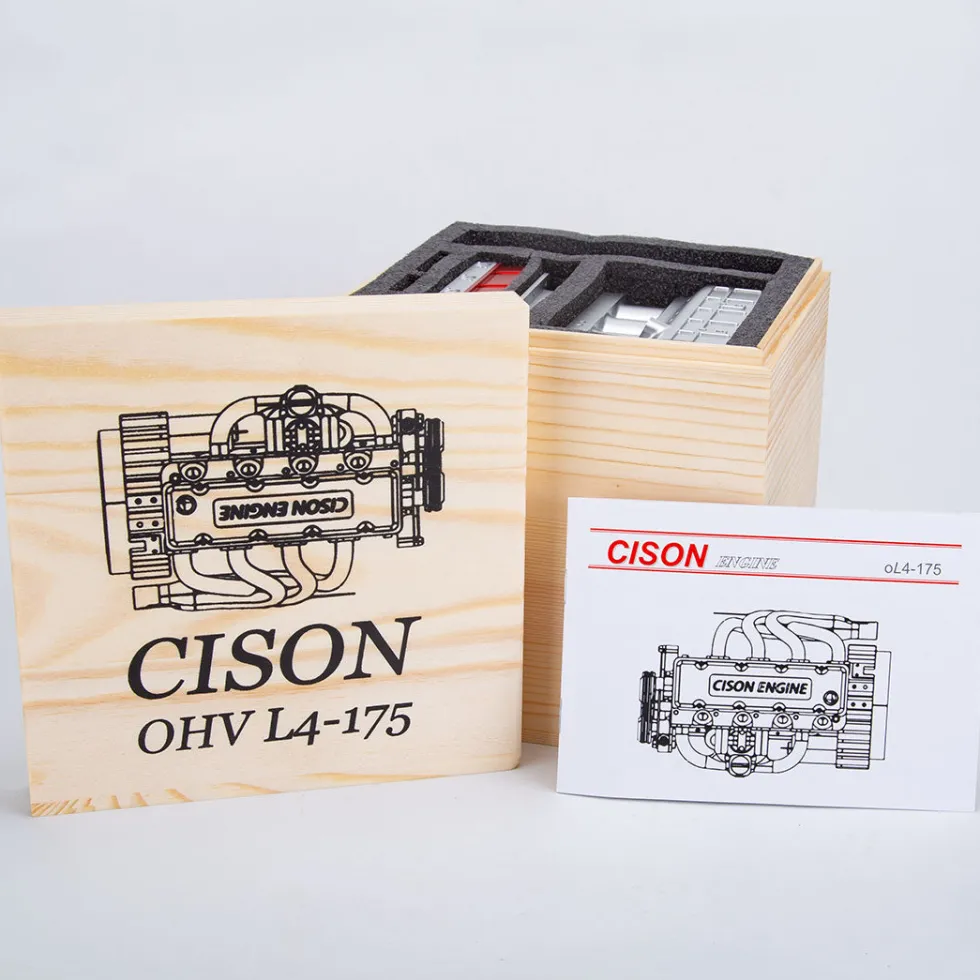

.Packing: Wooden/ Bamboo Box

Package List:
1 x CISON OHV L4 Engine
1 x Instructions
