CISON FG-VT157 15.7cc V-Twin Shovelhead Engine with Upgrade Kick Starter Kit and Base – One Key Start

CISON FG-VT157 15.7cc V-Twin Shovelhead Engine with Upgrade Kick Starter Kit and Base – One Key Start

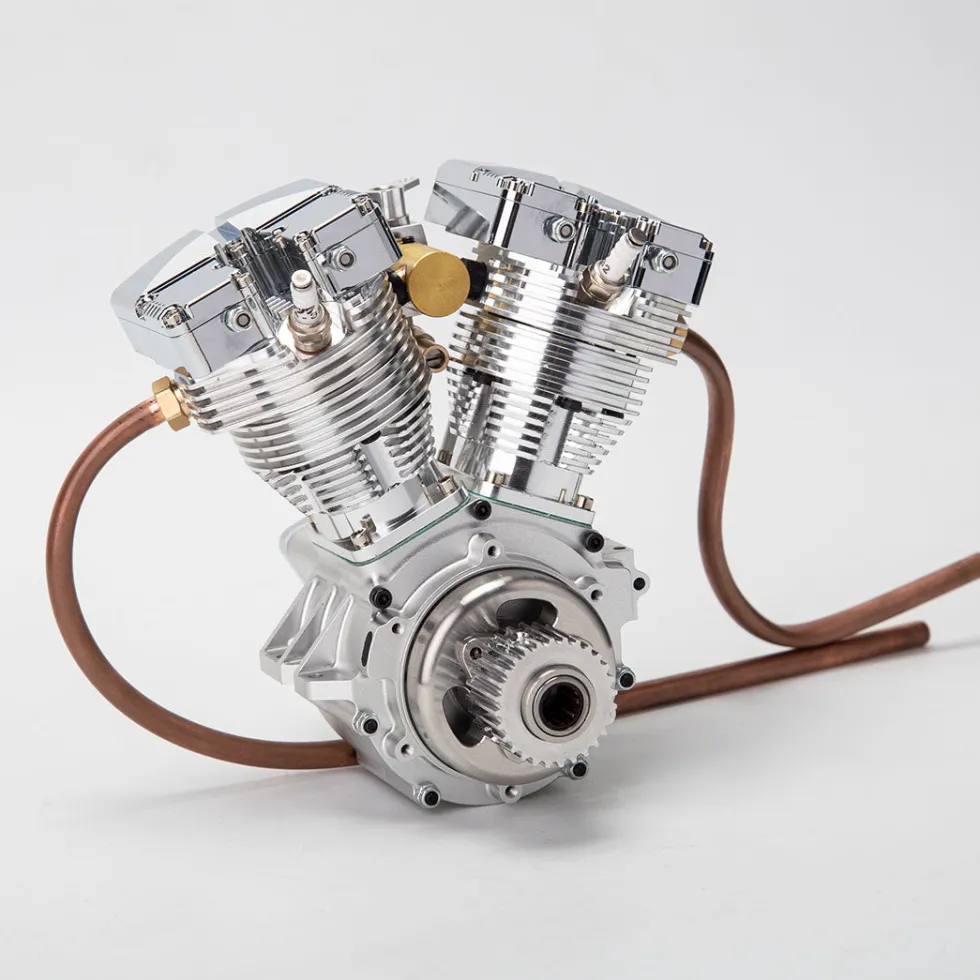

CISON V2 Shovelhead Engine with Original upgrade parts which includes V2 engine, metal base, CDI igniter, Spark plug, copper exhaust pipe, kick starter, flywheel and clutch.

One click buy V2 engine and all parts needed here!

Package List:
1 x V2 Engine
2 x Spark Plug
1 x CDI Igniter
2 x Copper Exhaust Pipe
1 x Manual

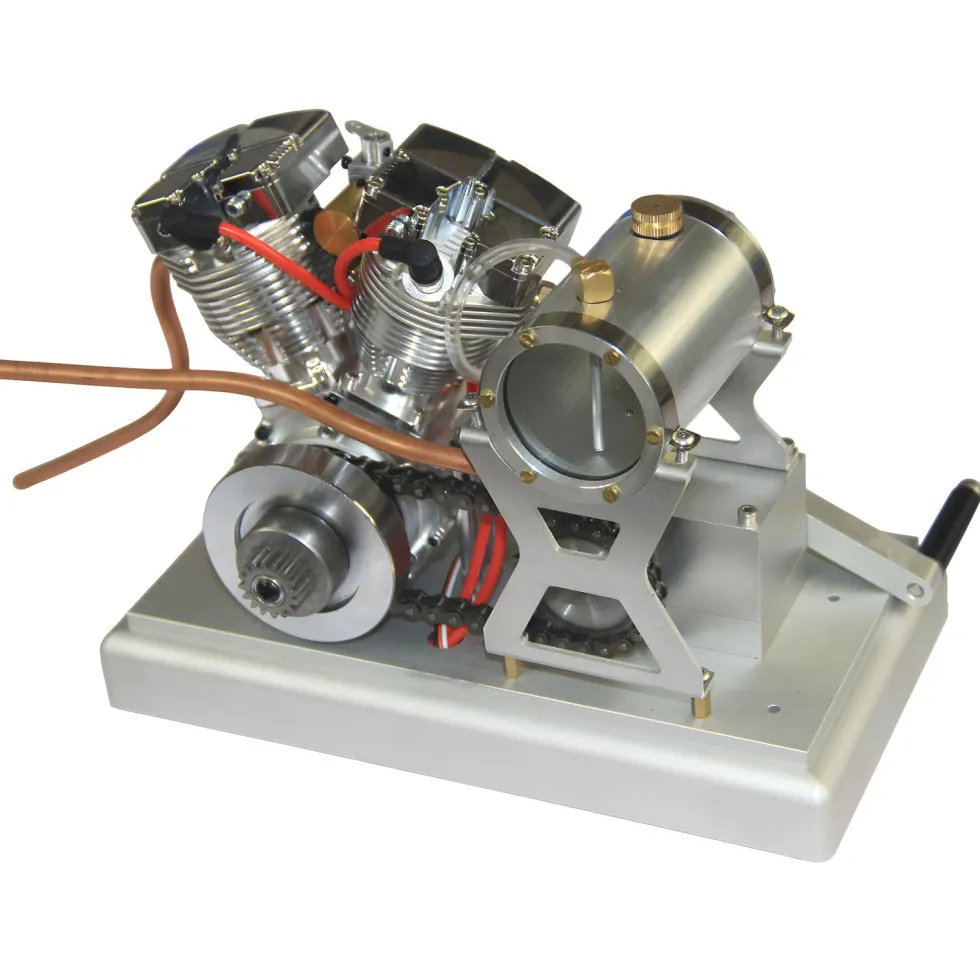

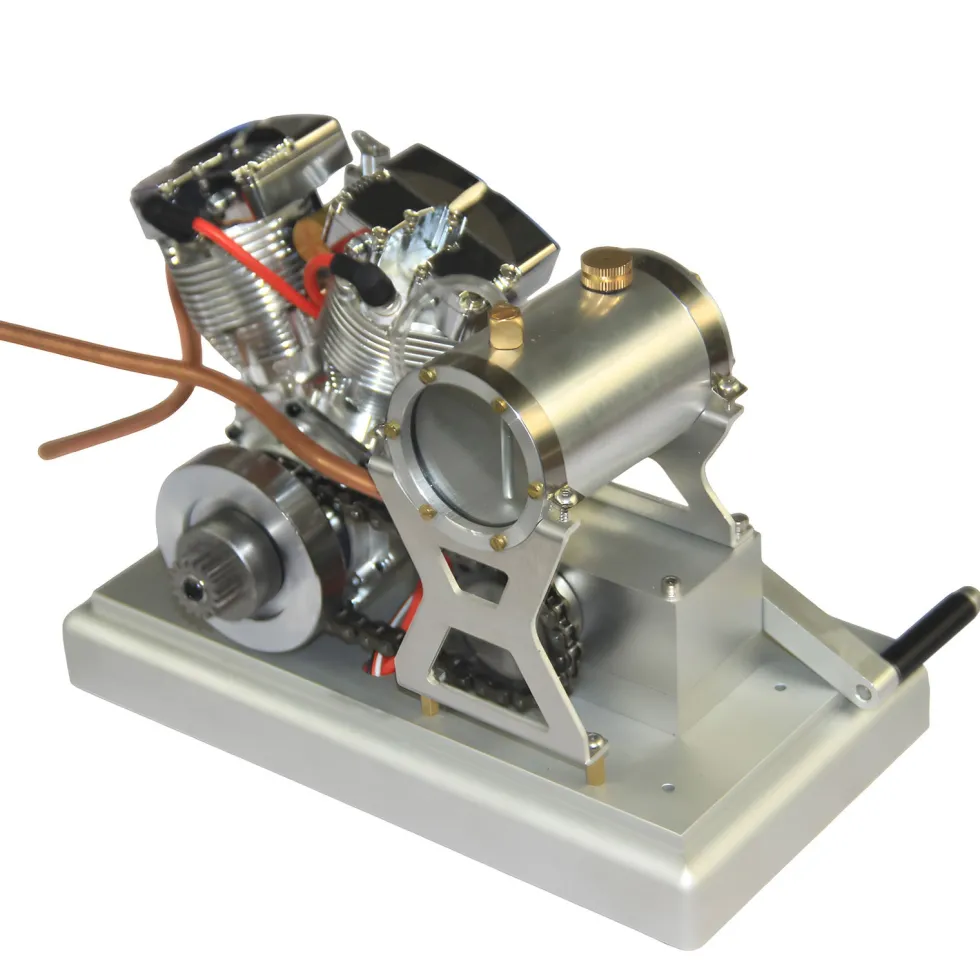

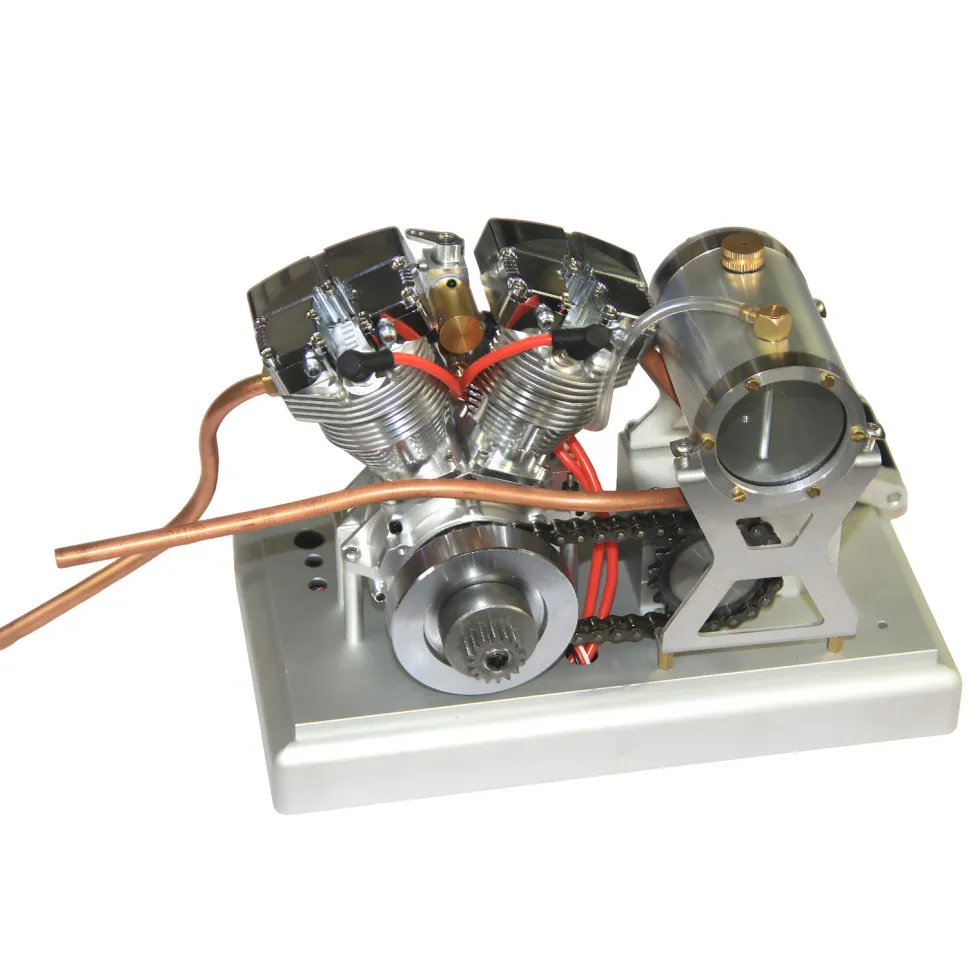

1 x Baseplate Set

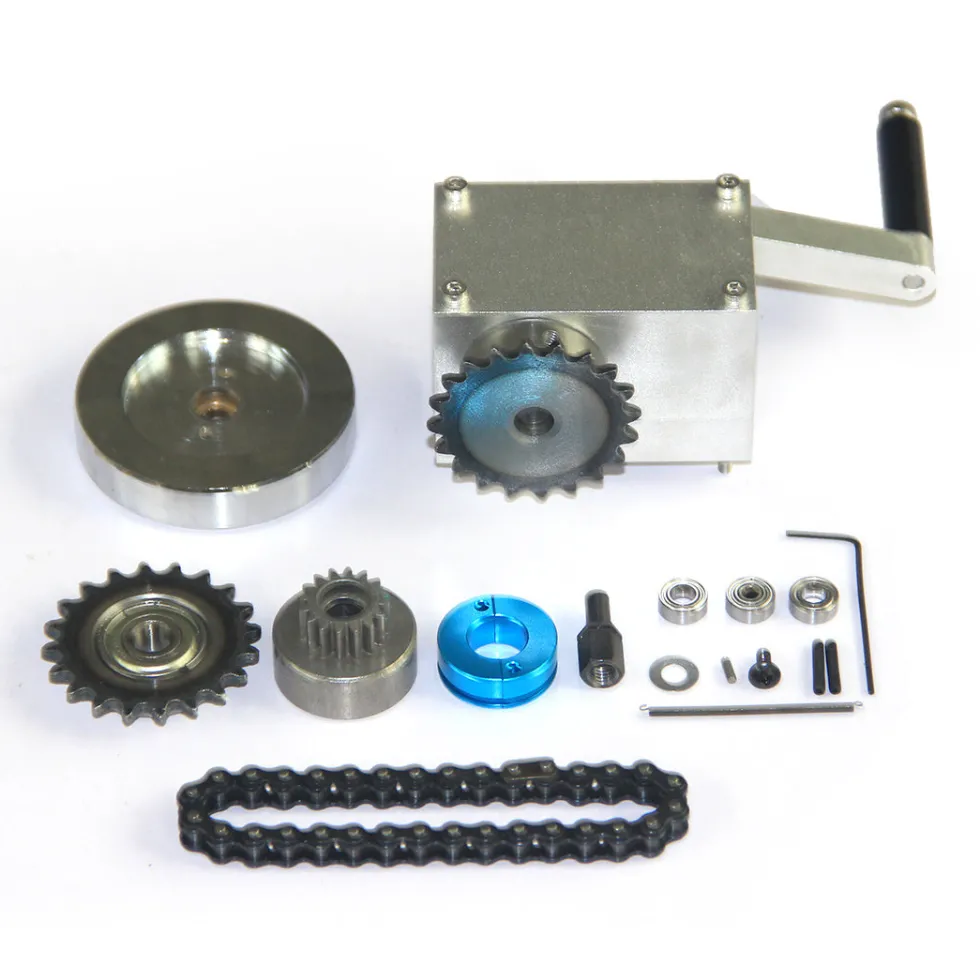

1x Kick Starter
1x Flywheel
1x Clutch

Let’s learn more about the story from CISON’s CEO:
In September 2021, we launched the first FG-VT9 V2 engine, which was warmly received and highly praised by engine model lovers once released. Subsequently, sincere suggestions and strong expectations for the second V2 engine we have received from many model fans. So we decided to launch the new FG-VT157 V2 engine in November 2022. Add the FG-VT157 to the V2 series to make them an era mark that reappears in the history of motorcycle engines.
Continuing the style of the FG-VT9, the FG-VT157 V2 engine is designed with the basically same dimensions and some parts available for common use. However, we also put in some new design elements to make it unique, such as the classic & high simulated appearance, larger piston and cylinder liner, spherical combustion chamber, V-shaped angle valve, improved carburetor and so on.

Know More About This CISON V2 Engine:

RTR Version:
The v2 engine is pre-assembled and comes with spark plug and CDI igniter, that is to say, it is ready to run. If you want a kit version, please tell us your choice, but it requires a strong hand on ability to handle and may be a little bit late for shippment.

Highly Impressive Simulation:

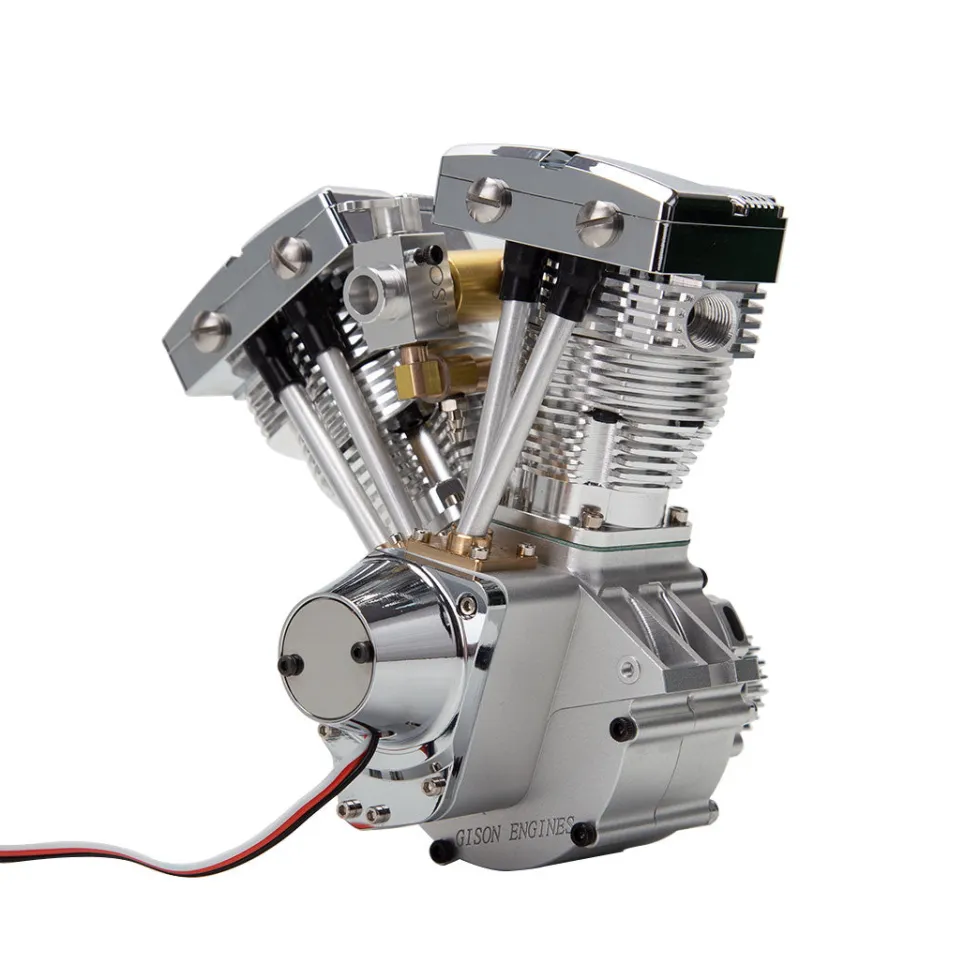

The authentic rocker cover on the classic cylinder head and gearbox cover allows the model to restore the original charm and get closer to the motorcycle engine in real life, representing the most remarkable characteristics of a motorcycle in an era.

Compatible with RC Vehicles:
Features larger cylinder diameter and longer stroke for superior displacement, along with stronger connecting rods to provide superb torque protection when installed on the vehicles.

Reliable Structure:
Adopts an OHV valve mechanism, a 45° angle between two cylinders, a realistic hemispherical combustion chamber, an inlet rocker arm with a V-shaped angle as well as a separable rocker arm cover chamber for easier to observe and adjust the engine.

Sophisticated Manufacture:
Treated with aluminum CNC precision processing on the body, along with anodic oxidation and sand blast on the surface for a pleasing mechanical artwork with texture and aesthetics.

Stable & High Performance:
Equipped with a large-area heat sink for incredible air cooling effects, the engine is able to operate stably keeping low speed and supports the use of different fuels for more balanced burning due to the optimized carburetor.

Ideal Gift Choice:
Whether used as an excellent desktop collection or applied to an RC model car, the model makes one of the best engines for collectors, which is not inferior at all.

Warm Tips:
The assembled engine with a spark plug and CDI igniter is ready to run, but the fixed engine base and batteries are not included. Please operate the engine according to the instructions to avoid damage because of improper operation. If there is any questions about the product, please feel free to contact us !

Product Details:
.Material: Metal
.Brand: CISON
.Item No: FG-VT157
.Form: Ready to Run
.Type: Gasoline Engine
.Valve Mechanism: OHV
.Displacement: 15.7cc
.Cylinder: V-Twin
.Stroke: Four Strokes
.Cylinder Diameter: 20mm
.Stroke: 25mm
.Angle: 45°
.Speed: 1500-8000 rpm
.Power: 0.8 ps
.Cooling Mode: Air Cooling
.Lubrication Method: Mix Lubrication (Gasoline/Engine Oil =30/1)
.Starting Mode: Electronic Drill Starting
.Ignition Method: CDI Igniter (Included)
.Spark Plug Type: 1/4-32 Thread ME8 Spark Plug (Including 2)
.Starting Power: 6-7.4V Battery (Not Included)
.Fuel Type: 92# Gasoline and Above
.Engine Oil Type: 2T Engine Oil
.Product Dimensions: 10.5 x 6.5 x 12.1cm
.Product Weight: 1500g
.Package Dimensions: 20 x 20 x 20cm
.Package Weight: 1700g
.Packing: Graphic Carton
