16 Cylinder Stirling Engine with Quartz Tube Collection Gift for Engineer-Upgrade

16 Cylinder Stirling Engine Model Gas Powered Engine with Quartz Tube Collection Gift for Engineer

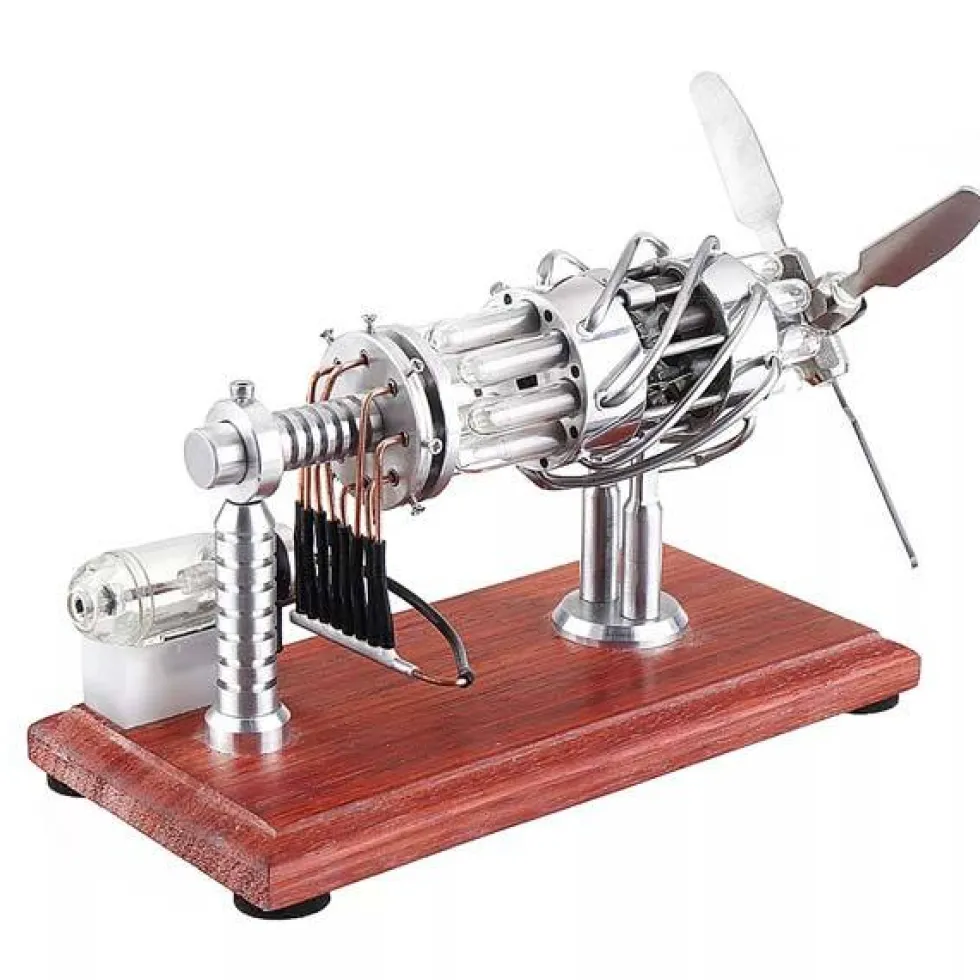

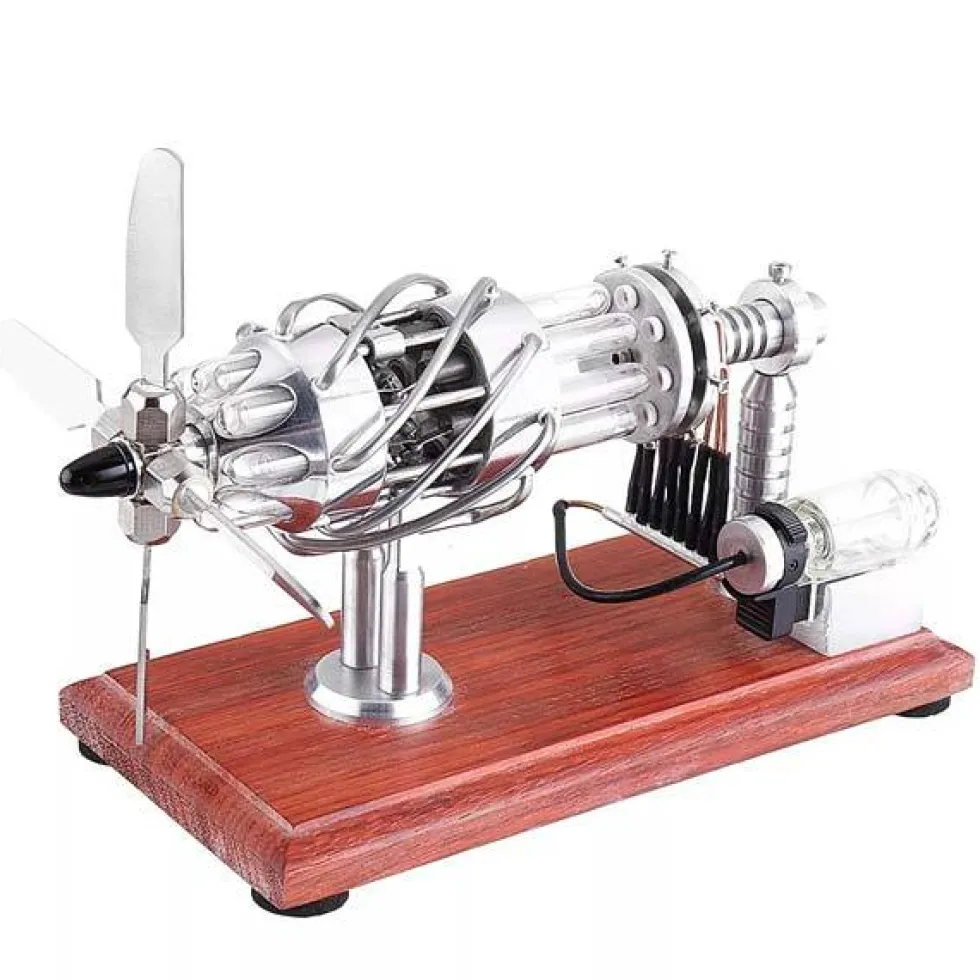

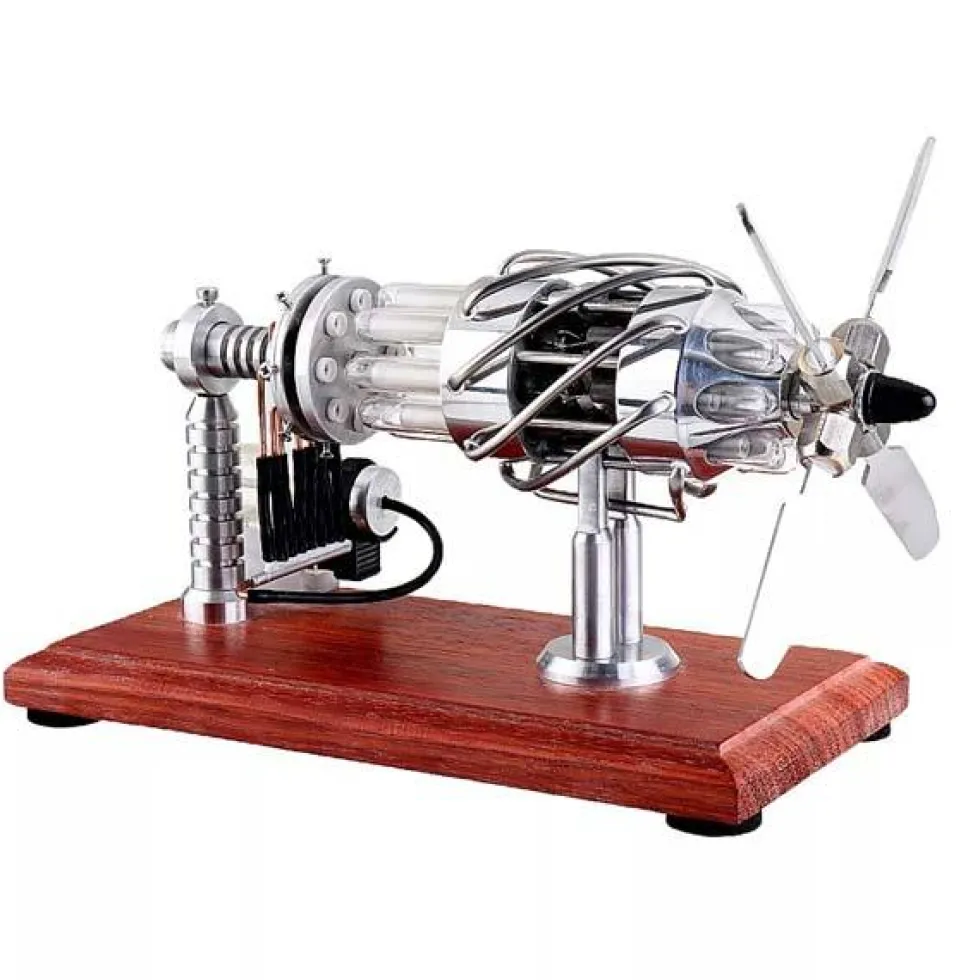

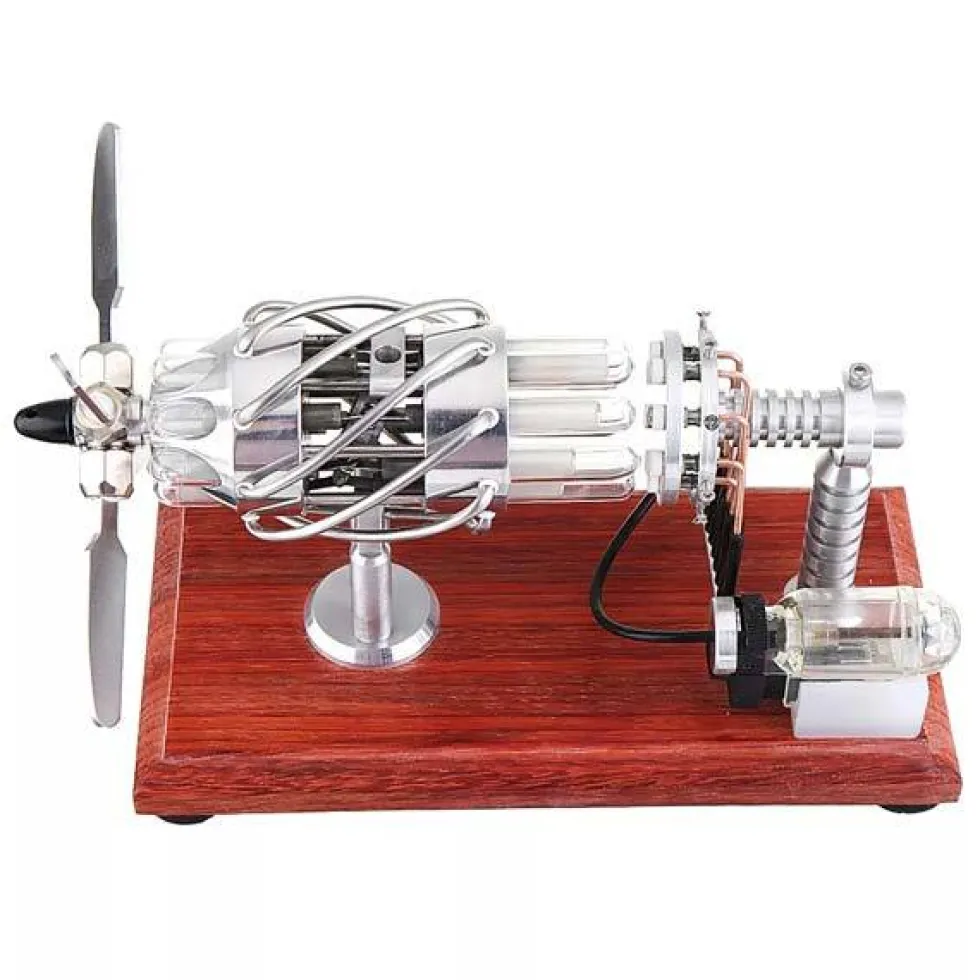

Enginediy 16 cylinder Stirling engine consists of 8 heating tube & 8 cooling tube. The Stirling engine model is a heat engine that operates by cyclic compression and expansion of air or other gas, the working fluid, at different temperature levels such that there is a net conversion of heat energy to mechanical work.The engine is like a steam engine in that all of the engine’s heat flows in and out through the engine wall.

Features:

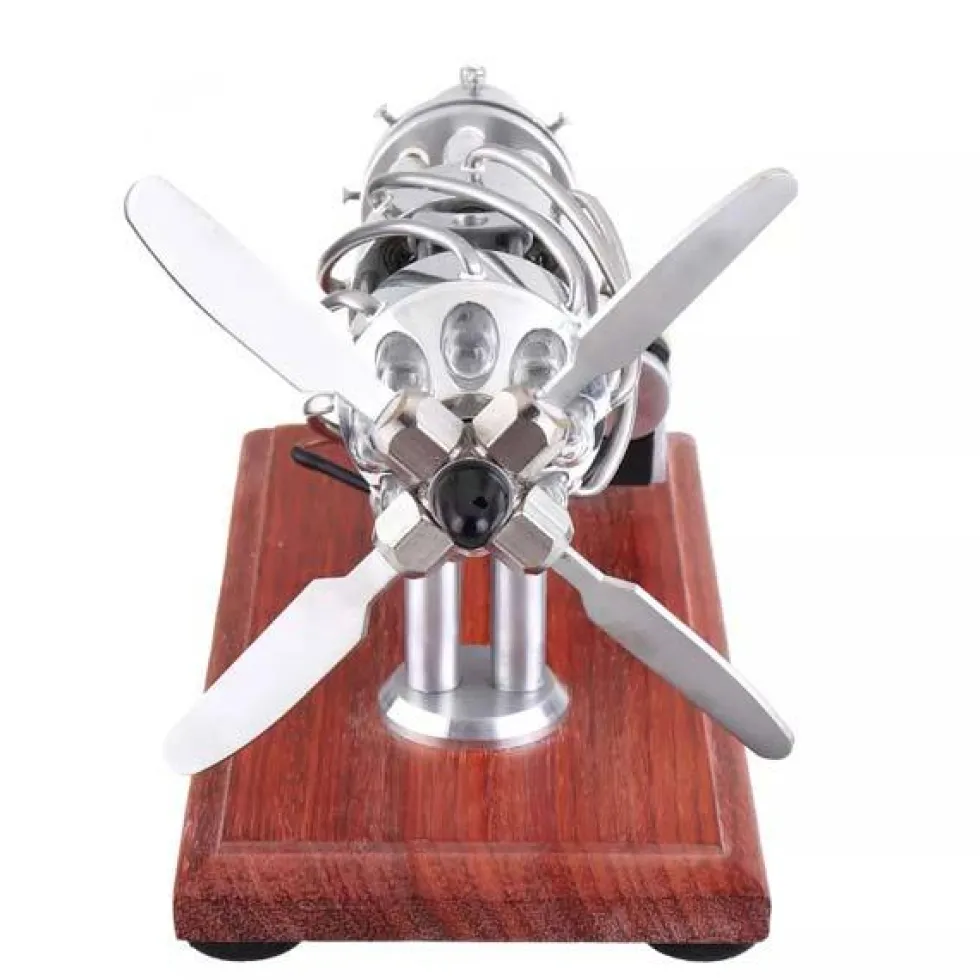

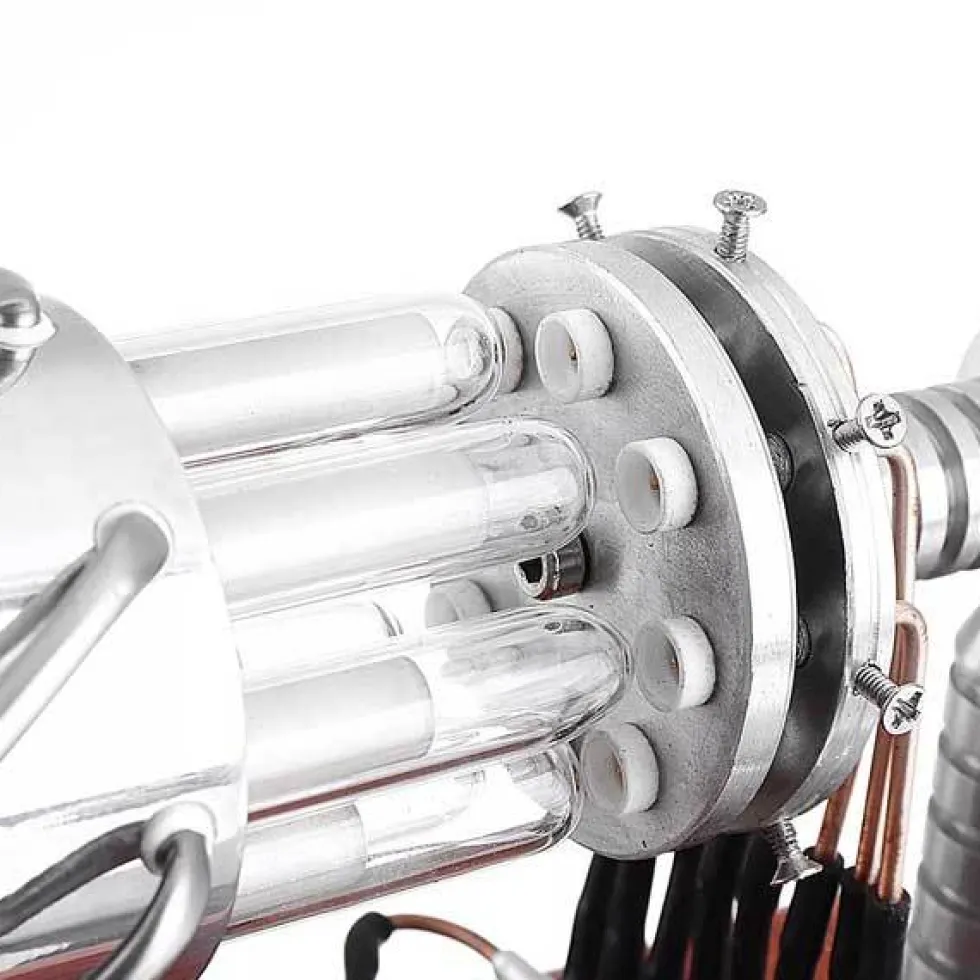

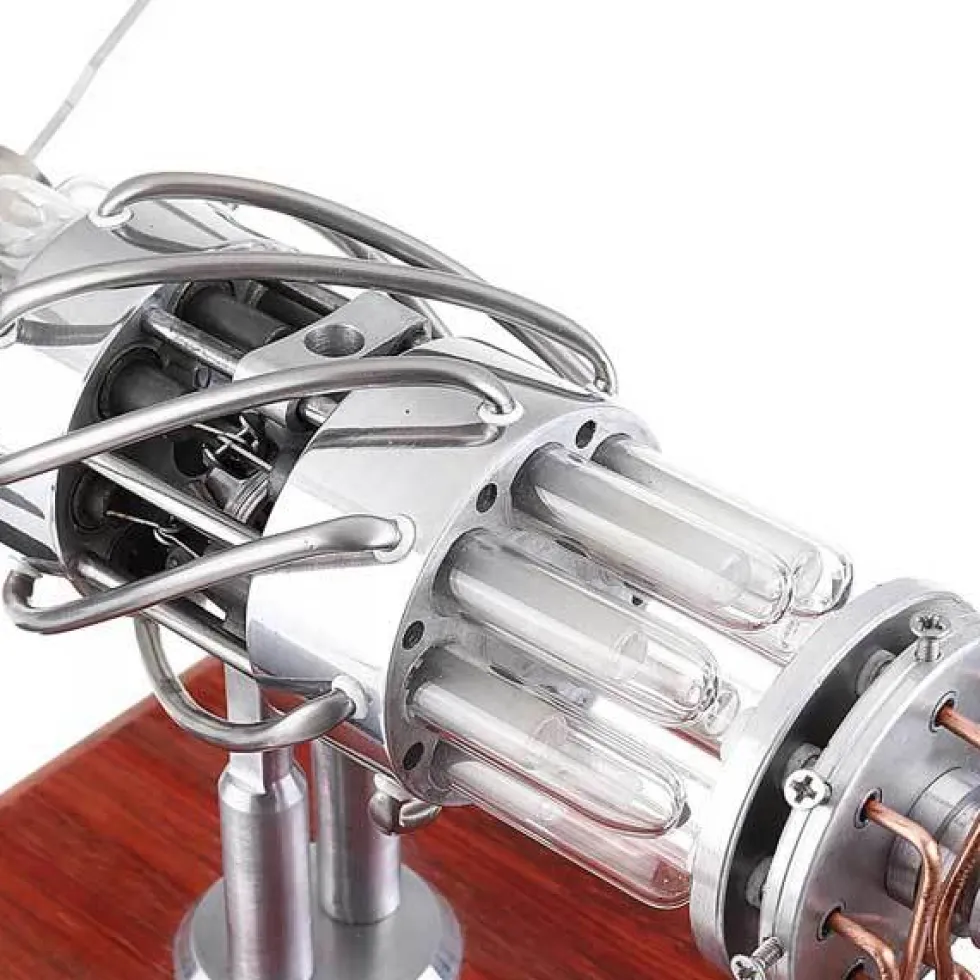

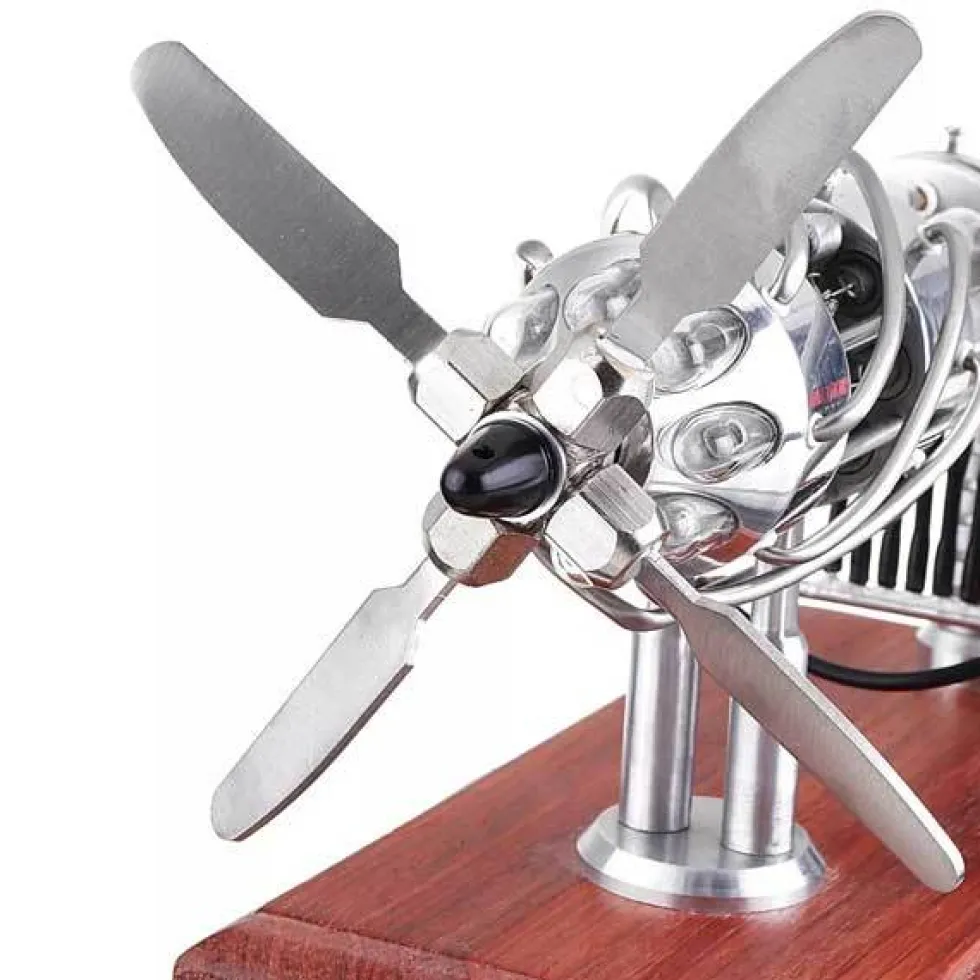

1. 16 CYLINDER STIRLING ENGINE–—The engine consists of 8 hot cylinders and 8 cold cylinders. Metal propeller on the front for quick rotation, with solid wood base, can be operated for a long time without damage. Besides, the tube has been upgrade to Quartz Glass, which will be much easy for operation.
2. STRONG PERFORMANCE–—As an external combustion engine, it avoids the explosion of traditional internal combustion engines to achieve high efficiency, low noise, low pollution and low operating costs.

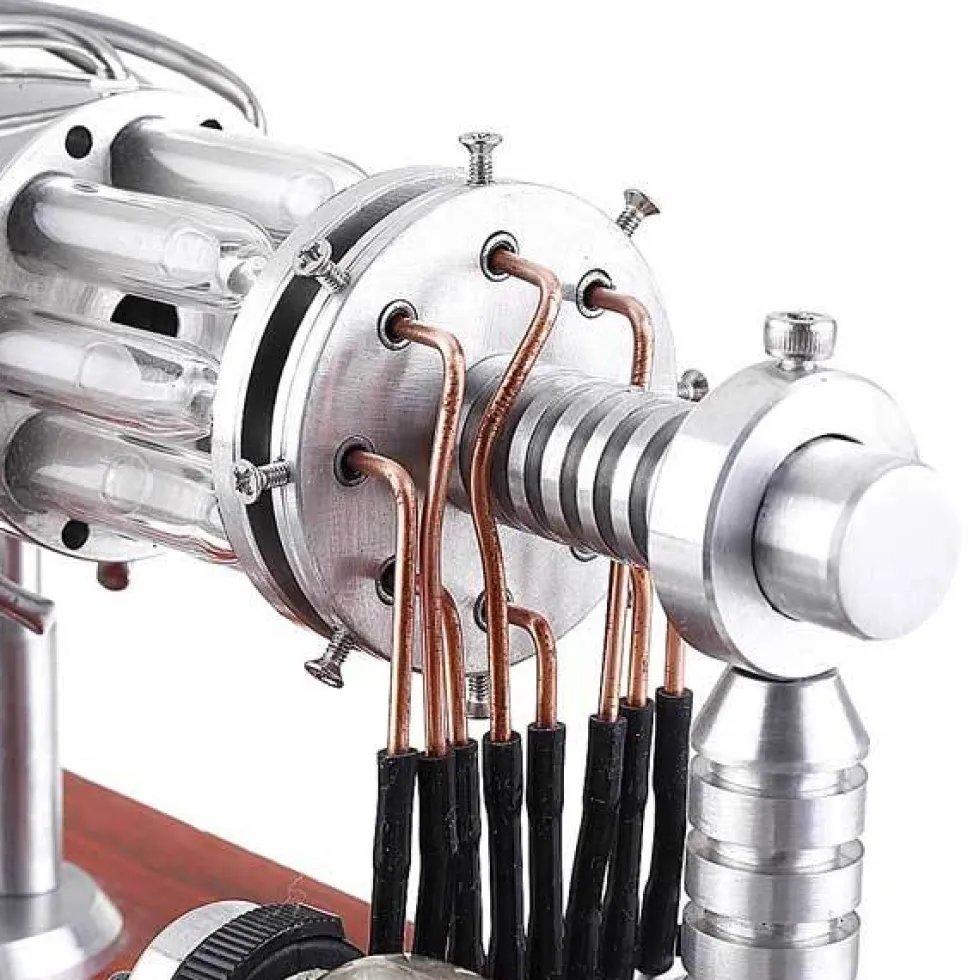

3. UNIQUE SMART DESIGN–—A floating bead connects 8 cylinders and their pistons. It is driven by the motor power of hot air. It is hard to believe that it is an engine model, super cool, 8 cylinders, 8 heating tubes, 8 fire exits ignite the flame onto the stainless steel heating tube, cool.
4. HIGH-TECH ORNAMENT–—Aerodynamics has rich physics knowledge, intuitive engine principle, educational toys, teaching experimental equipment can effectively cultivate children’s learning interest, can also be a high end collection gift for engineers or engine lovers.
5. PRIORITY GIFT OPTION FOR MANY APPLICATIONS—-It is an amazing and fantastic product at this price. Its elegant gift package makes it spruce up and presentable. It has a wide range of application as, great gift for Kids’ science project, Physical/mechanical learning, teacher’s Demo props on the class, birthday gift for friends, families, parents, kids, etc. Many of our customers come from school, colleague, etc.

Description:
Name : 16 Cylinder Stirling Engine Model —Quartz (Glass) Version

Material: Stainless Steel + Solid Wood + Quartz Glass
Size: 21.5x10x16.5cm / 8.46”x3.9”x6.49”
Style:16 Cylinder(8 heating tube+8 cooling tube)
Packing: Carton Box

Using Instructions:

1. The 16 cylinder Stirling engine model switches the flywheel by hand in the horizontal position to see if it is smooth. If there is strong sensation, check if the connecting rod is normal, whether there is oil cylinder and dust. If it so, please use toilet paper to erase it. Switching the flywheel feels that the pressure rebound in the cylinder is normal, the cylinder is sealed .

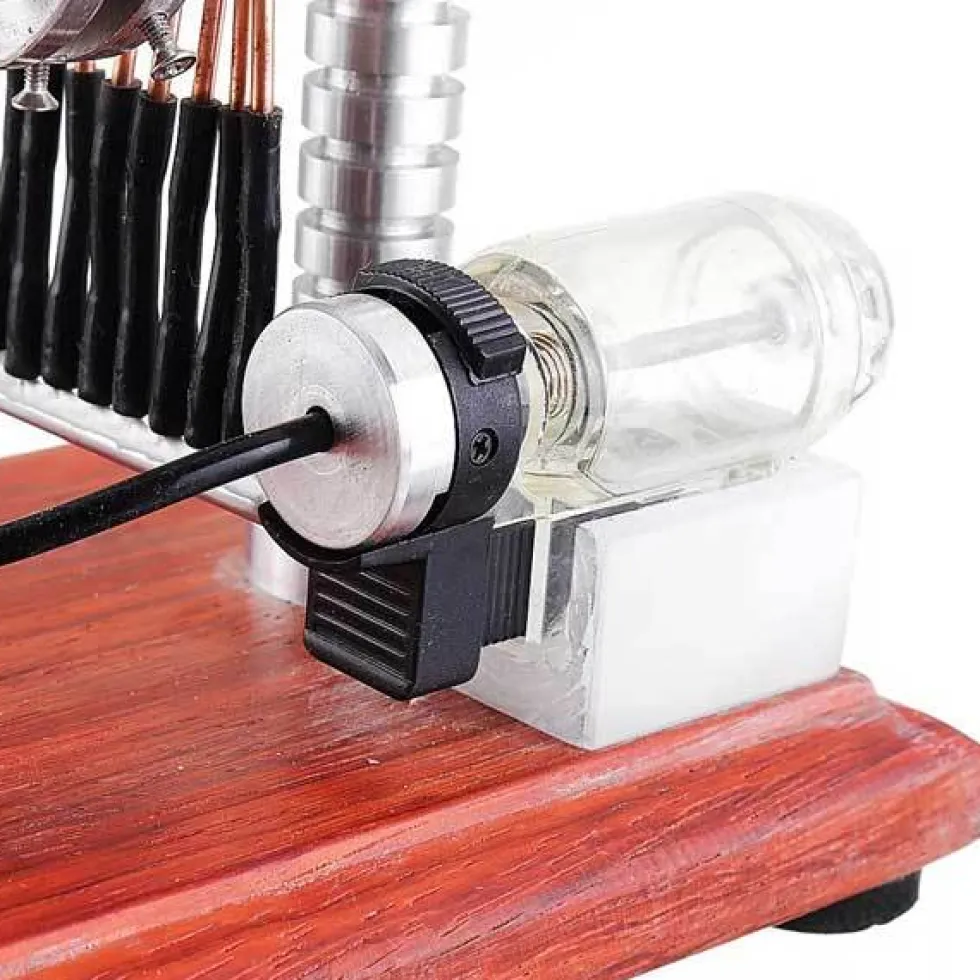

2. Add the fuel to the tank (The fuel for this engine is butane gas, which is not included into the package, as this may cause trouble for shipment).
3. Press the button to the fuel tank, dial the above valve, ignite, wait for about 30 seconds to heat .
4. Give propeller a gentle rotate, then it will starts running. ( There is a knob to asjust the firepower in the fuel tank, but for this model, we don’t recommend to do the adjustment, please notice! )
5. Close the valve, turn off the fire, be careful, be sure to wait until the natural cooling touch the heating cylinder, so as not to burn.

Tips:

1. After using it, please let the engine natural cool. Don’t touch the burned tube or the metal to avoid scald.
2. The 16 Cylinder Stirling engine model is suit for people over 14 years old. Operate under adults’ supervision.

Packing Content:
1 Set x 16 Cylinder Stirling Engine Model
